Crusader Waterlord efficient mine dewatering hose-IrriFinder

Mine Dewatering Hose

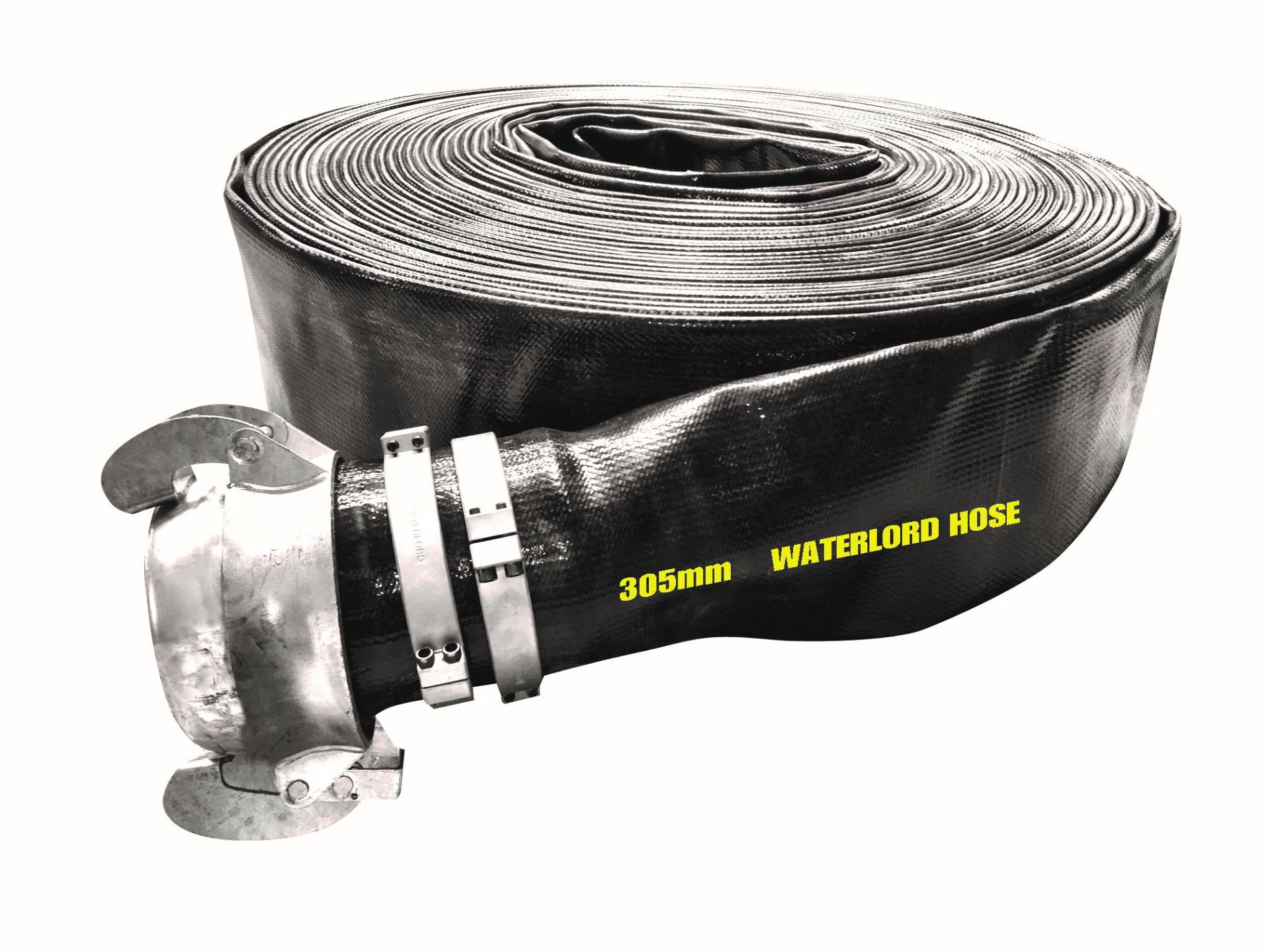

Waterlord^® is a high quality hose for pumping water out and across mine sites; suitable for many industrial pumping applications when high pressure is required. Reel systems are available for ease of handling.

Waterlord^® is manufactured by weaving a textile reinforcement of high-tensile polyester, then encasing and lining it with abrasion-resistant polyurethane. The tough cover protects the hose against damage from most rocks and soils; extra protection is required if used on a rough terrain.

Waterlord^® is able to withstand high pressures; can be easily used to pump up high walls from deep inside a mine. Flanges or couplings are available, which can easily connect to existing pipelines.

Mine Dewatering Efficiency

Mine dewatering is a key activity for many mining contractors. We manufacture the Waterlord^® hose which has the ability to remove large volumes of water from a mine quickly and safely. Waterlord^® is a heavy-duty and reliable layflat mine dewatering hose constructed by weaving a tight polyester fabric and using TPU (thermoplastic polyurethane) thru-the-weave extrusion. It is a continuous length hose that can handle high-working pressure and tough abrasion so is suitable on rugged terrain.

Waterlord^® mine dewatering hose is reliable, compact, easy to handle and easy to deploy. Short lengths can be unrolled with little manpower. However, for long runs up mine walls and across pits, hose reel systems are required. These systems are used to rapidly deploy hose so that the water can be pumped out of the pit soon after the rains hit.

Large choice of diameters and length

The Waterlord^® mine dewatering hose comes in a range of diameters, from 40mm (1.5”) up to 305mm (12"), capable of achieving over 500 litres per second!. Each roll is fully tested prior to despatch and is available in continuous length of up to 250m.

Long lasting and high quality products

All hose is fully manufactured at our Australian factory under stringent quality standards. Each length is individually tested and comes with a 12-month warranty.

Waterlord^® Features:

Suitable for mine dewatering
Reel systems for large diameter/ long length
Easy to move and transport
High pressure for deep pits
UV resistant
Quick connect coupling available
Abrasion resistant against mixed terrain

It is mainly used for:

Mine dewatering
Sewerage bypass
Industrial high pressure pumping applications
Rapid deployment

crusader-flexidrag-layflat-hose-technical

Technical Specifications

Inside diameter mm	Inside diameter inches	Working Pressure Bar	Burst Pressure Bar	Burst PressurePSI	Bend Radius @ 60 psi (m)	Tensile Load Tonnes	Avg. Single Wall Thickness(mm)	Weight per Metre(kg)
40	1½”	27	54	783	1.0	3	3.0	0.50
51	2"	27	54	783	1.0	3.5	3.0	0.60
76	3"	27	54	783	1.5	8	3.8	0.90
76HP	3”	40	80	1160	1.6	10	4.5	1.50
102	4"	25	50	725	2.0	10	4.0	1.50
102HP	4"	40	80	1160	2.1	15	5.0	2.30
152	6”	28	56	812	3.1	16	4.8	3.00
152HP	6"	35	70	1015	3.2	25	6.5	3.40
203	8"	15	30	435	3.5	22	4.5	3.50
254	10”	15	30	435	4.0	30	5.0	4.00
305	12"	14	28	406	4.5	31	5.0	4.50

*HP: High Pressure
