Baccara Solenoid Controlled Hydraulic Control Valve-IrriFinder

Armas 600 Series Baccara Solenoid Controlled Hydraulic Control Valve

Applications

Irrigation
Industrial
Local operation of hydraulic valve by a manual command.

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

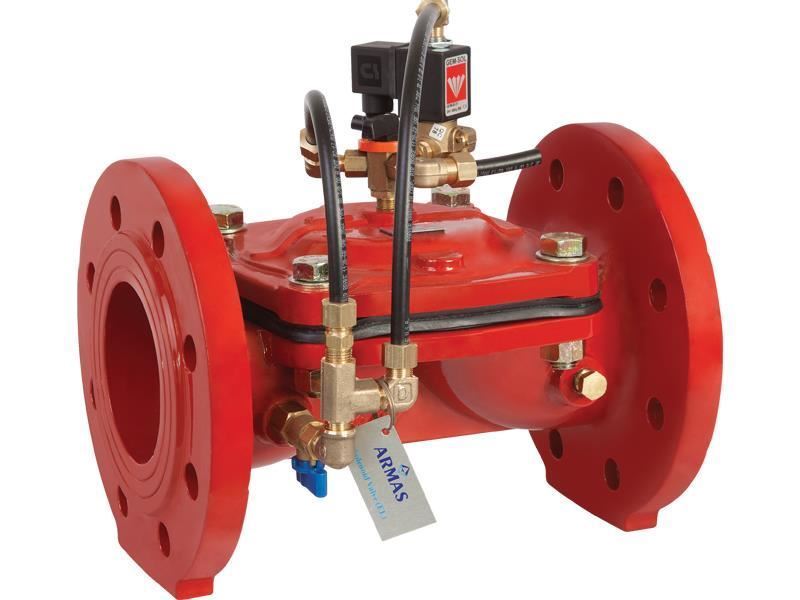

ARMAS 600 Series Solenoid Controlled Hydraulic Control Valve

Armas Solenoid Controlled Hydraulic Control Valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built-in 3/2-way solenoid pilot valves controlled remotely with electric signal. Electric signal for solenoid pilot valves is ensured by means of a control device, time relay, main switch and PLC control units etc.

Opening/Closing process may be realized easily thanks to manual control on solenoid pilot valve. Depending on desire, 24V AC 50Hz/60Hz or 12V DC, 9V DCLATCH and 12V DC latch normally open (N.O.) or normally closed (N.C.) solenoid coils may be used on main valve.

COMPONENTS:

Ball Valve
In-line Finger Filter
Solenoid Pilot Valve
3-Way Selector Valve
Plug

ARMAS 600 Series Solenoid Controlled Hydraulic Control Valve Sample Application
