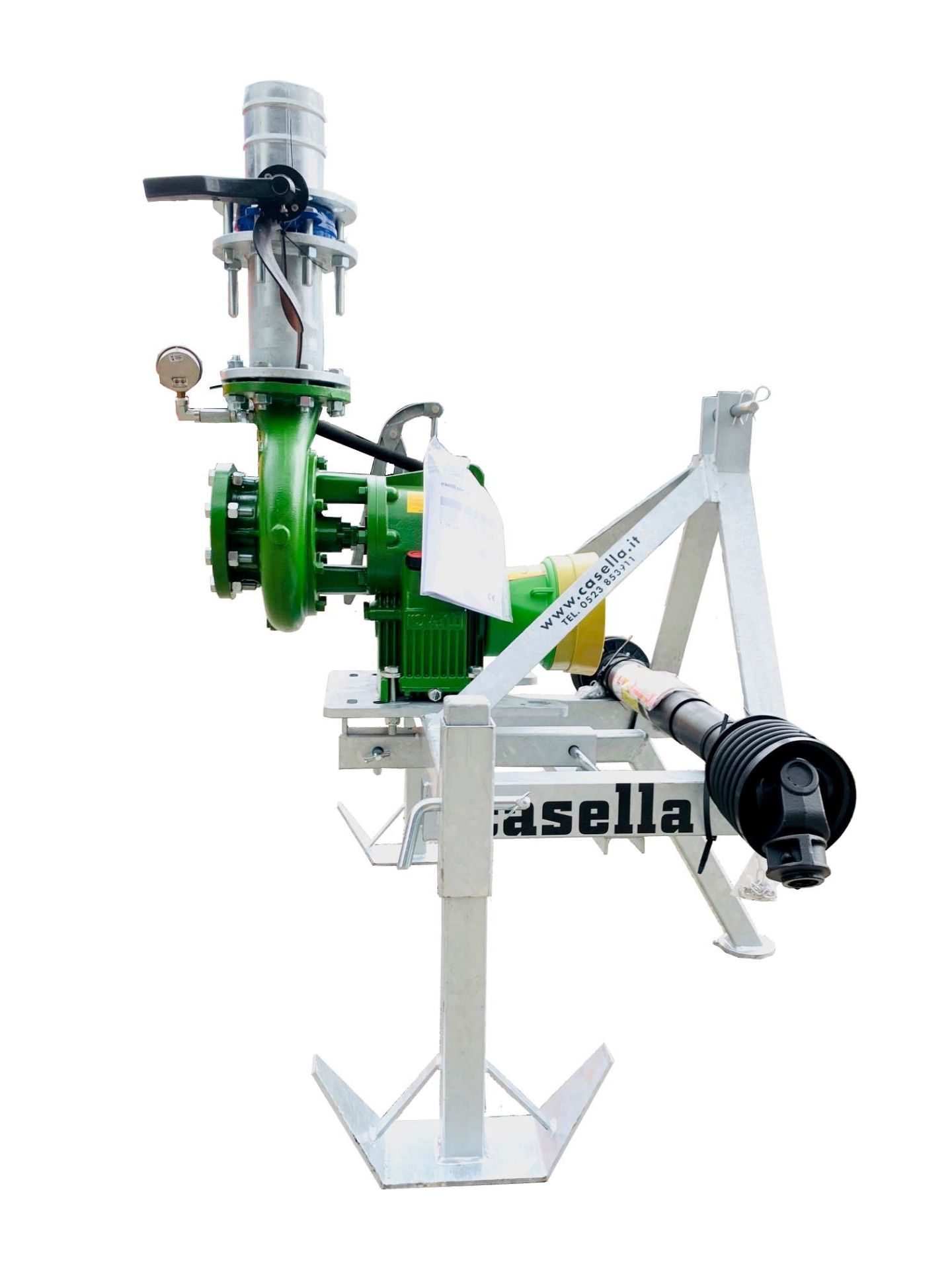

    Rovatti T3-100AE PTO Pump Set

    Manufacturer: Casella
    Be the first to review this product

    Best price guaranteed ROVATTI PTO Pump, it can deliver 120 m3/h water flow at 73 m head!

    Capacity
    :
    75-180 m³/h
    Head
    :
    78-57 m
    Working Temperature
    :
    -10 º C - + 140 º C
    Minimum Tractor Power
    :
    70 HP
    PTO RPM X Gear Ratio
    :
    500 x 6.38
    Inlet Range
    :
    100 mm (4")
    Outlet Range
    :
    100 mm (4")
    COMES WITH
    :
    Inlet/Outlet 100 mm (4") Fittings, Pressure Gauge, Butterfly Valve, PTO Drive Shaft, Hot Dip Galvanised 3-Point Linkage Frame
    Manufacturer part number: Rovatti-T3-100AE

    Rovatti single-stage T3-100AE centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

    Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Comes with a 3-Point linkage frame (hot dip galvanised), PTO drive shaft, 4" (100 mm) inlet/outlet fittings, pressure gauge, and butterfly valve. This pump is highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 180 m3/h and heads up to 78 m.

    All Rovatti PTO tractor pumps have a unique water circulation cooling system to ensure the gearbox remains cool at all times, even after prolonged operation. This allows greater safety and longer life of the gearing, even if the pump is working in challenging environmental conditions.

    Features
    ¦ Robust cast iron construction
    ¦ Equipped with tested overgear water circulation cooling device
    ¦ Available both with mechanical seal or packed gland
    ¦ Application flexibility
    ¦ Available with trolleys and threepoint linkage



    Download Rovatti T Series PTO Pump Technical Spacifications



    Rovatti T3-100AE PTO Pump Technical Specifications
    Pump Model Min. Tractor
    Power (HP)    		 PTO min-1
    X Gear ratio    		 Inlet X Outlet
    (mm)    		 m³/h 75 90 105 120 150 180
    l/min 1250 1500 1750 2000 2500 3000
    l/s 20.8 25 29.1 33.3 41.6 50

    T3-100AE

    		 70 500 x 6.38 100 X 100 Head (m) 78 77 75.5 73 66.3 57.3



    Rovatti T-TK Series PTO performance table

    Rovatti PTO Pump Cooling System

    Rovatti-pto-pump-trolleys
