Rovatti Single-Stage T Series Clean Water PTO Pumps-IrriFinder

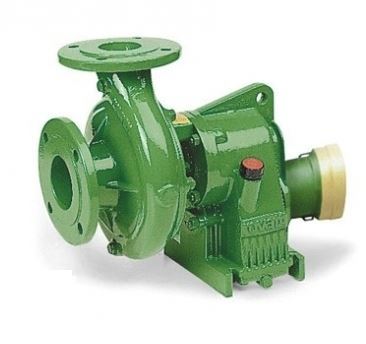

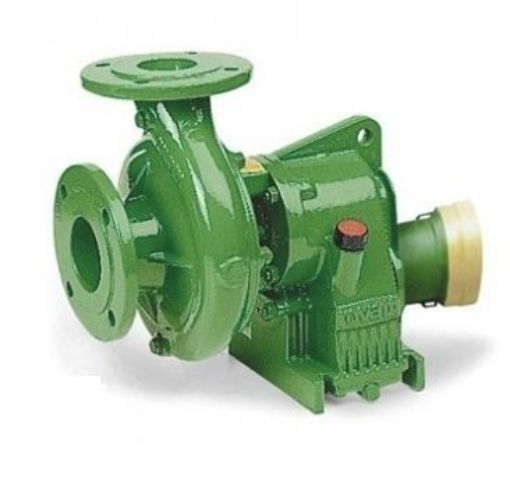

Rovatti single-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Also available with a 3 point linkage or on a 2 wheeled trolley. These pumps are highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 90 m³/h and heads up to 127 m.

Features
¦ Robust cast iron construction
¦ Equipped with tested overgear water circulation cooling device
¦ Available both with mechanical seal or packed gland
¦ Application flexibility
¦ Available with trolleys and threepoint linkage

Download Rovatti T Series PTO Pump Technical Spacifications

Rovatti T Series Technical Specifications

Pump Model	Min. Tractor Power (HP)	PTO min^-1 X Gear ratio	Inlet X Outlet (mm)	Gear Box Size	m³/h	12	15	18	21	24	27	30	36	42	48	54	60	75
					l/min	200	250	300	350	400	450	500	600	700	800	900	1000	1250
					l/s	3.3	4.1	5	5.8	6.6	7.5	8.3	10	11.6	13.3	15	16.6	20.8
T1-40E	25	550 x 7	65 X 40	1	Head (m)	105.5	105	104	103.5	102	101	98.5
T1-50E	35	545 x 7	65 X 50	1	Head (m)					91	91	91	90.3	89.3	88	86	84
T2-65E	45	545 x 6.43	65 X 50	2	Head (m)					111.8	111	110.4	107.8	103	95

Pump Model	Min. Tractor Power (HP)	PTO min^-1 X Gear ratio	Inlet X Outlet (mm)	Gear Box Size	m³/h	36	42	48	54	60	75	90	105	120
					l/min	600	700	800	900	1000	1250	1500	1750	2000
					l/s	10	11.6	13.3	15	16.6	20.8	25	29.1	33.3
T1-80E	35	545 x 6.43	80 X 65	1	Head (m)	68.7	68.2	68	67.5	67	65	61
T2-85E	55	545 x 6.43	80 X 65	2	Head (m)	84.2	84.3	84.2	84.2	84	83	81	77.5	72
T3-80AE	75	545 x 7	80 X 65	3	Head (m)	118.9	119	119	118.9	118.5	117.5	110

Rovatti T-TK Series PTO performance table

Rovatti-pto-pump-trolleys
