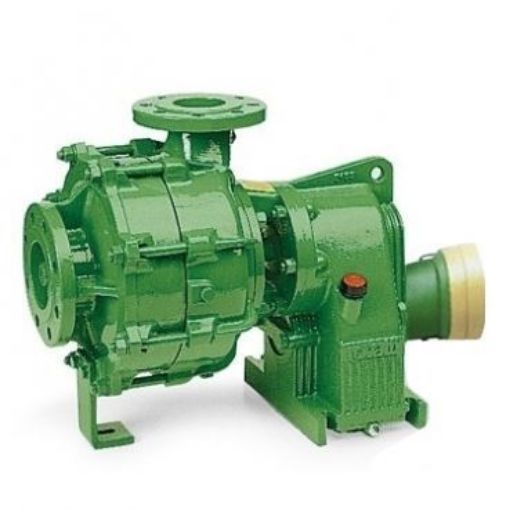

    Rovatti Multi Stage TK Series PTO Pumps

    Manufacturer: Rovatti Pompe
    Be the first to review this product

    Best price gurantee on wide range of world's leading pump brand Rovatti

    Capacity
    :
    12-30 m³/h
    Head
    :
    101-138.5 m
    Working Temperature
    :
    -10 º C - + 140 º C
    Minimum Tractor Power
    :
    30 HP
    PTO RPM X Gear Ratio
    :
    500x6.43
    Inlet Range
    :
    50 mm
    Outlet Range
    :
    40 mm
    Manufacturer part number: Rovatti-TK-PTO

    Rovatti multi-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

    Rovatti TK series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Also available with a 3 point linkage or on a 2 wheeled trolley. These pumps are highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 30 m3/h and heads up to 101 m.

    Features
    ¦ Robust cast iron construction
    ¦ Equipped with tested overgear water circulation cooling device
    ¦ Available both with mechanical seal or packed gland
    ¦ Packed gland version with Twinner System® (TK Europa)
    ¦ Available with trolleys and threepoint linkage



    Download Rovatti TK Series PTO Pump Technical Spacifications



    Rovatti TK Series Technical Specifications

    Pump Model Min. Tractor
    Power (HP)    		 PTO min-1
    X Gear ratio    		 Inlet X Outlet
    (mm)    		 Gear Box
    Size    		 m³/h 12 15 18 21 24 27 30 36 42 48 54 60 75
    l/min 200 250 300 350 400 450 500 600 700 800 900 1000 1250
    l/s 3.3 4.1 5 5.8 6.6 7.5 8.3 10 11.6 13.3 15 16.6 20.8

    T2K-50/3E

    		 30 500 x 6.43 50 X 40 2 Head (m) 138.5 136 131 125 118 110 101



    Rovatti T-TK Series PTO performance table

    Rovatti-pto-pump-trolleys
