Rovatti Mini Centrifugal T0F-50 Series PTO Pumps

Rovatti single-stage mini centrifugal or self-priming high pressure pumps

Overgear driven by cardan shaft of PTO (TOF-50A) or direct connection (TOF-50). Axial inlet and scroll outlet.

Rovatti T0F-50 series compact and portable user friendly tractor driven centrifugal pumps have been designed by ROVATTI to satisfy a wide range of applications, including water transfer, irrigation, wash-down and bowser/tank filling, etc....The selection of plastic suction and delivery fittings reduces the overall weight to allow for a rapid transfer between tractors for emergency pumping duties. Constructed from high specification cast-iron, each pump incorporates robustly engineered helical gears, oil bath lubrication of bearings and a quality mechanical seal to guarantee high efficiencies and a reliable and long maintenance free operational life. These pumps are fitted with the most modern devices and ensure an easy and reliable coupling to any type of tractor. Available both in centrifugal and self-priming centrifugal version. Each model is available both in cardan shaft driven version and with direct coupling to tractor p.t.o.

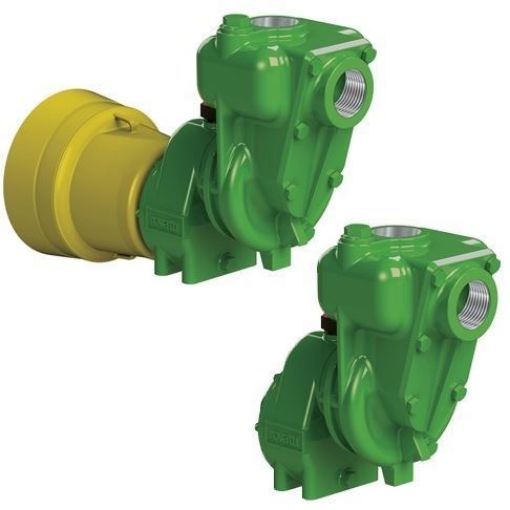

Rovatti T0F-50A mini compact and portable user friendly tractor driven pump with cardan shaft driven.

Rovatti T0F-50 mini compact and portable user friendly tractor driven pump with direct coupling to tractor p.t.o.

Features
¦ Light and compact pump
¦ Easy installation
¦ Application flexibility
¦ Available in self-priming execution
¦ Available with trolleys and threepoint linkage

Rovatti Mini Centrifugal and self-priming pto pumps

Rovatti T0A Mini PTO pump features 1

Rovatti-tof-50-performance-curve

Rovatti T0F-50 Series Technical Specifications

Pump Model	Min. Tractor Power (HP)	PTO min^-1 X Gear ratio	Inlet X Outlet (mm)	PTO R.P.M.	m³/h	6	12	18	21	24	27	30	33
					l/min	100	200	300	350	400	450	500	550
					l/s	1.6	3.3	5	5.8	6.6	7.5	8.3	9.1
T0-50 T0F-50 Centrifugal	15	1 : 7.77	50 X 50 (2" x 2")	540	Head (m)	53.5	53.2	52.5	52	51.2	50.5	48.7	47
	10			500	Head (m)	46	45.5	44.5	44	43	42	41	39.8
	7.5			450	Head (m)	37.2	36.7	36	35.2	34.4	33.5	32.3	30.6
T0-50A T0F-50A Self-Priming	7.5	1 : 7.77	50 X 50 (2" x 2")	540	Head (m)	38.5	36.5	34.5	33.3	31.3	29
	7.5			500	Head (m)	32.8	31	29.3	27.8	26	23.3
	5			450	Head (m)	26.5	25	23	22	20.2	17
