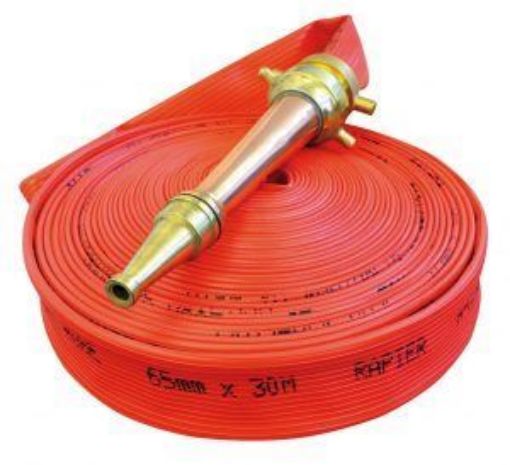

Rapier - H Class Heavy Duty Fire Hose with Added Protection

Rapier^® is an extruded fire hose which means that it has a PVC/nitrile outer cover. It is classified as a Type 3 fire hose and is a popular choice for both fire brigades and for industrial plant protection. The extruded cover gives it protection against abrasion damage plus making it easy to wipe free of oils stains and dirt.

The extruded cover comes in a standard red colour but other colours such as yellow or blue can also be supplied. This can help differentiate between fire hose (red) and wash-down hose (blue) on the same industrial site.

Rapier^® requires no drying and is easy to store. It has Australian Standard AS 2792 and Australian Defence Force DEF 5195A approval. We offer a wide range of couplings, which we securely fit to the hose and provide a test certificate if required. This means that you can confidently protect your life and property with a fully approved and tested fire hose.

Please note that this product does NOT include the hose fittings.

RAPIER Features:

Reliability
Abrasion-resistant
Easy to clean
High burts pressure 5250 kPa
High working pressure 2100 kPa
Mildew resistant for long life
Standard BSP fitting
Easy operation & maintenance
Synthetic - no drying
Class H
Australian Standard AS2792-1992

Primary uses:

Firefighting
Wash-down
Dewatering
Water transfer

Download Crusader Fire Hose Brochure

Technical Specifications

Class	Inside diameter mm	Working Pressure Bar	Burst Pressure Bar	Weight per Metre(kg)	Coil Diameter
H	25	21	52.5	0.23	0.39 m / 30 m
H	38	21	52.5	0.30	0.46 m / 30 m
H	45	21	52.5	0.36	0.47 m / 30 m
H	51	21	52.5	0.43	0.48 m / 30 m
H	64	21	52	0.56	0.51 m / 30 m
H	65	21	52	0.56	0.51 m / 30 m
M	79	14	35	0.80	0.53 m / 30 m
M	90	14	35	0.83	0.54 m / 30 m
M	102	10	25	0.90	0.55 m / 30 m
