Armas Pressure Sustaining Control Valve 600 Series-IrriFinder

Armas 600 Series - Pressure Sustaining Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

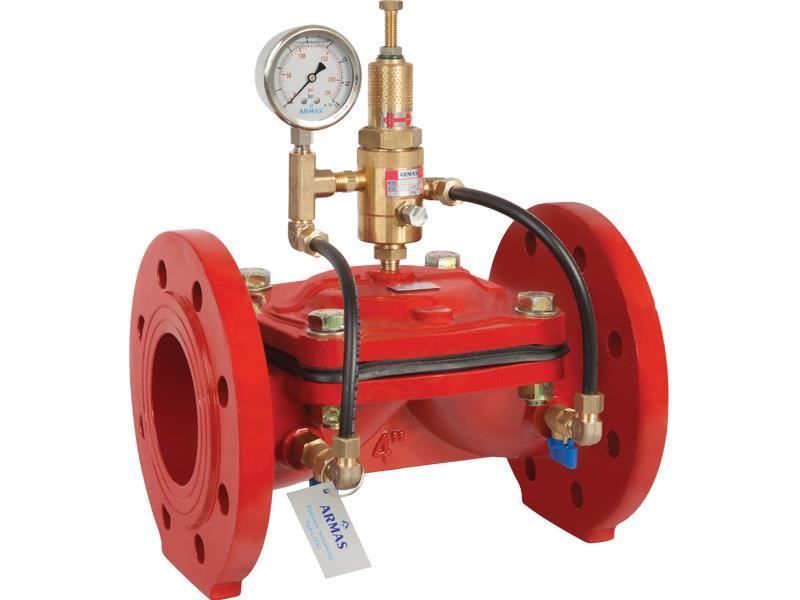

ARMAS 600 Series Pressure Sustaining Control Valve

Armas Pressure Sustaining Control Valve maintains valve upstream pressure value constant. Valve is opened when line pressure reaches adjusted valve pressure level. It ensures that pump motor within pumping systems will start without load. It also prevents positive pressure waves caused by pump during start-up. Valve controls upstream pressure value continuously and keeps it in a constant value without being affected from changes in flow rates. When no flow exists, it is closed by itself as fully tightness.

COMPONENTS:

Pressure Reducing Pilot Valve
Ball Valves
In-line Finger Filter
Pressure Gauge
Adjustment Bolt

ARMAS 600 Series Pressure Sustaining Control Valve Sample Application
