Armas Pressure Reducing Plastic Control Valve-IrriFinder

Armas Pressure Reducing Plastic Control Valve

Applications

Irrigation
Industrial
Water distribution and filtration systems

FEATURES

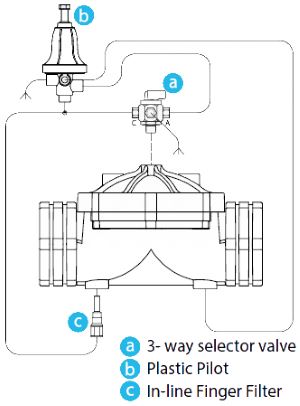

3-way plastic pressure reducing pilot, polytethylene plastic tubing system and nylon fittings
Optional 3-way selector valve
Standard pressure adjustment: 2.5 bar.
Made in Turkey

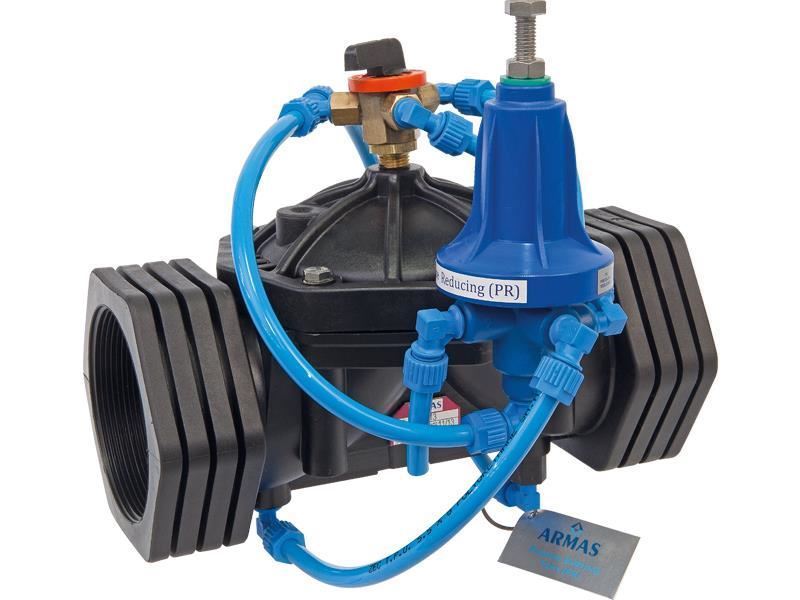

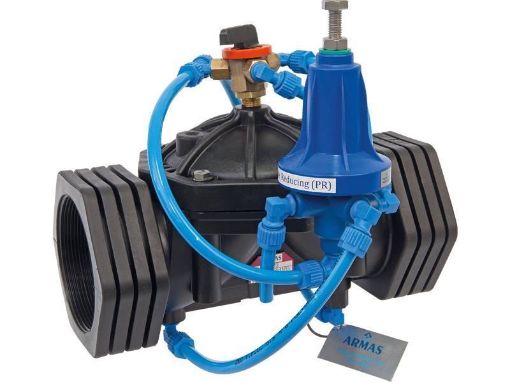

ARMAS 500 Series Pressure Reducing Plastic Control Valve

Armas “Pressure Reducing Control Valve” model is the hydraulic control valve which reduces high upstream pressure value to desired lower pressure value by means of built-in pressure reducing pilot valves.

It is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to very low and stable preset downstream pressure regardless of fluctuating demand, or varying upstream pressure. It has a special pilot specifically for extreme accuracy and stability when working with low pressure tape products. When no flow exists in the system, it closes itself automatically. When valve upstream pressure value, it is fully opened by itself. Valve can be used in vertical or horizontal positions in the system.

0 review(s)

Write your own review Close

Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
1 2 3 4 5
Excellent

Your name *

Your email *

Subject: *

Enquiry *

Irrigation Unit Conversions

Convert a given value and unit to different unit type. Conversions are available for flow rate, area, distance, time, volume, pressure, power, precipitation, salinity, and speed.

Click here to see unit descriptions.

Flow Rate:
		to

Area:
		to

Distance:
		to

Time:
		to

Volume:
		to

Pressure:
		to

Power:
		to

Precipitation (Water Application) Rate:
		to

Salinity:
		to

Speed:
		to

Reference: Washington State University

Pressure Reducing Plastic Control Valve

Pressure reducer control valve continuously controls downstream pressure value and maintains it without being affected by flow rate and upstream pressure values.
