Armas 600 Series - Pressure Reducing Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
3-way pilots are recommended to use at the application which has very close values between upstream and set pressure because of 3-way pilots provide less head loss.
Made in Turkey

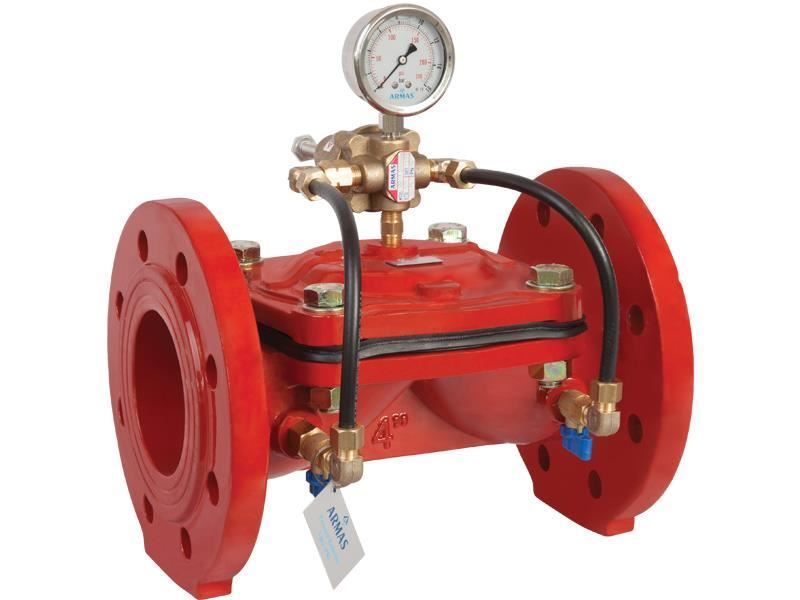

ARMAS 600 Series Pressure Reducing Control Valve

Armas Pressure Reducing Control Valve is the hydraulic control valve which reduces high upstream pressure value into desired lower pressure value by means of built-in pressure reducing pilot valves. Pressure reducer control valve controls downstream pressure value continuously and maintains it constant without being affected from flow rate and upstream pressure values.

When no flow exists in the system, it is closer by itself automatically. When valve upstream pressure value decreases below adjusted downstream pressure value, it is opened fully by itself.

COMPONENTS:

Pressure Reducing Pilot Valve
Ball Valves
In-line Finger Filter
Pressure Gauge
Adjustment Bolt

ARMAS 600 Series Pressure Reducing Control Valve Sample Application
