Armas 600 Series - Pressure Reducing and Sustaining Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

Pressure reducing and sustaining control valve parts

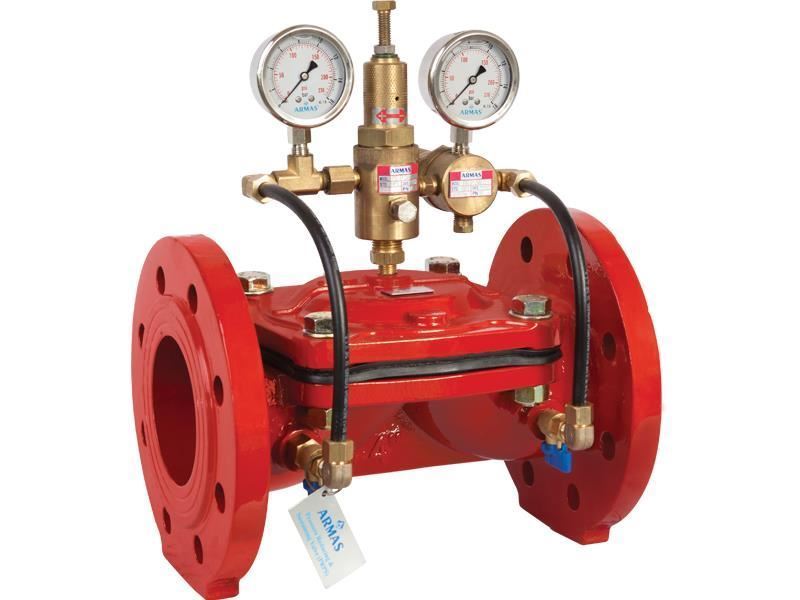

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve

Armas Pressure Reducing and Sustaining Control Valve reduces valve downstream pressure to desired value by sustaining upstream pressure. Two pilot valves exist on valve. Pilot valve on upstream side is the pressure sustaining pilot valve and sustains upstream pressure. Other pilot valve is pressure reducing pilot valve and keeps downstream pressure constant by reducing it to desired value. It controls upstream and downstream pressure continuously and keeps them within constant values.

COMPONENTS:

Pressure Sustaining Pilot Valve
Ball Valves
In-line Finger Filter
Pressure Reducing Pilot Valve
Pressure Gauges
Adjustment Bolt

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve Sample Application
