Pressure Reducing and Flow Rate Control Valve 600 Series-IrriFinder

Armas 600 Series - Pressure Reducing and Flow Rate Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

Pressure Reducing and Flow Rate Control Valve 600 series parts

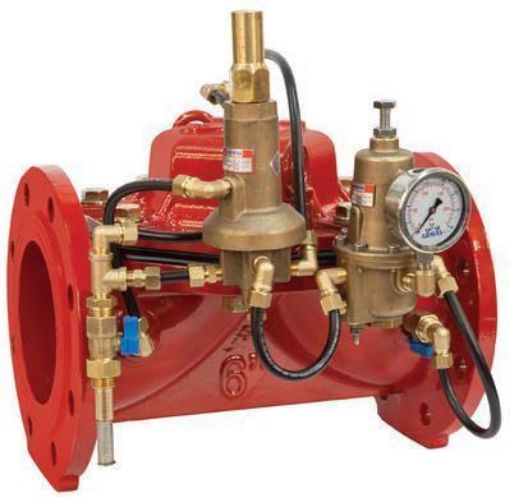

ARMAS 600 Series Pressure Reducing and Flow Rate Control Valve

Armas Pressure Reducing and Flow Rate Control Valves, independently provides two functions. Flow control being provided with 3 way differential pilot valve on the main valve which works line pressure without any energy, pressure reducing pilot valve control the downstream pressure of main valve. Flow rate control and pressure reducing valves decrease the valve number on lines used flow and pressure control to economize.

COMPONENTS:

Flow Rate Control Pilot
Pressure Reducing Pilot
Ball Valves
Orifice
Pressure Gauge
In-line Finger Filter

ARMAS 600 Series Pressure Reducing and Flow Rate Control Valve Sample Application

Pressure Reducing and Flow Rate Control Valve 600 series sample
