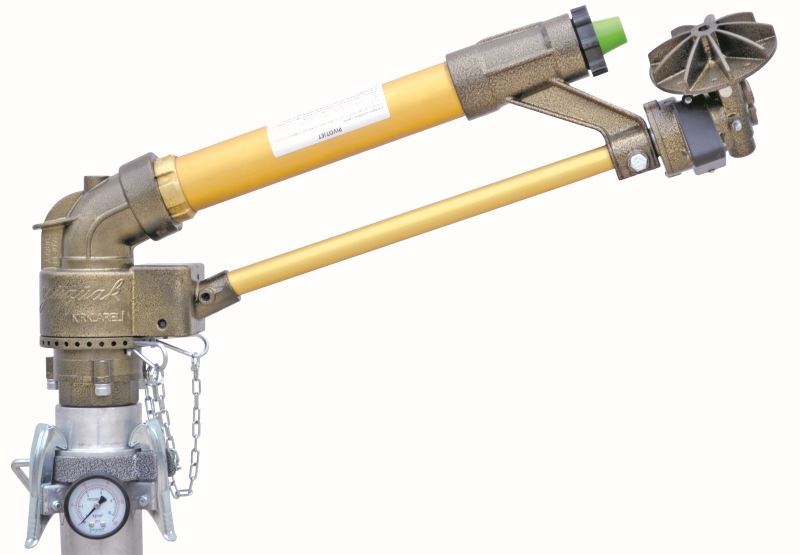

    Pivot JET

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    Low volume pivot end gun sprinkler on sale now!


    Water Input
    :
    2" Flange Connection

    Working Pressure
    :
    30 - 70 psi

    Water Flow
    :
    133 - 717 l/min

    Shooting Radius
    :
    19 - 36 m

    Free Nozzles
    :
    12, 14, 16, 18, 20, 22 mm

    Body Angle
    :
    18°

    Box Dimensions
    :
    20x20x75 cm

    Weight
    :
    7 kg

    Made in
    :
    Turkey
    Manufacturer part number: PVTJET

    The World's First Gear Drive End-Gun for Center Pivot systems

    Gear drive, medium pressure (2 – 6 atm) and high capacity sprinkler head.

    Slow reverse rotation allows it to rotate full and semi circle in the same speed.

    Excellent and unique water distribution

    Body angle of 18° is quite appropriate for portable or stationary systems at windy areas and at locations which requires irrigation from low level.

    Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.

    No clog nozzle makes it appropriate for use as END-GUN at the portable irrigation machines and Center pivots.



    Pivot Jet comes with 2" BSP female threaded inlet to flange connection adapter.



    Technical Specifications
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    12 0,47 2 30 19 61 133 8 35 1133 0,28 7,1
    12 0,47 2,5 37 20 66 162 9,7 43 1256 0,31 7,7
    12 0,47 3 44 22 71 177 10,6 47 1451 0,36 7,3
    12 0,47 4 56 24 77 203 12,2 54 1734 0,43 7,0
    14 0,55 2,5 37 22 71 220 13,2 58 1451 0,36 9,1
    14 0,55 3 44 24 77 233 14 62 1734 0,43 8,1
    14 0,55 4 56 26 85 270 16,2 71 2122 0,52 7,6
    14 0,55 5 70 29 95 305 18,3 81 2640 0,65 6,9
    16 0,62 2 29 24 77 242 14,5 64 1734 0,43 8,4
    16 0,62 3 44 26 85 297 17,8 78 2122 0,52 8,4
    16 0,62 4 56 28 90 342 20,5 90 2375 0,59 8,6
    16 0,62 5 70 30 98 387 23,2 102 2826 0,70 8,2
    18 0,70 3 44 29 95 375 22,5 99 2640 0,65 8,5
    18 0,70 4 56 30 98 438 26,3 116 2826 0,70 9,3
    18 0,70 5 70 33 108 470 28,2 124 3215 0,79 8,8
    20 0,78 3 44 32 103 445 26,7 118 3155 0,78 8,5
    20 0,78 4 56 33 108 537 32,2 142 3419 0,84 9,4
    20 0,78 5 70 37 121 592 35,5 156 4298 1,06 8,3
    22 0,86 3 44 32 103 557 33,4 147 3155 0,78 10,6
    22 0,86 4 56 34 110 642 38,5 170 3523 0,87 10,9
    22 0,86 5 70 36 118 717 43 189 4069 1,01 10,6
