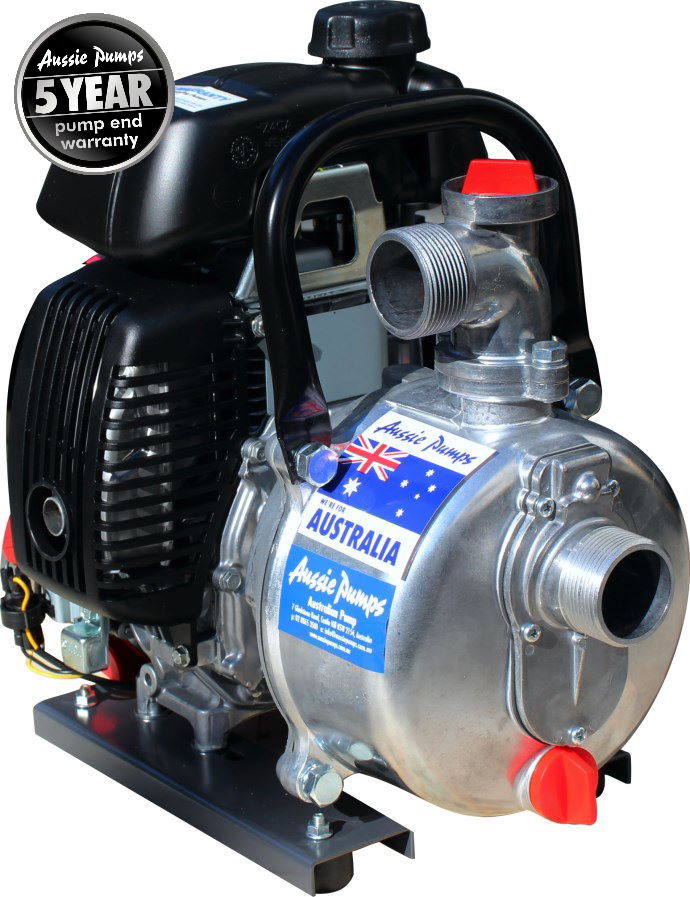

    Aussie Lightweight Portable Pump with Honda Petrol Engine

    Manufacturer: Aussie Pumps

    Aussie “Ultralite” lightweight 1” and 1½” pumps are designed to be portable and effective. Perfect for small size sprinklers!

    Max Capacity
    :
    210 l/min
    Max Head
    :
    60 m
    Engine Power
    :
    Honda 2.5 HP Petrol
    Suction/Discharge
    :
    1.5" / 1.5"
    40 / 40 mm
    Manufacturer part number: QP154SX/GXH50

    AUSSIE QUICK PRIME ULTRALITE PUMPS with Honda 2.5 HP PETROL Engine

    These pumps offer flows to 210 litres per minute and maximum heads of up to 60 metres. They use lightweight, high speed, top quality engines to provide exceptional efficiency right through the performance range.

    Only genuine Honda engines are used (backed by a 3 year Honda GX engine warranty).

    Aussie Quik Prime pumps carry a unique pump end five year warranty. The products are guaranteed to be free of faulty workmanship or material for a period of 5 years. Only top quality genuine Honda engines are used. A three year engine warranty applies, administered by Honda approved service agents.

    Features:

    • Flow rates up to 210 l/min.
    • Heads up to 60m.
    • Fast self priming up to 8m.
    • Fluids must be clean and free from suspended abrasive particles.
    • Five year pump warranty
    • Lightweight, portable
    • Replaceable suction cover and discharge elbow
    • QP154 series discharge can be rotated
    • Honda GX petrol engines
    • Skids with rubber feet and carry handle
    • High Head on both models
    • Robust impeller
    • Free strainer and coupling kit
    • QP154SX kit includes a free 1” reducer to enable it to be used with 1” hose

     Benefits:

    • Great quality … use with confidence
    • Units weigh from as little as 5.3 kgs
    • Ready to pump in minimum amount of time
    • Easily replaced if thread damaged, easy to service check valve without dismantling pump
    • Bi-directional outlets provides convenience (QP154SX only)
    • Tried and proven with established service networks throughout the world
    • Feet absorb vibration - stable in operation
    • Can be used to transfer water or for mop up fire fighting duties
    • Passes small solids in suspension
    • Convenience … cost saving

    The pump is to be installed in a horizontal position for both fixed and portable plants. These self priming pumps require water in the pump case only for the initial pumping operation. No water is necessary for subsequent pumping when the casing contains water. For maximum efficiency make the piping as short and straight as possible.

    * Fire hose kits are also available for this range of pumps.



    Technical Specifications



    Model QP154SX/GXH50
    Engine Honda GX 50H, 2.5hp, Recoil Start
    Engine Type 4-Stroke / Petrol

    Suction/Discharge Size

    1.5" (40mm)
    Self Primes to (m) 8
    Max Head (M) 60

    Max Flow Rate (L/min)

    210
    Pump Body Alloy
    Fluid Handling Clean Water

    Weight (Kg)

    9.8



    Ultralight pumps performance curve
