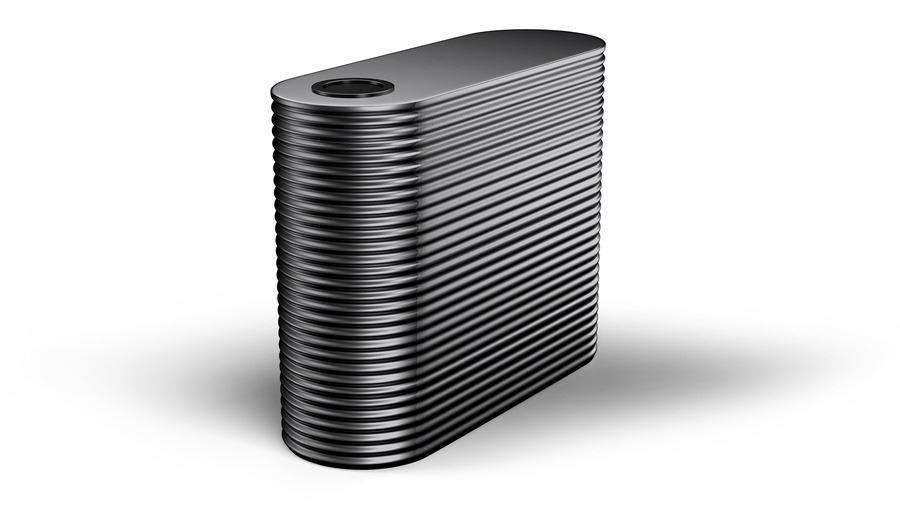

    Kingspan Slimline Water Tanks

    Manufacturer: Kingspan

    The rounded ends of a Slimline Tank create a sleek, modern look, elevating the aesthetics of water storage.

    Height
    :
    580mm - 2470mm
    Width
    :
    550mm - 1150mm
    Length
    :
    1200mm - 4000mm
    Size
    :
    600 - 10,000 litres
    Verticall Wall
    :
    Precision roll formed 0.6mm AQUAPLATE® steel
    Base
    :
    Double sided AQUAPLATE® steel (internal & external polymer lining)
    Lid
    :
    Colorbond® or Z450 grade material
    Rivets V Tek Screws
    :
    Henrob self piercing rivets. Reinforced 6mm, grade 304 stainless steel tension rods
    Sealing
    :
    Neutral cure silicone sealant potable water approved
    Corrugations
    :
    Corrugations for the tank walls comply with AS1445
    Corrosion Protection
    :
    Z450 Galvanised, Z275 Colorbond®, Painted – Low VOC Acrylic type paint
    Thermal Resistance
    :
    Do not store water at temperatures in excess of 65°C
    *

    *
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available

    Kingspan Slimline - Space saving rainwater tank made to suit tight spaces.

    The rounded ends of a Slimline Tank create a sleek, modern look, elevating the aesthetics of water storage. Choose from a range of popular sizes, or you can customize the length, width and height to perfectly fit the space available, and choose from a wide range of Colorbond® colours to suit. Manufactured using genuine Bluescope AQUAPLATE® Steel with a fully engineered internal stainless steel support frame. Available in capacities from 600 litres up to 8,700 litres.

    FEATURES

    • Storage of drinking water AS4020
    • Aesthetical modern design to suit narrow space
    • Made to measure to suit your property
    • Built to withstand the Australian climate
    • Made with genuine Australian Bluescope AQUAPLATE® Steel, which is specifically designed for constructing water tanks.
    • Lined with a food grade polymenr lining so that water never comes in contact with the steel.
    • Fully engineered internal stainless steel support frame.
    • Tanks meet Australian Standard AS4020 for storage of drinking water and carries Watermark certification.
    • Wide range of colours to choose from
    • Industry leading warranty: 10 year construction warranty +20 year warranty against corrosion.



    The rounded ends of our Slimline Water Tank create a sleek, modern look, elevating the aesthetics of water storage in a small footprint. A 2,000 Litre tank is great for a small household and perfect for the side of your house or the garden.

    Trusted by thousands of Australian families to harvest rainwater for their home, our tanks are made to last using genuine Bluescope AQUAPLATE® Steel with a fully engineered internal stainless steel support frame.

    The high quality Slimline water tanks are manufactured locally in company's Melbourne, Sydney, and Brisbane facilities for optimum precision and quality. NOW get a detailed quote including delivery to your property.





      Inlets Outlet Overflow Valve

    We include a generous number of quality inclusions to get you water tank going sooner. Below are some information on the default fitting positions which you can consider to suit your property.

    Our friendly team will work with you to decide and confirm the best fitting positions before the production of your water tank begins.

    water-tank-inlets water-tank-outlet water-tank-overflow water-tank-valve
    water-tank-slimline-fittings-positions 2 x 400mm inlet strainers with light guards Positions A & C 1 x 25mm fitted outlet with watermarked ball valve Position 6 2 x 90mm (100mm NSW only) fitted overflows with mosquito screen Positions 6 & 12 1 x 25mm WaterMarked Brass Ball Valve fitted to the Outlet



    Tank and Pump Packages

    You can also opt for our tank and pump packages to take the guess work out of choosing the right pump or fitting that is right for you. With a range of internal and external use packages, you will find one that is right for you.

    Premium Performance Evolution Package

    Includes our Evolution MkIII Pump, powered by a submersible Grundfos SB3-45A pump with PM Rain Controller. Suits large or 3 storey homes.

    High Performance Submersible Pump Package

    Includes a submersible Grundfos SBA3 pump with wall mounted Acquasaver Controller. Suitable for large or 2 storey homes.

    slimline-premium-performance-evolution-package
    slimline-high-performance-submersible-pump-package

    High Performance External Pump Package For Indoor Water Use

    Includes an external self-priming Grundfos JPC 3-PMR pump with Controller. Switches to mains when tank is empty. Suits most homes.

    Submersible Garden Pump Package

    Includes a submersible, automatic start / stop SBA3-35A pump with Controller for a quiet operation. Perfect for watering your garden and lawn.

    slimline-performance-external-pump-package
    slimline-submersible-pump-package

    External Garden Pump With Cover

    Includes a self priming Claytech C3 Pump with Controller for a seamless operation, great for watering your garden and lawn or topping up your pool.

    Bucket High Garden Tap Package

    This is a pump free, gravity fed system where a tap is installed high enough to fill a watering can.

    slimline-external-pump-package
    slimline-bucket-high-tap-package



    Colour Range

    Our comprehensive range of Colorbond colours come in both Standard and Painted options and they differ by state.

    kingspan-water-colorbond-range-v3
