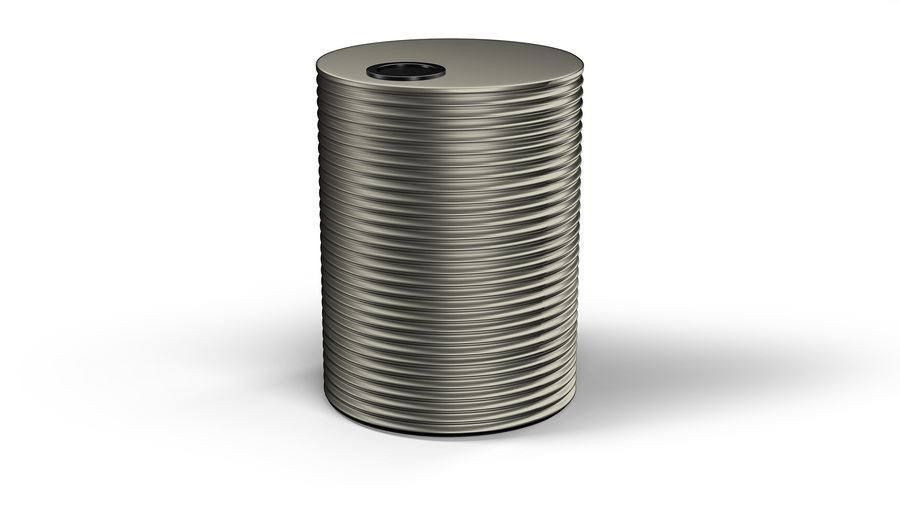

    Kingspan Round Water Tanks

    Manufacturer: Kingspan

    Round residential water tank is a popular choice and offers the largest water storage volume available for any shape.

    Height
    :
    800mm - 2470mm
    Diameter
    :
    900mm - 3800mm
    Size
    :
    500 - 29,000 litres
    Verticall Wall
    :
    Precision roll formed 0.6mm AQUAPLATE® steel
    Base
    :
    Double sided AQUAPLATE® steel (internal & external polymer lining)
    Lid
    :
    Colorbond® or Z450 grade material
    Rivets V Tek Screws
    :
    Henrob self piercing rivets. Reinforced 6mm, grade 304 stainless steel tension rods
    Sealing
    :
    Neutral cure silicone sealant potable water approved
    Corrugations
    :
    Corrugations for the tank walls comply with AS1445
    Corrosion Protection
    :
    Z450 Galvanised, Z275 Colorbond®, Painted – Low VOC Acrylic type paint
    Thermal Resistance
    :
    Do not store water at temperatures in excess of 65°C
    *

    *
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available

    Kingspan Round Water Tanks - Popular Traditional Look Rainwater Tank

    The traditional, corrugated round water tank remains a popular choice and offers the largest water storage volume available for any shape. Manufactured with a true, deep corrugated profile and extra wide sheets, these are robust tanks with minimal seams and a classic round look. They are the favoured choice for roof top placement. Choose from a range of popular sizes, or you can customize the diameter and height to perfectly fit the space available. Our round water tanks are manufactured using genuine Australian Bluescope AQUAPLATE® Steel and have a fully engineered internal stainless steel support frame. Available in capacities from 500 litres up to 29,000 litres.

    Trusted by thousands of Australian families to harvest rainwater for their home, our tanks are made to last using genuine Bluescope AQUAPLATE® Steel with a fully engineered internal stainless steel support frame.

    We provide high quality Round Water Tanks locally in Melbourne, Sydney, and Brisbane for optimum precision and quality. Get a detailed quote including delivery to your property.

    FEATURES

    • Storage of drinking water AS4020
    • Aesthetical modern design to suit narrow space
    • Made to measure to suit your property
    • Built to withstand the Australian climate
    • Made with genuine Australian Bluescope AQUAPLATE® Steel, which is specifically designed for constructing water tanks.
    • Lined with a food grade polymenr lining so that water never comes in contact with the steel.
    • Fully engineered internal stainless steel support frame.
    • Tanks meet Australian Standard AS4020 for storage of drinking water and carries Watermark certification.
    • Wide range of colours to choose from
    • Industry leading warranty: 10 year construction warranty +20 year warranty against corrosion.





      Inlets Outlet Overflow Valve

    We include a generous number of quality inclusions to get you water tank going sooner. Below are some information on the default fitting positions which you can consider to suit your property.

    Our friendly team will work with you to decide and confirm the best fitting positions before the production of your water tank begins.

    water-tank-inlets water-tank-outlet water-tank-overflow water-tank-valve
    Round tank fitting positions 1 x 400mm fitted Inlet strainer with light guard Position 12 1 x 25mm fitted outlet with WaterMarked ball valve Position 1 1 x 90mm (100mm NSW only) fitted overflow with mosquito screen Position 12 1 x 25mm Water Marked Brass Ball Valve fitted to the Outlet



    Tank and Pump Packages

    You can also opt for our tank and pump packages to take the guess work out of choosing the right pump or fitting that is right for you. With a range of internal and external use packages, you will find one that is right for you.

    Premium Performance Evolution Package

    Includes our Evolution MkIII Pump, powered by a submersible Grundfos SB3-45A pump with PM Rain Controller. Suits large or 3 storey homes.

    High Performance Submersible Pump Package

    Includes a submersible Grundfos SBA3 pump with wall mounted Acquasaver Controller. Suitable for large or 2 storey homes.

    slimline-premium-performance-evolution-package
    slimline-high-performance-submersible-pump-package

    High Performance External Pump Package For Indoor Water Use

    Includes an external self-priming Grundfos JPC 3-PMR pump with Controller. Switches to mains when tank is empty. Suits most homes.

    Submersible Garden Pump Package

    Includes a submersible, automatic start / stop SBA3-35A pump with Controller for a quiet operation. Perfect for watering your garden and lawn.

    slimline-performance-external-pump-package
    slimline-submersible-pump-package

    External Garden Pump With Cover

    Includes a self priming Claytech C3 Pump with Controller for a seamless operation, great for watering your garden and lawn or topping up your pool.

    Bucket High Garden Tap Package

    This is a pump free, gravity fed system where a tap is installed high enough to fill a watering can.

    slimline-external-pump-package
    slimline-bucket-high-tap-package



    Colour Range

    Our comprehensive range of Colorbond colours come in both Standard and Painted options and they differ by state.

    kingspan-water-colorbond-range-v3
