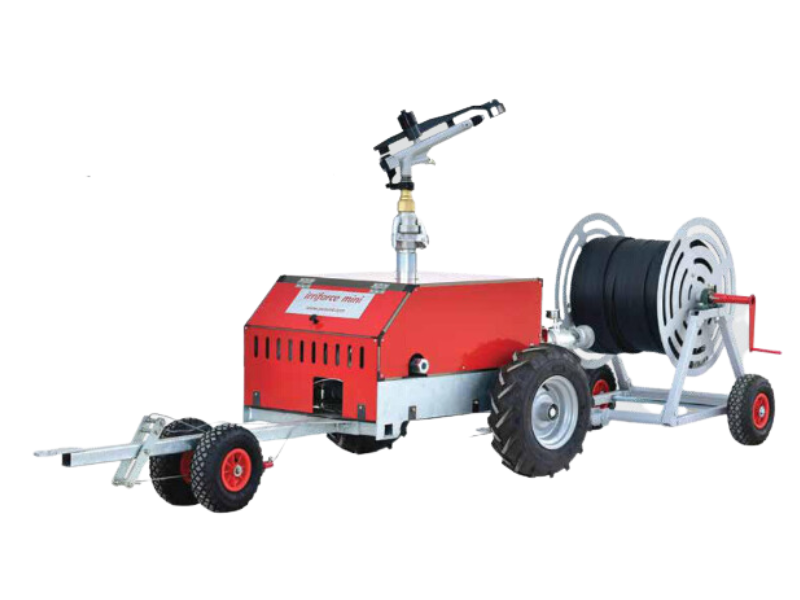

    IrriCruiser MINI PLUS Travelling Irrigator

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    Small range travelling irrigator designed for sport fields, horse arenas and small hobby gardens! Compact, easy to use, efficient, turbine drive, LOW-COST travelling irrigator .

    Run Length
    :
    150 m
    Lay Flat Hose
    :
    75m of 1.5" Premium Drag Hose
    Separate Hose Reel
    Working Pressure
    :
    36 - 58 psi
    Water Flow
    :
    170 - 315 l/min
    Effective Spray Width
    :
    34 - 48 m
    Total Irrigated Area
    :
    165 X 350 m = 57,750 m² (~6 Hectare) in 7 days
    Sprinkler
    :
    DuCaR Atom 35
    Mechanism
    :
    Turbine drive & Automatic Stop at End of Run
    Weight
    :
    150 kg
    Construction
    :
    Heavy duty welded chassis all hot dip galvanized
    Made in
    :
    Turkey
    Manufacturer part number: IrriCruiser-Mini-Plus

    DuCaR IrriCruiser MINI PLUS - New Generation Turbine Drive Travelling Irrigator

    Applications

    Agriculture: Small crops

    Turf Irrigation: Golf, horse arenas, sports fields and gardens

    Dust Control: Mining and construction sites

    FEATURES

    • Hot dip galvanised chassis & Aluminium frame
    • Patented travel shut-off mechanism.
    • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even towards end of run (0.8 to 1.3 bar pressure loss for operation of the turbine).
    • Single speed gear box
    • Speed Control Valve: Precise speed control between 10 m/h and 70 m/h
    • Compact design, easy to use and store
    • Auto stop mechanism
    • Manually Operated Separate Hose Reel (can be hooked up to the machine)
    • Portable: The DuCaR IrriCruiser MINI PLUS is ideal for irrigating sports fields and small areas. They can be towed from field to field or farm to farm.
    • Excellent Water Uniformity: Provides continuous movement of the sprinkler and even water distribution.
    • Long Life & Simple Maintenance:The irrigator is built from long life components and require a minimum of maintenance. Spare parts are available.
    • Easy and safe operation
    • Very low labour requirement: The DuCaR IrriCruiser MINI PLUS can easily be operated by one man and the labour consists mostly of driving a bike and regular greasing.
    • Cable length: 150 m
    • Lay Flat Hose : 75m of 1.5" Premium Drag Hose
    • Required water flow : 100 - 310 l/min
    • Designed in Australia, made in Turkey



    New Generation DuCaR IrriCruiser Aluminium Turbine System

    • The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
    • DuCaR IrriCruiser MINI PLUS develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
    • DuCaR IrriCruiser MINI PLUS allows you to adjust a wide range of travel speeds to suit your particular crop water requirements, so you can save a lot of energy.
    • The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCruiser with infinite range of travel speeds to suit different crop water requirements.
    • No Filters required for the turbine drive.
    • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

    Download Catalogue
    Download DuCaR IrriCruiser Soft Hose Travelling Irrigators Full Catalogue
    Download Technical Specifications of IrriCruiser MINI PLUS



    Technical Specifications of DuCaR ATOM 35 METAL Sprinkler Head
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
    10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
    10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
    10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
    12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
    12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
    12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
    12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
    14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
    14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
    14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
    14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
