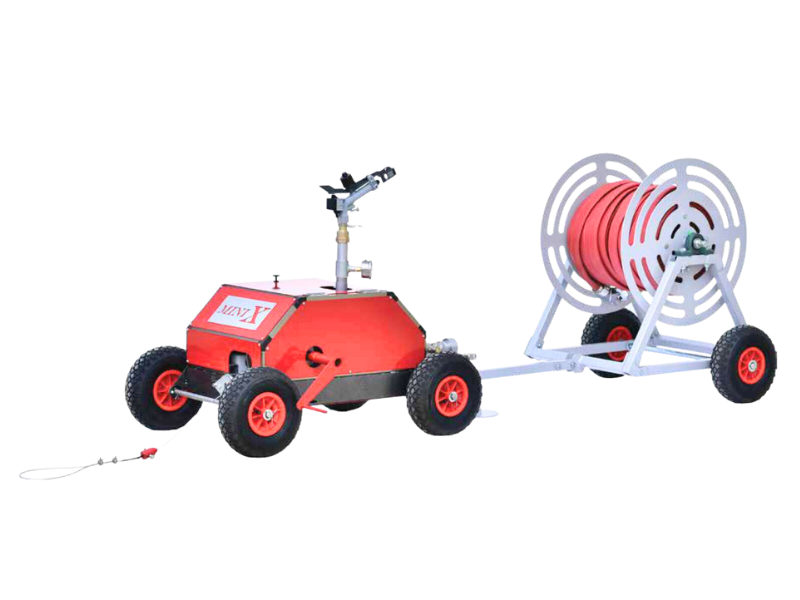

    IrriCruiser MINI 120 Travelling Irrigator

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    STOP wasting time to fix your pop-up sprinklers. IrriCruiser MINI is very easy to use, efficient, turbine drive, LOW-COST travelling irrigator, and is suitable for lawn, sports fields, golf, race courses and small- to medium size hobby gardens.

    Run Length
    :
    120 m
    Lay Flat Hose
    :
    1 1/4" (32 mm) 60 m Premium Drag Hose
    Working Pressure
    :
    30 - 51 psi
    Water Flow
    :
    57 - 117 l/min
    Effective Spray Width
    :
    30 - 41 m
    Travel Speed
    :
    19 to 110 m/h
    Sprinkler
    :
    DuCaR Atom 22
    Mechanism
    :
    Turbine drive & Automatic Stop at End of Run
    Weight
    :
    55 kg
    Construction
    :
    Heavy duty welded chassis hot dip galvanized & powder coated
    Made in
    :
    Turkey
    Manufacturer part number: IrriCruiser-Mini

    DuCaR IrriCruiser MINI 120 - New Generation Turbine Drive Travelling Irrigator

    Applications

    Agriculture: Small hobby farms

    Turf Irrigation: Golf, race/horse courses, playing/sports fields and gardens

    Dust Control: Mining and construction sites

    FEATURES

    • Hot dip galvanised and powder-coated chassis & Aluminium frame
    • Patented travel shut-off mechanism: It closes the water inlet valve when it comes to the end of the run and your pump shuts itself down too. (NOTE: The pump must have a pressure sensor.)
    • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even towards end of run (0.8 to 1.3 bar pressure loss for operation of the turbine).
    • Single speed gear box
    • Compact design, easy to use and store
    • Hose reel
    • Portable: The DuCaR IrriCruiser MINI is ideal for irrigating small acreages. They can be easily towed from field to field.
    • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
    • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
    • Easy and safe operation
    • Very low labour requirement: The DuCaR IrriCruiser MINI can easily be operated by one man and the labour consists mostly of lying down and rewinding the hose.
    • Cable length 120 m
    • Lay Flat Hose : 1 1/4" (32 mm) Premium Drag Hose
    • Required water flow : 50 - 120 l/min
    • Designed in Australia, made in Turkey



    New Generation DuCaR IrriCruiser Aluminium Turbine System

    • The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
    • DuCaR IrriCruiser MINI develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
    • No Filters required for the turbine drive.
    • No exhaust water from the turbine drive, all water is distributed through the sprinkler.



    Download Catalogue
    Download DuCaR IrriCruiser Soft Hose Travelling Irrigators Full Catalogue
    Minix-Setup-Layout-Reduced
    Download Technical Specifications of IrriCruiser MINI 120



    Technical Specifications of DuCaR IrriCruiser MINI 120
    Nozzle Diameter Pressure Jet Length Capacity Efficiency

    Main Nozzle

    (mm)

    Secondary

    Nozzle

    (mm)

    kg/cm2

    (bar)

    lbs/inch

    (psi)

    		 m feet l/min m3/h G.P.M

    Irrigated

    Area

    (m2)

    Lineer

    Speed

    (m/h)

    Rainfall

    (mm)

    Required

    Total

    Pressure

    (bar)
    8 X 2 29 16.5 54 56.4 3.4 14.9 3675 19 2.8 3.0
    8 X 3 44 18.0 59 67.8 4.1 18 4040 40 3.1 4.2
    8 X 4 56 19.0 62 79.8 4.8 21.1 4285 55 3.4 6.0
    8 4 2 29 16.5 54 71.4 4.3 18.9 3675 39 3.6 3.2
    8 4 3 44 18.0 59 86.4 5.2 22.8 4040 60 4.0 5.0
    8 4 4 56 19.0 62 99.6 6 26.4 4285 80 4.3 7.0
    10 X 4 56 17.0 55 88.2 5.3 23.3 3796 82 4.3 4.0
    10 X 5 70 19.5 63 106.2 6.4 28.1 4409 110 4.5 6.0
    10 X 2 29 20.5 67 116.4 7 30.8 4659 103 4.6 7.0
