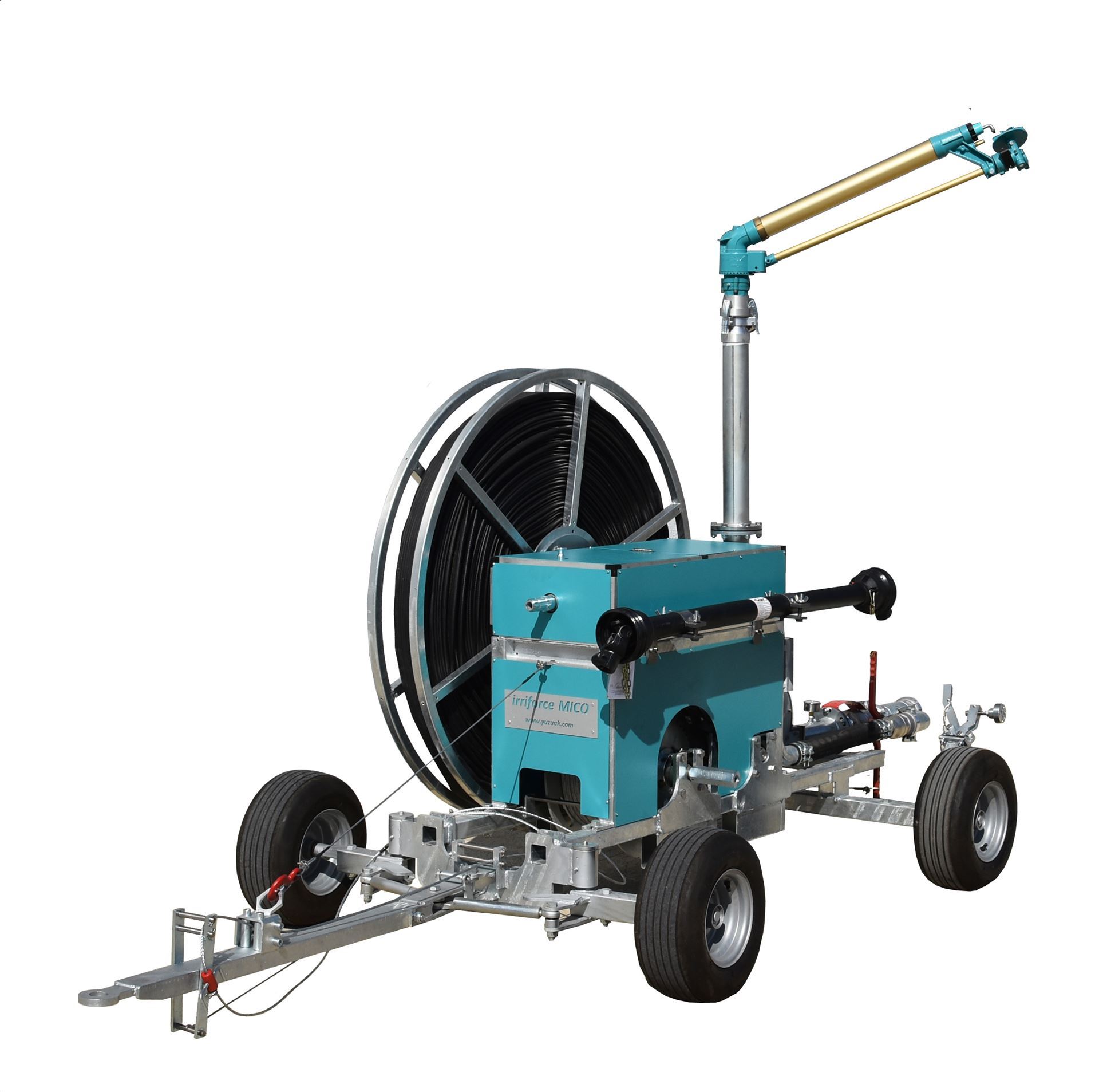

    IrriCruiser MICO Travelling Irrigator

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    No more shifting pipes on small to medium size paddocks! IrriCruiser MICO specifically designed for low flow rate and pressure irrigation applications. FREE 150 m of 2.5" made in Norway drag hose.

    Run Length
    :
    300 m
    Lay Flat Hose
    :
    2.5" 150 m Premium Drag Hose
    Working Pressure
    :
    40 - 90 psi
    Water Flow
    :
    300 - 750 l/min
    Effective Spray Width
    :
    50 - 90 m
    Total Irrigated Area
    :
    345 X 490 m = 169,050 m² (17 Hectare) in 7 days
    Speed
    :
    10 - 60 m/hour
    Sprinkler
    :
    DuCaR JET 55
    Mechanism
    :
    Turbine drive, Single Speed Gear Box & Speed Adjustment System with Automatic Travel Shut Off
    Weight
    :
    650 kg
    Construction
    :
    HOT DIP galvanised, heavy duty welded chassis and hose reel
    Made in
    :
    Turkey
    Manufacturer part number: IrriCruiser-Mico-TD-2500-300

    DuCaR IrriCruiser MICO - New Generation Travelling Irrigator

    APPLICATIONS

    Agriculture: Small to medium crops, pastures and dairy farms

    Turf Irrigation: Golf, race courses, playing fields and gardens

    Dust Control: Mining and construction sites

    FEATURES

    • Heavy duty design
    • Hot dip galvanised hose reel & chassis
    • PATENTED Speed Adjustment and By-Pass Mechanism
    • Travel shut-off mechanism
    • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools. Delivers high torque at low RPMs even near end of run.
    • Single speed gear box
    • Sensitive speed control: Extremely wide range of speed for any crop and application.
    • Manual brake system
    • PTO driven integrated hose reel
    • Wide tires makes the machine perfect for turf irrigation
    • Portable: The DuCaR IrriCruiser MICO is ideal for irrigating widely scattered areas. It can be towed from field to field or farm to farm.
    • Excellent Water Uniformity: The continuous movement of the sprinkler and travelling irrigator provides a perfect uniformity and even water distribution.
    • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
    • Easy and safe operation
    • Very low labour requirement: The DuCaR IrriCruiser MICO can easily be operated by one man and the labour consists mostly of driving a tractor.
    • Sensitive wheel system
    • NO EXHAUST WATER - NO PISTON - NO TOO MANY MOVING PARTS
    • Comes with 150m of 2.5"Premium Quality Norwegian Made Drag Hose
    • Designed in Australia, made in Turkey



    New Generation DuCaR IrriCruiser Turbine System

    • The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
    • DuCaR IrriCruiser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
    • Our PATENTED by-pass line system allows you to adjust the water flow rate in the turbine. Therefore, you can simply adjust the speed and run the machine only required amount of water flow rate.
    • The volume of water entering the turbine is controlled by a diverter valve, which enables you to adjust infinite range of travel speeds to suit differing crop water requirements and run the machine very efficiently.
    • The travelling speed is clearly read on the tachometer.
    • No filters required for the turbine.
    • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

    Download Catalogue
    Download DuCaR IrriCruiser Soft Hose Travelling Irrigators Full Catalogue
    Download Technical Specifications of IrriCruiser MICO



    Technical Specifications for DuCaR IrriCruiser MICO
      Turbine Pressure Loss
    0.9 bar    		 Turbine Pressure Loss
    0.8 bar    		 Turbine Pressure Loss
    0.8 bar    		 Turbine Pressure Loss
    0.8 bar
      Capacity Irrigated
    Area    		 Rainfall
    20 mm    		 Rainfall
    25 mm    		 Rainfall
    30 mm    		 Rainfall
    40 mm
    Nozzle Size Sprinkler Pressure (Bar) Sprinkler Throw Radius
    (m)    		 % 85 of Throw Diameter of Sprinkler (m) Flow Rate (l/min) Flow Rate (m3/h) m 2 Lineer Velocity
    (meter/hour)    		 Total Pressure
    (Bar)    		 Lineer Velocity
    (meter/hour)    		 Total Pressure
    (Bar)    		 Lineer Velocity
    (meter/hour)    		 Total Pressure
    (Bar)    		 Lineer Velocity
    (meter/hour)    		 Total Pressure
    (Bar)
    16 mm 3 30 51 308 18.5 16.321 17 4.2 14 4.1 11 4.1 9 4.1
    4 34 58 358 21.5 18.651 17 5.4 14 5.3 12 5.3 9 5.1
    5 35 60 392 23.5 19.240 18 6.5 15 6.4 12 6.4 9 6.2
    18 mm 3 32 54 390 23.4 17.482 20 4.5 16 4.4 13 4.4 10 4.2
    4 35 60 445 26.7 19.240 21 5.7 17 5.6 14 5.6 10 5.4
    5 38 65 498 29.9 21.018 21 6.9 17 6.8 14 6.8 11 6.6
    6 41 70 553 33.2 22.817 22 8.1 17 8.0 15 8.0 11 7.8
    20 mm 3 35 60 463 27.8 19.240 22 4.7 17 4.6 14 4.6 11 4.4
    4 38 65 548 32.9 21.018 23 6.1 20 6.0 16 6.0 12 5.8
    5 42 71 617 37 23.421 24 7.3 19 7.2 16 7.2 12 7.0
    6 44 75 700 29.9 24.636 26 8.8 19 8.7 17 8.7 13 8.5
    22 mm 3 36 61 567 34 19.830 26 5.1 20 5.0 17 5.0 13 4.8
    4 40 68 680 40.8 22.215 28 6.7 22 6.6 18 6.6 14 6.4
    5 44 75 753 45.2 24.636 28 8.1 22 8.0 18 8.0 14 7.8



    Technical Specifications for DuCaR JET 55 Sprinkler Head
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    20 0.78 3 44 35 115 463,3 28 122 3847 0.95 7.2
    20 0.78 4 56 38 125 548.3 33 145 4534 1.12 7.3
    20 0.78 5 70 42 138 616.7 37 163 5538 1.37 6.7
    22 0.86 4 56 40 131 680.0 41 180 5024 1.24 8.1
    22 0.86 5 70 44 144 753.3 45 199 6079 1.50 7.4
    22 0.86 6 85 47 154 818.3 49 216 6936 1.71 7.1
    24 0.94 5 70 46 151 886.7 53 234 6644 1.64 8.0
    24 0.94 6 85 48 157 958.3 58 253 7235 1.79 7.9
    24 0.94 7 100 50 164 1020.0 61 269 7850 1.94 7.8
    26 1.00 4 56 45 148 866.7 52 229 6359 1.57 8.2
    26 1.00 5 70 48 157 966.7 58 255 7235 1.79 8.0
    26 1.00 6 85 51 167 1066.7 64 282 8167 2.02 7.8
    28 1.10 5 70 50 164 1116.7 67 295 7850 1.94 8.5
    28 1.10 6 85 53 174 1233.3 74 326 8820 2.18 8.4
    28 1.10 7 100 55 180 1358.3 82 359 9499 2.35 8.6
