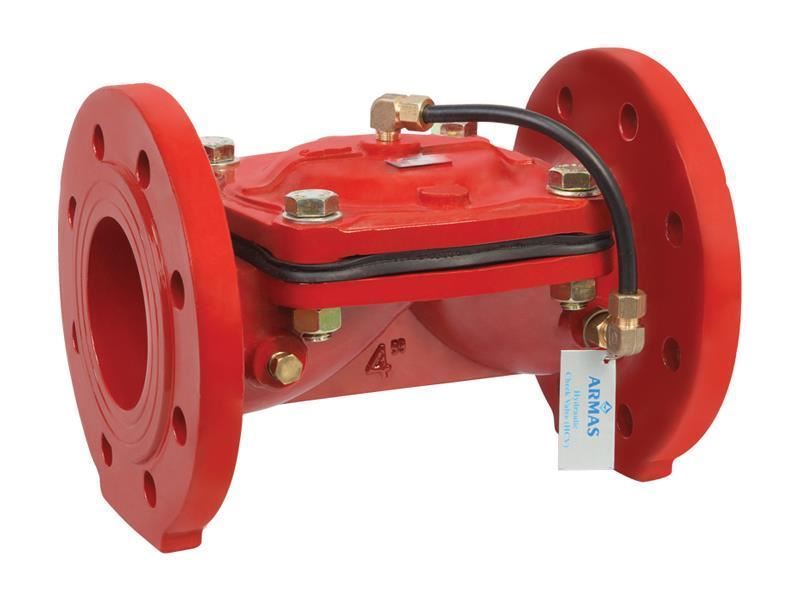

    Hydraulic Check Valve

    Manufacturer: Armas Valves & Filters
    Be the first to review this product

    Hydraulic Check Valves prevent back-flow.

    Connection
    :
    Flanged - Threaded - Grooved End
    Material
    :
    GG25 - GGG40
    Coating
    :
    Epoxy
    Temperature
    :
    -10 to 80 °C
    Max Operating Pressure
    :
    10 - 16 - 25 bar
    Made in
    :
    Turkey
    Manufacturer part number: 600-HCV
    *

    *

    *

    *

    *

    Armas 600 Series - Hydraulic Check Valve

    Applications

    • Irrigation
    • Industrial

    FEATURES

    • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
      such as stem, bearing and seat exist in main valve body.
    • The valve position will be controlled by a hand operated selector valve.
    • Valve size same as main line or one size smaller.
    • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
    • Made in Turkey



    Hydraulic Check Valve 600 series parts

    ARMAS 600 Series Hydraulic Check Valve

    Armas Hydraulic Check Valve is hydraulically controlled check valve which operates with line pressure and prevents back-flow in system. When downstream pressure value exceeds upstream pressure value, valve is closed as wholly sealed without causing surge. When upstream pressure value exceeds downstream pressure value, check valve is opened by itself slowly. So it damps pressure surges formed during start-up.

    COMPONENTS:

    1. In-line Finger Filter
    2. Plug

    ARMAS 600 Series Hydraulic Check Valve Sample Application

    Hydraulic Check Valve 600 series sample
