    Green 70

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    Low-Cost - Long Range & Perfect water uniformity


    Water Input
    :
    1.5" Female BSP

    Working Pressure
    :
    29 - 85 psi

    Water Flow
    :
    108 - 532 l/min

    Shooting Radius
    :
    18 - 36 m

    Free Nozzles
    :
    10, 12, 14, 16, 18 mm

    Body Angle
    :
    24°

    Box Dimensions
    :
    21x21x71 cm

    Weight
    :
    5.5 kg

    Made in
    :
    Turkey
    Manufacturer part number: GRN70

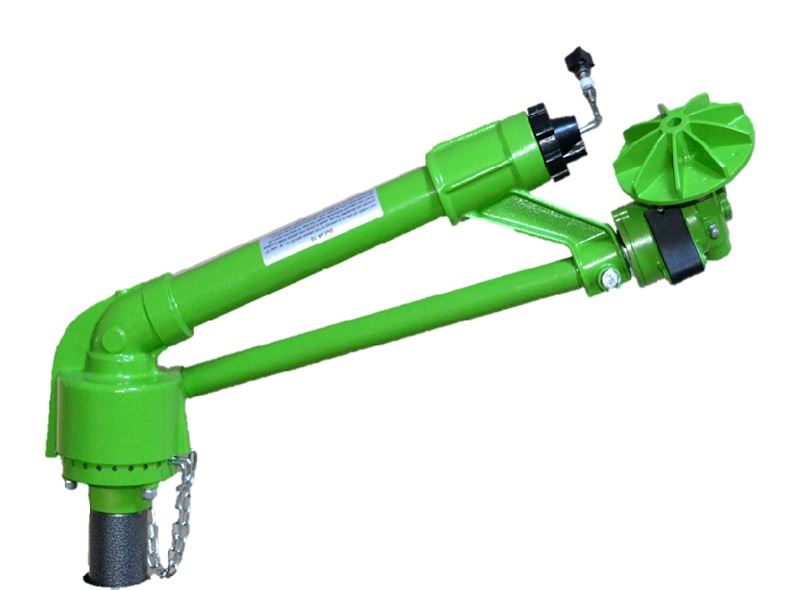

    Ducar Green 70 is a gear driven, part and full circle sprinkler which provides perfect irrigation with the performance, technology, reliability and the feature of uniform coverage at a great price!

    Some unique benefits of Green 70:

    • Rotable sprinkler heads with gearbox and adjustable for full or part circle coverage, featuring medium and high pressure operations (2 to 6 Bars), and high efficiency.
    • This model is an introduction to the economical series. Changeable nozzles for a  perfect irrigation with evenly distributed water
    • Suitable for using in any type of delicate or rough agricultural applications; widely used especially on wheat, maize, and clover.
      Makes full and semi-circle turns at the same speed;
    • Ideal for agricultural areas, sport fields, and mines; suitable for portable and fixed systems.
    • It has new type special paint; new type powder paint makes it much more durable against environmental effects.

    Technical Specifications
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch kg/cm2 lbs/inch m feet l/min m3/h G.P.M m2 acre mm/h
    10 .39 2 29 18 59 108 6,5 29 1017 0,25 6,4
    10 .39 3 44 21 69 125 7,5 33 1385 0,34 5,4
    10 .39 4 56 23 75 143 8,6 38 1661 0,41 5,2
    12 .47 2 29 20 66 152 9,1 40 1256 0,31 7,2
    12 .47 3 44 24 79 182 10,9 48 1809 0,45 6,0
    12 .47 4 56 27 89 210 12,6 55 2289 0,57 5,5
    12 .47 5 70 30 98 235 14,1 62 2826 0,70 4,99
    14 .55 2 29 21 69 195 11,7 52 1385 0,34 8,45
    14 .55 3 44 25 82 238 14,3 63 1963 0,48 7,3
    14 .55 4 56 29 95 277 16,6 73 2641 0,65 6,3
    14 .55 5 70 31 102 308 18,5 81 3018 0,75 6,1
    16 .62 2 29 22 72 247 14,8 65 1520 0,38 9,7
    16 .62 3 44 26 85 303 18,2 80 2123 0,52 8,6
    16 .62 4 56 30 98 350 21 92 2826 0,70 7,4
    16 .62 5 70 33 108 390 23,4 103 3419 0,84 6,8
    18 .70 3 44 28 92 378 22,7 100 2462 0,61 9,2
    18 .70 4 56 31 102 437 26,2 115 3018 0,75 8,7
    18 .70 5 70 34 112 487 29,2 129 3630 0,90 8,0
    18 .70 6 85 36 118 532 31,9 140 4069 1,01 7,8



    Download Catalogue
