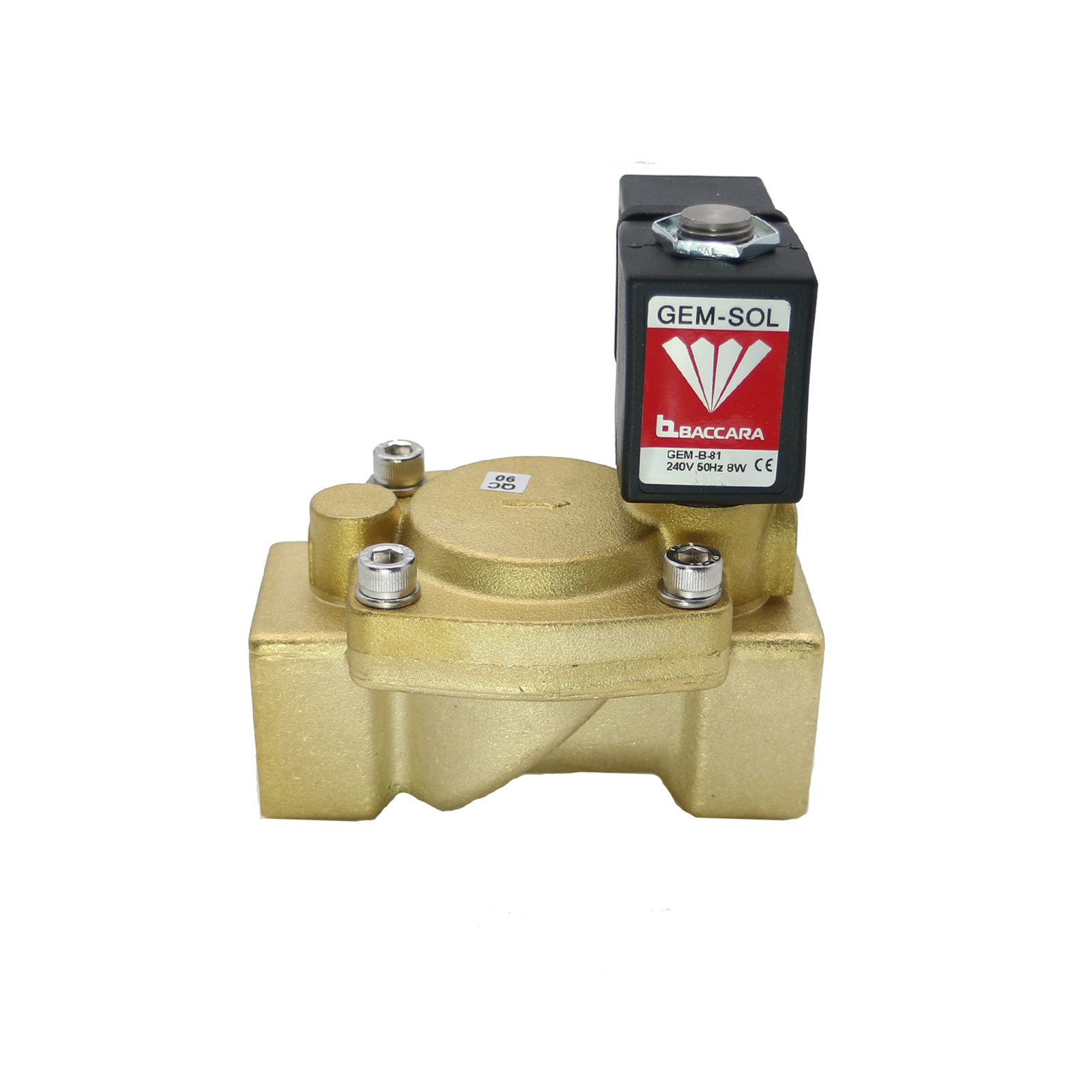

Baccara GEM-A3P Latch with Brass Solenoid Valve-IrriFinder

Technical Data

Function	2 Way NC, NO
Ports size	1/4", 3/8", 1/2", 3/4", 1" BSP & NPT
Pressure range	See table * Minimum pressure differential of 03 or 05 is required * Pressure of voltage DC is 70% of voltage AC only.
Kv (l/min)	See table
Temperature range	Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC
Materials in contact with media	Manual override: NC/NO - Brass screw NOa* - manual override is not available *pressure is supplied through the base Main Valve: Brass, Stainless Steel AISI 316 Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: NBR, FPM (Viton®), EPDM
Coil voltage	• Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal
Standard / Certification	• UL 429 * Available on selected models only Please contact our technical sales department for details
Standard protection class	IP65 with connector * Option : IP68 (please refer to GEM-BP Coil)

• Slow closing system to prevent water hammer effect

Gem-S-general-purpose-brass-solenoid-valve

Pressure (bar) & Flow table NO/NC GEM-S-?-20....41

Size	Orifice (mm)	Pressure (bar)	Kv (l/min)
1/4"	8	05 to 20	12
3/8"	8		16
1/2"	12		35

Pressure (bar) & Flow table NO/NC GEM-S-?-?r

Size	Orifice (mm)	Pressure (bar)	Kv (l/min)
1/2"	16	05 to 20	60
3/4"	16	05 to 20	80

Pressure (bar) & Flow table NO/NC GEM-S-?-50....60

Port Connection	Orifice (mm)	Pressure (bar) AC DC		Kv (l/min)
3/4"	20	03 to 15	03 to 15	130
1"	25	05 to 15	05 to 15	200

GEM-S-General-Purpose-Brass-Solenoid-Valve-dimensions

GEM-S-General-Purpose-Brass-Solenoid-Valve Plumbing-Diagram

GEM-S-General-Purpose-Brass-Solenoid-Valve-Plumbing-Diagram
