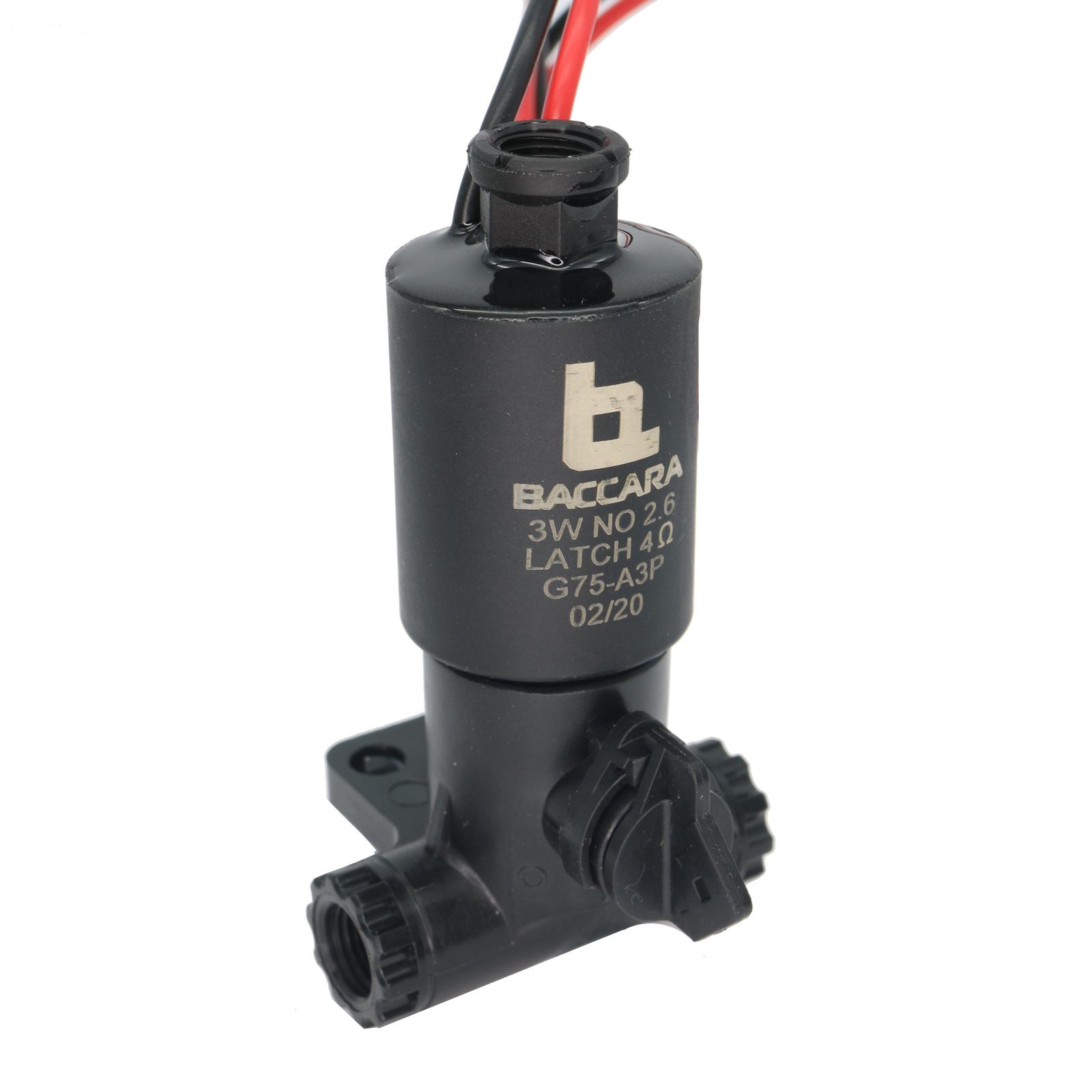

G75-A3P | Latch Irrigation Solenoid Valve

Manufacturer: Baccara

Be the first to review this product

Size

:

1/8" BSP

Function

:

2 Way NC, 3 Way, NC, NO

Valve Operation

:

Direct Operated

Body Material

:

Plastic

Seal

:

NBR

Pressure Range

:

8 - 10 bar

Media

:

Air, water

* Valve Function

* Latch Type

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

Technical Data

Function	2 Way NC, 3 Way NC, NO
Ports size	1/8” BSP & NPT
Orifice size	2.6 mm
Pressure range	NC 2 Way : 10 bar NC 3 Way : 8 bar NO 3 Way : 10 bar
Temperature range	Fluid : 5ºC to 50ºC (no freezing) Ambient : 10ºC to 50ºC
Materials in contact with media	Manual override: Plastic Main Valve: UV Stabilized - Reinforced Nylon 6 30% GF Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: NBR
Mounting	2 x Ø6 mm holes
Manual override	3 positions (Open/Auto/Close)
Media	Air, water
Coil voltage	Latch
Switching time	40-60 msec
Electric connection	22AWG cable
Standard protection class	IP66

* Can only be operated with supplied coil

Coil resistance vs input voltage range

Resistance [?]	Suitable input voltage range [V]
1	8 - 12
4	12 - 18

G75-A3P-latch-irrigation-solenoid-valve-Dimensions

G75-A3P-2W-Plumbing-Diagram

G75-A3P-2W-latch-irrigation-solenoid-valve-Plumbing-Diagram

G75-A3P-three-way-latch-irrigation-solenoid-valve-Plumbing-Diagram
