Armas Electric Float Level Control Valves 600 Series-IrriFinder

Armas 600 Series - Electric Float Level Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

Electric Float level control valve parts

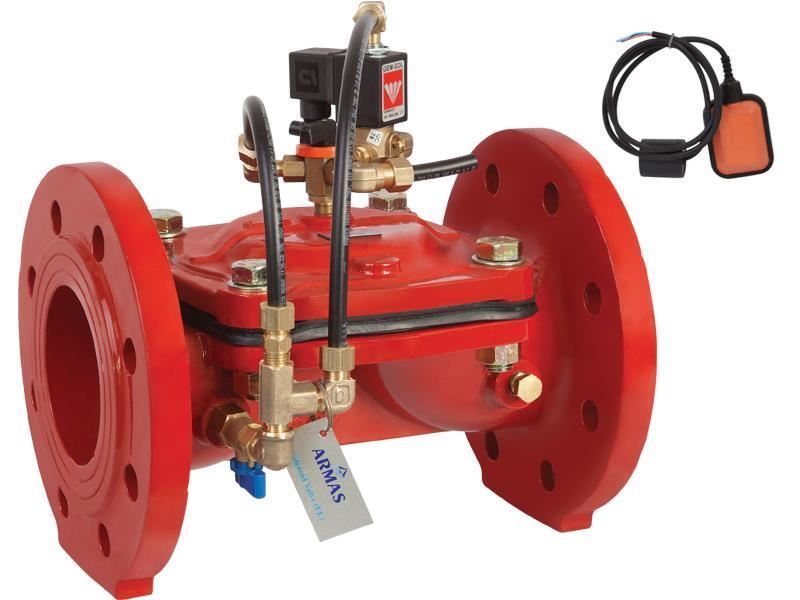

ARMAS 600 Series Electric Float Level Control Valve

Armas Electric Float Level Control Valve is the hydraulic control valve designed to control water level continuously by means of electrical float placed in reservoirs and tanks. Electrical float sends signal to solenoid coil on main valve when water level decreases below set level. Main valve is opened and ensures that tank or reservoir will be filled permanently. When water reaches maximum level, electrical float sends signal to solenoid coil again and main valve is closed as full sealed.

COMPONENTS:

3- Way Selector Valve
Ball Valves
In-line Finger Filter
Plug
Solenoid Pilot Valve
Electric Float Switch

ARMAS 600 Series Electric Float Level Control Valve Sample Application
