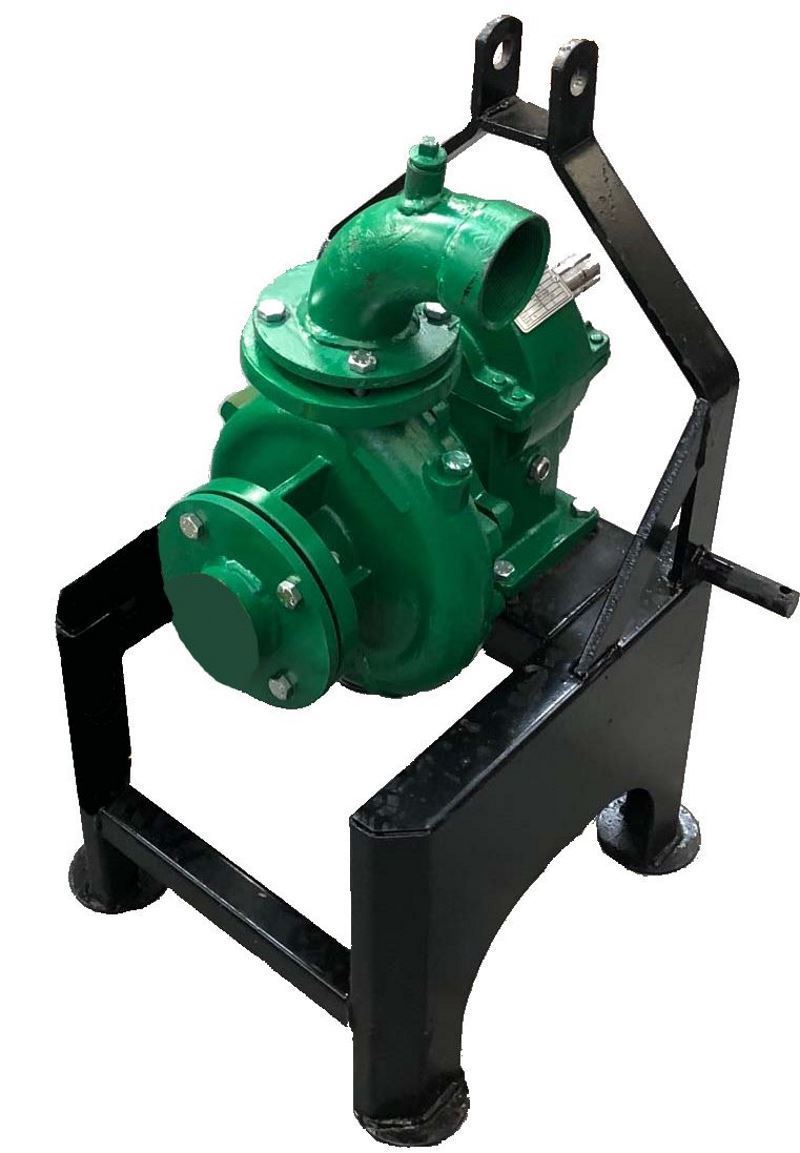

    DKT 50 PTO Pump

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    Reliable highly efficient small DuCaR PTO driven irrigation pump. 35 m³/h @75 m head. Comes with frame, fittings and drive shaft!

    Capacity
    :
    10-45 m³/h
    Head
    :
    50-90 m
    Working Temperature
    :
    -10 º C - + 140 º C
    Minimum Tractor Power
    :
    35 HP
    PTO RPM X Gear Ratio
    :
    545 x 6.43
    Inlet
    :
    50 mm (2")
    Outlet
    :
    63 mm (2.5")
    FREE PARTS
    :
    Inlet/Outlet Flange Fittings
    3 Point Linkage Carry Frame
    PTO Drive Shaft
    Made in
    :
    Turkey
    Manufacturer part number: DKT50-PUMP

    DuCaR PTO Pumps are an excellent choice for high performance sprinkler irrigation. These pumps are quick and easy to setup to begin irrigating in minutes! If you have a tractor that you want to utilize as the power source, PTO Pumps are a great choice and are capable of large amount of water flow output with high pressure performance. These pumps are completely cast iron construction, reliable and efficient that you can use long years.

    Every farmer should have one of the DuCaR tractor PTO pumps. No more messing around with small engines or maintaining a dedicated trailer mounted water pump engine. Vary the PTO speed and engine rpm to change your discharge pressure and flow rate. Ideal for large water transfers, temporary irrigation and so much more.

    FEATURES

    • Each unit is supplied with the 3-point linkage frame, inlet/outlet flanged fittings and a PTO shaft.
    • The mechanical shaft seal, heavy duty impeller and pump liner ensuring many years of reliable operation.

    Technical Specifications
    Pump Type m³/h 0 10 20 30 40 45 50   Power
      l/s 0 2.7 5.5 8.3 11.1 12.5 13.8 HP

    DKT-50

    		 Total Height HM (mss) 110 92.5 85 78 65 50 40 35



     DuCaR PTO DKT 50 performance table



     pto pump parts



     PARTS LIST
    NO PART NAME NO PART NAME
    26 DRAIN PLUG 13 OIL THROWER
    25 KEY 12 PINIDN
    24 KEY 11 MAIN GEAR
    23 BALL BEARING 10 GEAR SHAFT
    22 BALL BEARING 9 GEAR BOX
    21 BALL BEARING 8 KEY
    20 BALL BEARING 7 WEAR RING
    19 SHAFT END NUT 6 SHAFT END NUT
    18 OIL SEAL 5 MECHANICAL SEAL
    17 BEARING COVER 4 SUCTION NOZZLE
    16 BEARING COVER 3 SHAFT
    15 OIL SEAL 2 IMPELLER
    14 BEARING COVER 1 VOLUTE CASING
