Differential Pressure Sustaining Control Valve 600 Series-IrriFinder

Armas 600 Series - Differential Pressure Sustaining Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

Differential Pressure Sustaining Control Valve 600 series parts

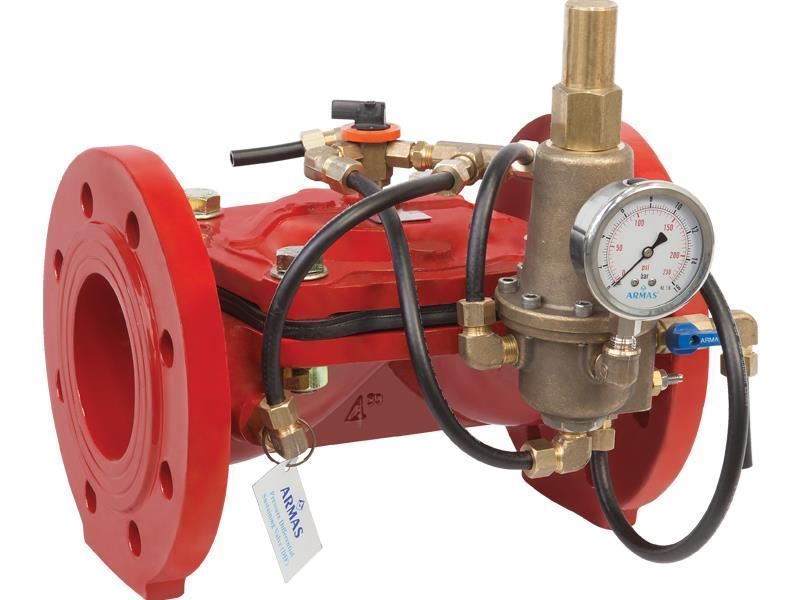

ARMAS 600 Series Differential Pressure Sustaining Control Valve

Armas Differential Pressure Sustaining Control Valve is the hydraulic control valve which maintains a preset pressure differential between its upstream and downstream sides. Required upstream pressure can be adjusted by the pilot easily. The valve can control heating and cooling systems, booster pump discharge, bypass lines, filters and other similar systems.

COMPONENTS:

3- Way Selector Valve
Ball Valve
In-line Finger Filter
Differential Pressure Sustaining Pilot
Pressure Gauge

ARMAS 600 Series Differential Pressure Sustaining Control Valve Sample Application

Differential Pressure Sustaining Control Valve 600 series sample
