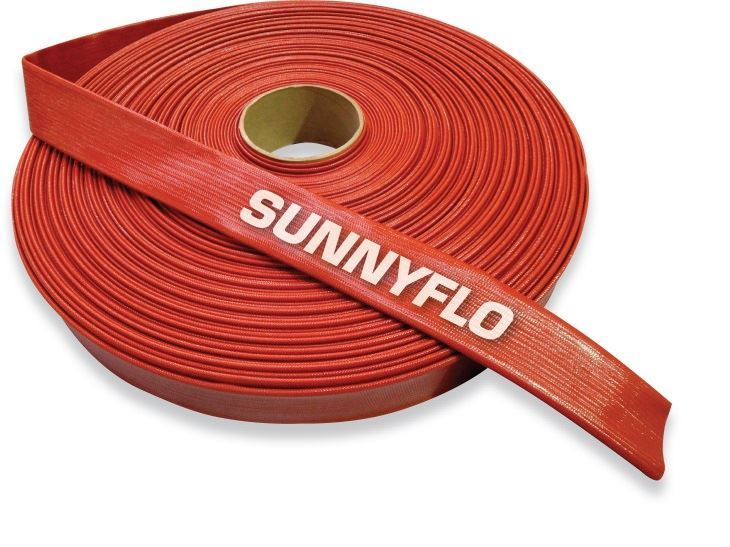

    SunnyFlo Red PVC Mid Pressure Layflat Hoses

    Be the first to review this product

    Suitable for MEDIUM pressure applications. BRAIDED reinforcement, PVC cover & inner lining.


    Inside Diameter Range
    :
    1.5" (38 mm) - 6" (152 mm)

    Wall Thickness
    :
    2.0 - 3.00 mm

    Working Pressure Range
    :
    150 psi (10 Bar)



    Made in USA
    Manufacturer part number: Sunnyflo-Red
    *

    Sunnyflo®

    Sunnyflo® is a braided layflat budget hose, which is ideal for lighter duty pumping applications in the industrial, irrigation and mining industries. Crusader Hose offers Sunnyflo® for golf course irrigation, life-style farm living, discharging water from pump or water transfer. These are just some of the many applications where Sunnyflo® hose can be used. Sunnyflo is imported from the USA.

    Sunnyflo® Red

    A medium pressure hose made of thicker braided polyester yarns able to sustain higher working pressures. Also has PVC cover and inner lining extruded for maximum bonding. Its working pressure is up to 10 bar.

    Construction: Braided Polyester Yarns plus PVC cover and inner lining extruded for maximum bonding

    Working Temperature:-21ºC to 76 ºC

    Primary uses:

    - Golf course irrigation

    - Open-end discharge

    - Life-style farming



    Technical Specifications
    Inside diameter
    mm    		 Inside diameter
    inches    		 Working Pressure
    Bar    		 Burst Pressure
    Bar    		 Wall Thickness (mm) Standard Coil
    38 1½” 10 31 2.00 100 m
    50 2” 10 31 2.20 100 m
    76 3″ 10 31 2.40 100 m
    102 4” 10 31 2.60 100 m
    152 6″ 10 31 3.00 100 m
