Crusader Flexibore 100 Layflat Bore Hoses-IrriFinder

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore^® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

Flexibore^® is constructed by integrating thermoplastic polyurethane into a woven textile fabric of high tenacity polyester. The heavy-duty internal fabric gives the hose flexibility and great tensile strength in one continuous length. Since Flexibore^® hose can sustain both the submersible pump and water weight, no safety cable is required. Flexibore^® is a flexible riser that will suit many borehole applications and is compatible with most submersible pumps.

It is made to suit most lower-flow bore water pumping applications and is manufactured in 32mm and 50mm diameters and is compactly coiled up in a continuous length. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore^® features including:

Easy to install and rapid retrieval
Secure and easy-to-fit coupling
Simple power cable attachment
Continuous length
Totally corrosion and microbiological damage resistant and will not succumb to iron bacteria build-up
No kinking like polypipe

Primary Uses:

Bore water pumping
Lowering groundwater table in mines

Technical Specifications

COUPLING SET -304 S/S

Two sets required per hose assembly

One set = one coupling & one clamp

JOINER SET - 304 S/S

One set = one joiner & 2 clamps

MINI INSTALLATION ROLLER - v2

To suit 4" - 8" bore casing

0 review(s)

Write your own review Close

Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
1 2 3 4 5
Excellent

Your name *

Your email *

Subject: *

Enquiry *

Irrigation Unit Conversions

Convert a given value and unit to different unit type. Conversions are available for flow rate, area, distance, time, volume, pressure, power, precipitation, salinity, and speed.

Click here to see unit descriptions.

Flow Rate:
		to

Area:
		to

Distance:
		to

Time:
		to

Volume:
		to

Pressure:
		to

Power:
		to

Precipitation (Water Application) Rate:
		to

Salinity:
		to

Speed:
		to

Reference: Washington State University

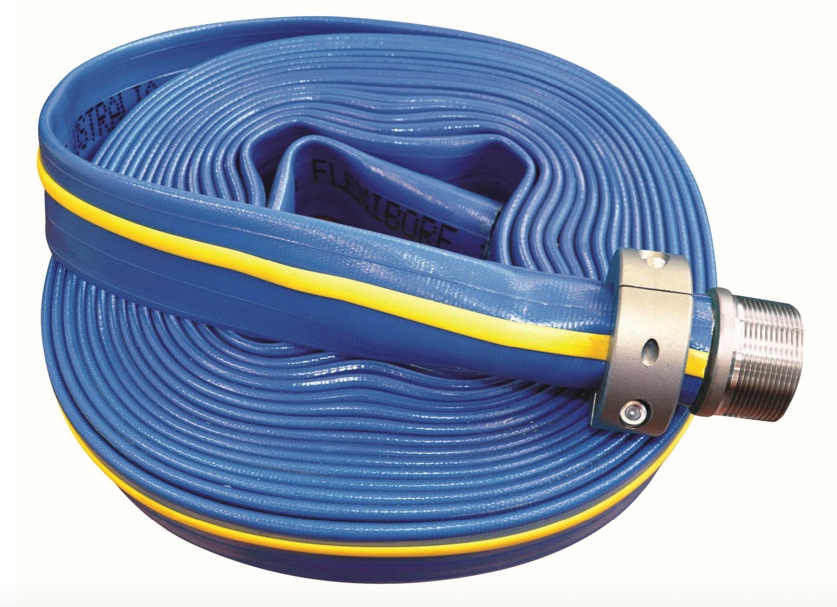

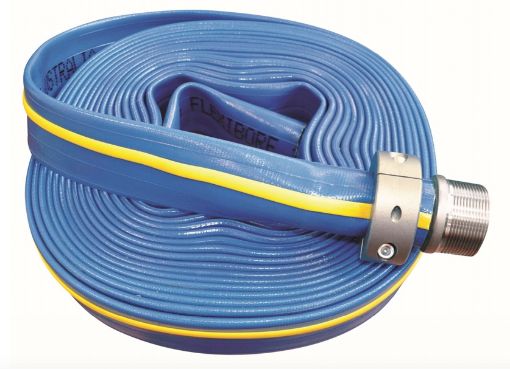

Flexibore 100 Layflat Bore Hose
