Crusader Flexibore 300 Layflat Bore Hoses-IrriFinder

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore^® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

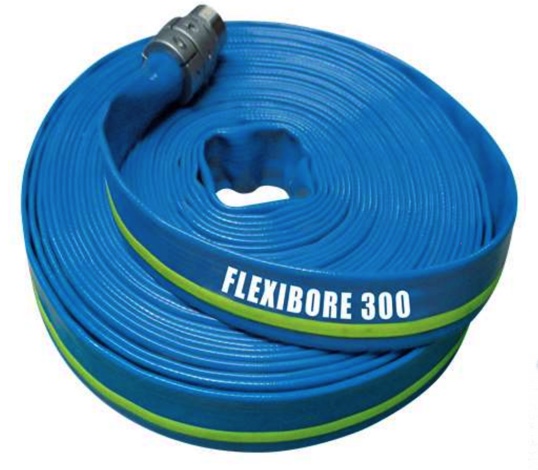

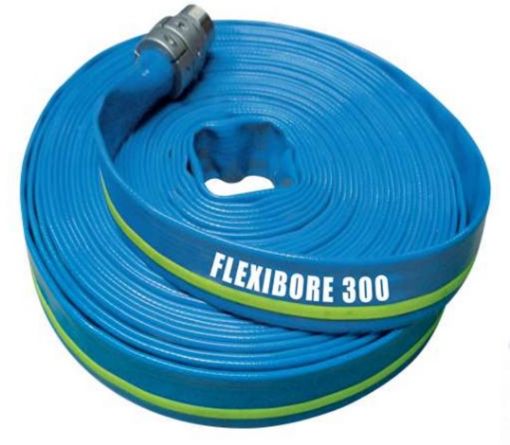

Flexibore^® 300 is a high quality layflat hose for use inside boreholes and is manufactured by weaving a textile reinforcement of high-tensile polyester and encasing it with hydrolysis-resistant polyurethane. The woven polyester fabric gives the hosea high burst pressure for deep well pumping. It is also designed to handle the weight of the pump plus water up to 300m inside the bore.

Flexibore^® 300 can swell up to 10% making it extremely efficient in reducing pumping costs and friction loss. By dilating under pressure, no internal build-up of iron bacteria occurs as seen with rigid pipe use such as polypipe or fibreglass.

It is made to suit most bore water pumping applications and is manufactured in a large range of diameters, ranging from 76mm to 203mm. The hose can be available in a continuous length of up to 300m and each roll is fully tested prior to despatch. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore^® 300 world's best quality features including:

Large-diameter deep ground water pumping up to 300m
Ultra-high pressure
High tensile for very large submersible pumps
Flexible so can be rolled up
Swells so no internal build-up
Rogorously tested
Secure coupling

It is ideal for:

Deep water bore pumping
Low cost pumping
Ease of installation and rapid retrieval
Continuous length

Technical Specifications

Other specifications:

Water pH range: 3 to 9
Maximum operating temperature: 60° C
Maximum diametric swell: 10%
Maximum extension: 0.5%
Safety factor: 2:1
