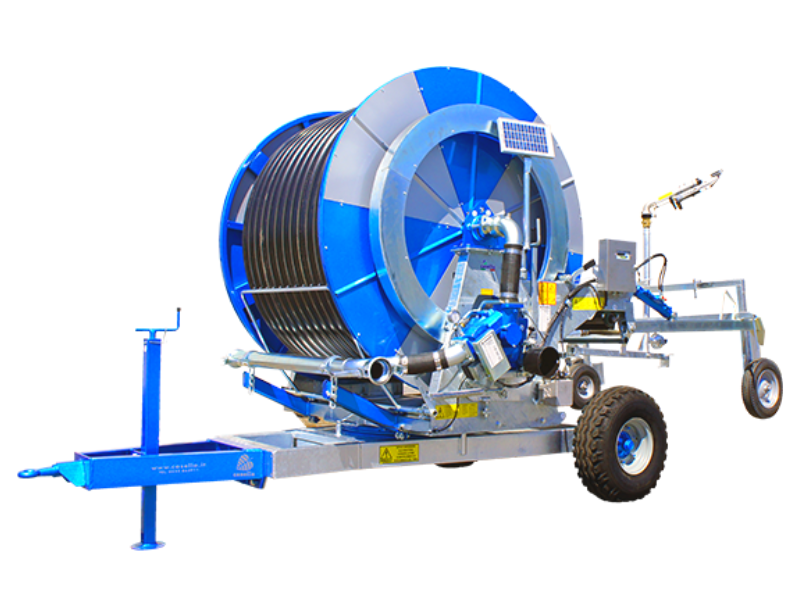

    Casella HY-TURBINE S 90/300 Hard Hose Irrigator

    Manufacturer: Casella
    Be the first to review this product

    Do not buy a hard hose irrigator before comparing it with Casella's quality & efficiency! Best price guarantee, easy to use, efficient, durable, medium range irrigator.

    Hose Length
    :
    300 m
    Hose Diameter
    :
    90 mm
    Hose Thickness
    :
    6.4 mm
    Working Pressure
    :
    70 - 100 psi
    Water Flow
    :
    400 - 900 l/min
    Effective Spray Width (Diameter)
    :
    70 - 80 m
    Total Irrigated Area
    :
    340 X 560 m = 190,400 m² (19 Hectare) in 7 days
    Sprinkler
    :
    DuCaR JET 50 or Sime Royal
    Weight
    :
    2100 kg
    Mechanism
    :
    4-Speed Gear Box directly integrated to turbine
    Rewind Speed Control
    :
    Solar-Powered Hydro Computer 160
    Manufacturer part number: HY-TURB S 90/300

    CASELLA Hard Hose Irrigator HY-TURBINE S 90/300

    Applications

    Agriculture: Small to medium crops, pastures and dairy farms

    Turf Irrigation: Golf, race courses, playing fields and gardens

    Dust Control: Mining and construction sites

    FEATURES

    • Heavy duty design
    • Hot dip galvanised chassis
    • Travel shut-off mechanism
    • Highly efficient turbine
    • 4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
    • Sensitive speed control
    • Solar energy powered computer for adjusting the rewinding speed
    • 270° Manual Rotation of Upper Frame
    • Hydraulic lifting of the sprinkler trolley
    • Trolley with 3 rubber wheels
    • Flexible Hose Ø80 for Water Inlet
    • Tyres : 10.0 / 80-12
    • Joint for PTO drive shaft
    • Water Flow : 400 - 900 l/min
    • Comes with Sime Royal Sprinkler Head
    • Excellent Water Uniformity
    • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
    • Easy and safe operation
    • Very low labour requirement : The Cassella HY-TURB-S can easily be operated by one man and the labour consists mostly of driving a tractor.
    • Made in Italy

    Introducing the Casella Turbine Driven 90/300 Hard Hose Irrigator, engineered to revolutionize your irrigation needs. Featuring a robust hat dip galvanized frame, this irrigator ensures unparalleled strength and durability, capable of withstanding even the most demanding agricultural environments. Powered by a high-performance turbine, it delivers precise and efficient water distribution across your fields. With its 90/300 hose configuration, it offers versatility and coverage for various crop layouts. Maximize your productivity and yield with the Casella Turbine Driven 90/300 Hard Hose Irrigator – the ultimate solution for modern farming.



    Download Catalog
    Download Casella Quality Comparison Document
    Download Casella Hard Hose Irrigators Rainfall Chart



    Casella Turbine

    CASELLA Turbine

    Turbine driven hard hose irrigators produce the the power reqired to rewind the hose reel by using
    the water flow going through a turbine. Hence why efficiency of the turbine is crucial to run the irrigator.

    Casella's turbine is directly integrated to the gearbox to minimise the power loss between the turbine and gearbox.

    Also, its by-pass mechanism specifically designed to handle water flow rate between 600 and 1250 l/min with minimum friction loss.

    The gear box is directly connected with turbine and ring gear with ultimate technology in order to provide minimum pressure loss and enhanced performance for the hose reel.

    The turbine's cap can be easily removed to clean if there is any solid material in the housing.

    The highly efficient and durable 4-speed gearbox has manual break system that will be used during hose unrolling process and easy to use gear shift mechanism.

    The water flow adjustment in the turbine is controlled by an electric motor which is constantly operated by the machine's computer. It seamlessly controls the water flow rate in the tubine based on the desired run speed of the irrigator.
    HY-TURB-M-110-400-Gearbox-Turbine
    Casella Hydraulic Lift

    Hydraulic lifting system (connected to the tractor) for lifting up the trolley.
    Worlds strongest hard hose irrigator frame

    The strongest hard hose irrigator frame with no plastic covers!

    Casella Hydro Control 160 Computer System

    Solar energy powered rewinding speed control from 5 to 100 m/h.
    During irrigation the back-lit display shows: irrigator recovery speed in m/h, remaining length to be rewound, remaining time to the end of irrigation.
    Casella Computer
    HY-TURB-M-110-400 Pipe Sizes

    The largest diameters on all major connection pipes of the irrigator to save energy.
    HY-TURB-S-82-320 Drum Rotation Mechanism

    Upper body 270° rotation mechanism.
    HY-TURB-M-110-400-Drum

    Big Casella quality drum consists of single piece sheet metal in the centre and strong side tabular bars. One piece sheet metal in the centre of the drum is crucial for the life span of the hose.
    HY-TURB-M-110-400-drum-support

    Strong support bar with bearings for the hose reel
    HY-TURB-S-82-320 Trolley

    Width adjustable sprinkler trolley with 3 rubber wheels.
    HY-TURB-S-82-320-tow-bar

    Front tow bar connection with manual lifting jack.
    HY-TURB-S-75-300-Wheel

    Wide wheels for maximum stability
    Casella label



    Technical Specifications of DuCaR JET 50 Sprinkler Head

    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    14 0.55 3 44 29 95 246,7 14,8 65 2640 0,65 5,6
    14 0.55 4 56 32 105 286,7 17,2 76 3215 0,79 5,3
    14 0.55 5 70 34 112 315 18,9 83 3629 0,90 5,2
    16 0.62 3 44 30 98 308,3 18,5 81 2826 0,70 6,5
    16 0.62 4 56 34 112 358,3 21,5 95 3629 0,90 5,9
    16 0.62 5 70 35 115 391,7 23,5 103 3846 0,95 6,1
    18 0,70 3 44 32 105 390 23,4 103 3215 0,79 7,3
    18 0.70 4 56 35 115 445 26,7 118 3846 0,95 6,9
    18 0.70 5 70 38 125 498,3 29,9 132 4534 1,12 6,6
    18 0.70 6 85 41 134 553,3 33,2 146 5278 1,30 6,3
    20 0.78 3 44 35 115 463,3 27,8 122 3846 0,95 7,2
    20 0.78 4 56 38 125 548,3 32,9 145 4534 1,12 7,3
    20 0.78 5 70 42 138 616,7 37 163 5538 1,37 6,7
    22 0.86 4 56 40 131 680 40,8 180 5024 1,24 8,1
    22 0.86 5 70 44 144 753,3 45,2 199 6079 1,50 7,4
    22 0.86 6 85 47 154 818,3 49,1 216 6936 1,71 7,1
    24 0.94 5 70 46 151 886,7 53,2 234 6644 1,64 8,0
    24 0.94 6 85 48 157 958,3 57,5 253 7234 1,79 7,9
    24 0.94 7 100 50 164 1020 61,2 269 7850 1,94 7,8
