Casella HY-TURBINE P 125/400 Hard Hose Irrigator

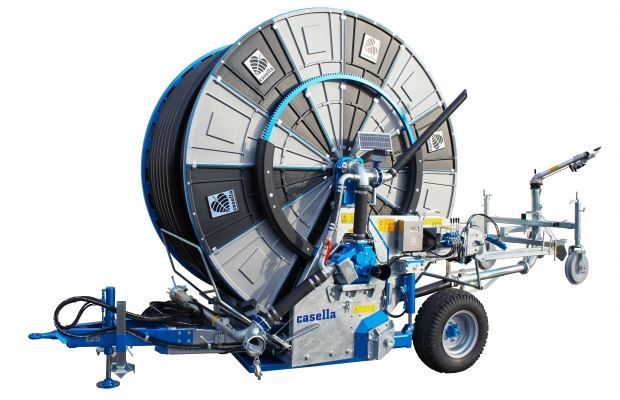

CASELLA Hard Hose Irrigator HY-TURBINE P 125/400

Applications

Agriculture: Medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

• Heavy duty design
• Hot dip galvanised chassis
• Individaully controlled hydraulick tyre lifting system
• Travel shut-off mechanism
• High efficient turbine
• 4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
• Sensitive speed control
• Solar energy powered computer 260 system will allow you to adjust the rewinding speed, pausing at the beginning and end of the run and slowly closing the solenoid valve at the end of run to stop the water in the entire system.
• Hydraulic rotation of platform (360°) with tractor connection
• Hydraulic lifting for sprinkler trolley
• Trolley with 2 Concrate Wheels and skid
• Flexible hose for water inlet
• Double (two sides) water inlets
• Tyres : 11.5 / 80-15.3
• Mechanical front brackets
• Hdraulic front foot
• Joint for PTO drive shaft
• Water Flow : 1200 - 1800 l/min
• Comes with Sime Explorer Sprinkler Head
• Excellent Water Uniformity
• Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
• Easy and safe operation
• Very low labour requirement : The Cassella HY-TURB-P can easily be operated by one man and the labour consists mostly of driving a tractor.
• Made in Italy

This machine is specifically designed for the highest stability and durability for irrigation applications require long and big hose sizes. The machine can be configured with hose diameter up to 140 mm and 450 m length. Its hydraulic control mechanism will allow you to run the machine securely when it sits on the ground.

	CASELLA Turbine This type of machines picks the power necessary to the hose recovery by exploiting the flow of water through a turbine: Two solutions are available:
1 - The classical turbine which has been used over 15 years; large diameter and solid aluminium alloy body and bronze impellers with closed blades. Both components have been precision engineered by numerical control lathe for accurate coupling and minimization of pressure losses. Stainless steel shaft with Widia seal ensure a longer life even in the presence of sand and other impurities. 2 - New volumetric turbine conceived for operation with even lower pressure losses and recommended flows over 50 to 60 m3/h. The construction is in die-cast aluminium processed on CNC centre with stainless steel shafts and Widia seal, for operation with electronic compensation for the LT-LLT-LLTS models.
The gear box is directly connected with turbine and ring gear with ultimate technology in order to provide minimum pressure loss and enhanced performance for the hose reel.
	Hydraulic pump and lifting system for trolley.
Casella Hydro Control 260 Hose re-winding control 5 to 250 m/h. During irrigation the back-lit display shows: irrigator recovery speed in m/h, remaining length to be rewound, remaining time to the end of irrigation. Solar energy powered rewinding speed control panel.
Largest diameters on all major connection pipes to save energy.	1. Strong Double Water Inlet 2.Flexible hose connection to reduce vibrations
Big Cassella Quality Drum	Support for Big Drum
Wide wheels for maximum stability
