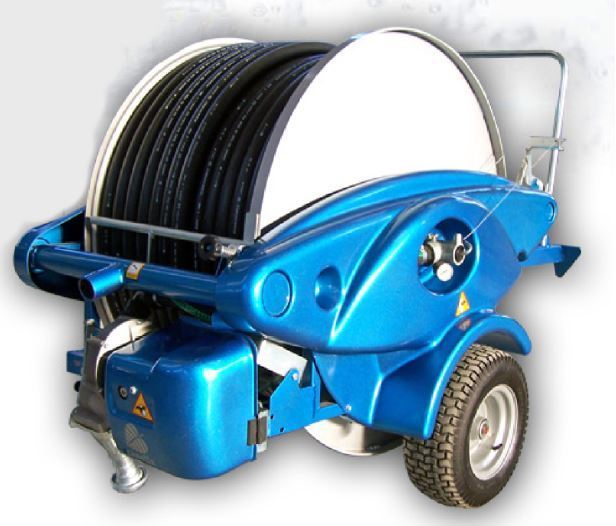

    Casella Garden 50/160 Hard Hose Irrigator

    Manufacturer: Casella
    Be the first to review this product

    Compact, easy to use small hard hose irrigator perfect for hobby farms and horse arenas.

    Hose Length
    :
    160 m
    Hose Diameter
    :
    50 mm
    Hose Thickness
    :
    4.3 mm
    Working Pressure
    :
    45 - 90 psi
    Water Flow
    :
    90 - 280 l/min
    Effective Spray Width (Diameter)
    :
    36 - 50 m
    Total Irrigated Area
    :
    195 X 350 m = 68,250 m² (6.8 Hectare) in 7 days
    Sprinkler
    :
    DuCaR Atom 28
    Weight
    :
    285 kg
    Mechanism
    :
    Gear Box directly integrated to turbine
    Rewind Speed
    :
    10 - 40 m/h
    Manufacturer part number: 50T

    CASELLA Garden 50/160 Hard Hose Irrigator

    Applications

    Agriculture: Small crops and hobby farms

    Turf Irrigation: Golf, race courses, playing fields and gardens

    Dust Control: Mining and construction sites

    FEATURES

    • Heavy duty design
    • Sprinkler trolley with quick unhooking mechanism
    • Travel shut-off mechanism
    • Highly efficient turbine and gear-box
    • Minimum pressure required 3.5 Bar, maximum 8 Bar.
    • Sensitive speed control between 10 to 40 m/h
    • Coaxial reducer to rewind the hose with hydraulic turbine.
    • Trolley with 2 rubber wheels
    • Compact dimensions, optimum weight balancing on wheels
    • Adjustable sector irrigator with nozzles of different diameters
    • Automatic stop at the end of the work
    • Water Flow : 90 - 280 l/min
    • Comes with Sime Ambo PC
    • Excellent Water Uniformity
    • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
    • Easy and safe operation
    • Very low labour requirement : The Casella Garden 50/160 can easily be operated by one man and the labour consists mostly of driving a 4-wheeled bike.
    • Made in Italy



    Download Catalog
    Download Casella Quality Comparison Document
    Download Casella Hard Hose Irrigators Rainfall Chart



    Technical Specifications
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
    10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
    10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
    10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
    12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
    12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
    12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
    12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
    14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
    14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
    14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
    14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
