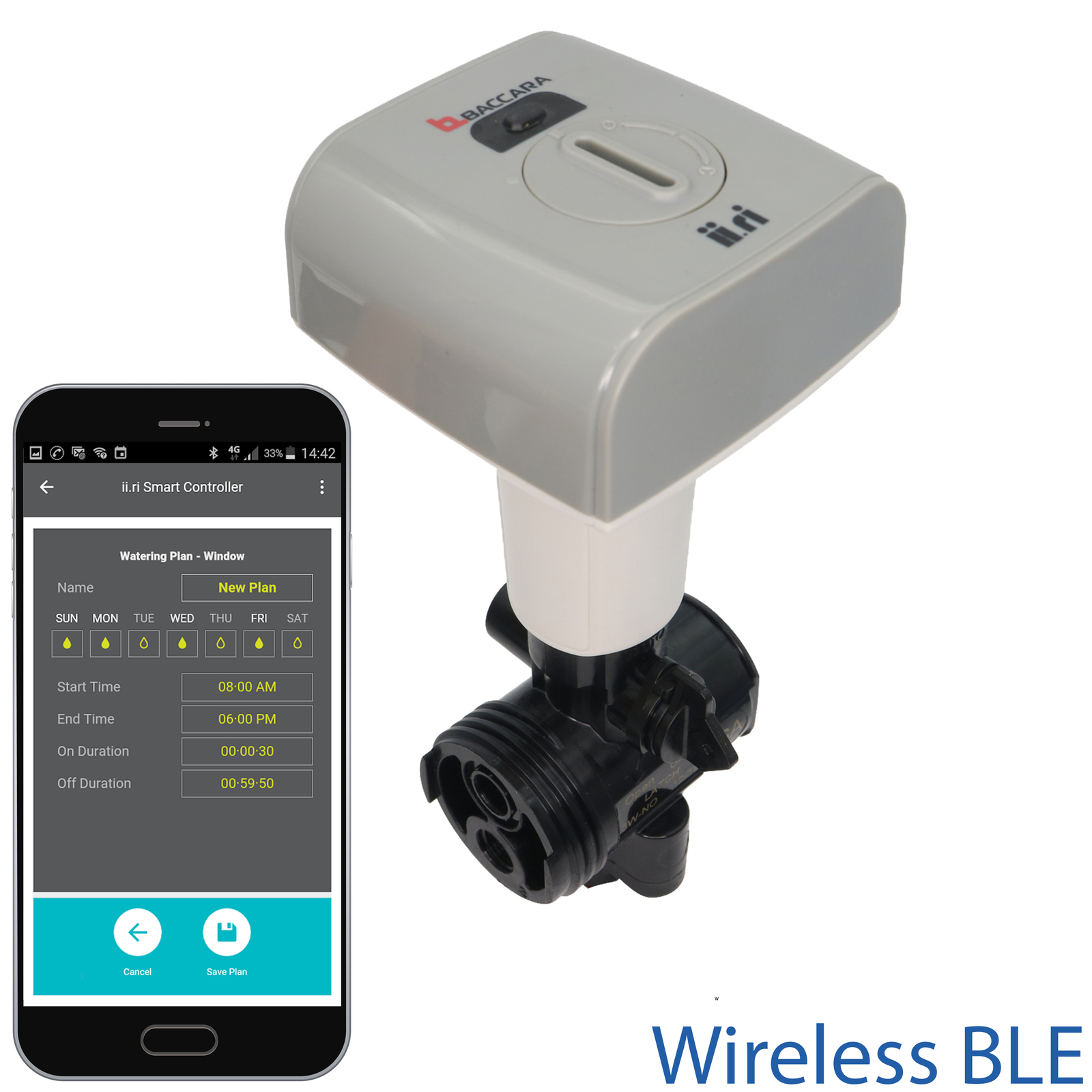

ii.ri-C-VSA | 1/8" BSP Smart Irrigation Controller 3W

Highlights

• Single Station Irrigation Controller
• Wireless operated by smart device
• Four irrigation program types
• Min required iOS 7 or Android V4.3
• Battery Included

Programming Key Features

* Four different irrigation plans

Baccara ii.ri The smart and simple way to control your garden irrigation.

Manage and control your garden irrigation system through a user-friendly smartphone app.Until recently the world of irrigation controllers was reserved for professional gardeners, requiring complicated technical and operational know-how. But that’s all history now.
The new ii.ri by Baccara, is the first irrigation controller that allows anyone and everyone to manage and control their garden irrigation system through a user-friendly smartphone app.

• The ii.ri smartphone irrigation controller features four different built-in plans that address most of the automatic irrigation needs
• Programming the ii.ri is simple and intuitive, nevertheless it requires a little know-how in order to familiarize yourself with it
• It is recommended to define the irrigation areas before starting the programming process
• The ii.ri can actuate one valve each time, therefore, one controller would be used for each irrigation area.
• There is no need to connect the ii.ri to the smartphone during the programming process.
• The irrigation specifications depends on the type of field crops, flowers, trees, etc and may vary depending on the seasons.
• The ii.ri it is self-energized by an internal battery and does not require any additional wiring or power supply.
• The ii.ri app must be installed and running on the smartphone

Technical Data

Function	3 Way Latch
Pressure range	0 to 8 bar
Temperature range	Fluid : 5º to 50ºC (no freezing) Ambient : -5º to 50ºC
Communication range	Up to 10 m (328 feet)
App Downloading	Google Play or Apple Store
Pairing code	Not required
Battery type	CR123
Mounting	Direct mounting on UNEF 3/4"
Standard / Certification	• CE • Federal Communications Commission (FCC)
Standard protection class	• Dust and watertight IP68

ii.ri-C-VSA | 1/8" BSP Smart Irrigation Controller 3W Plumbing Diagram
