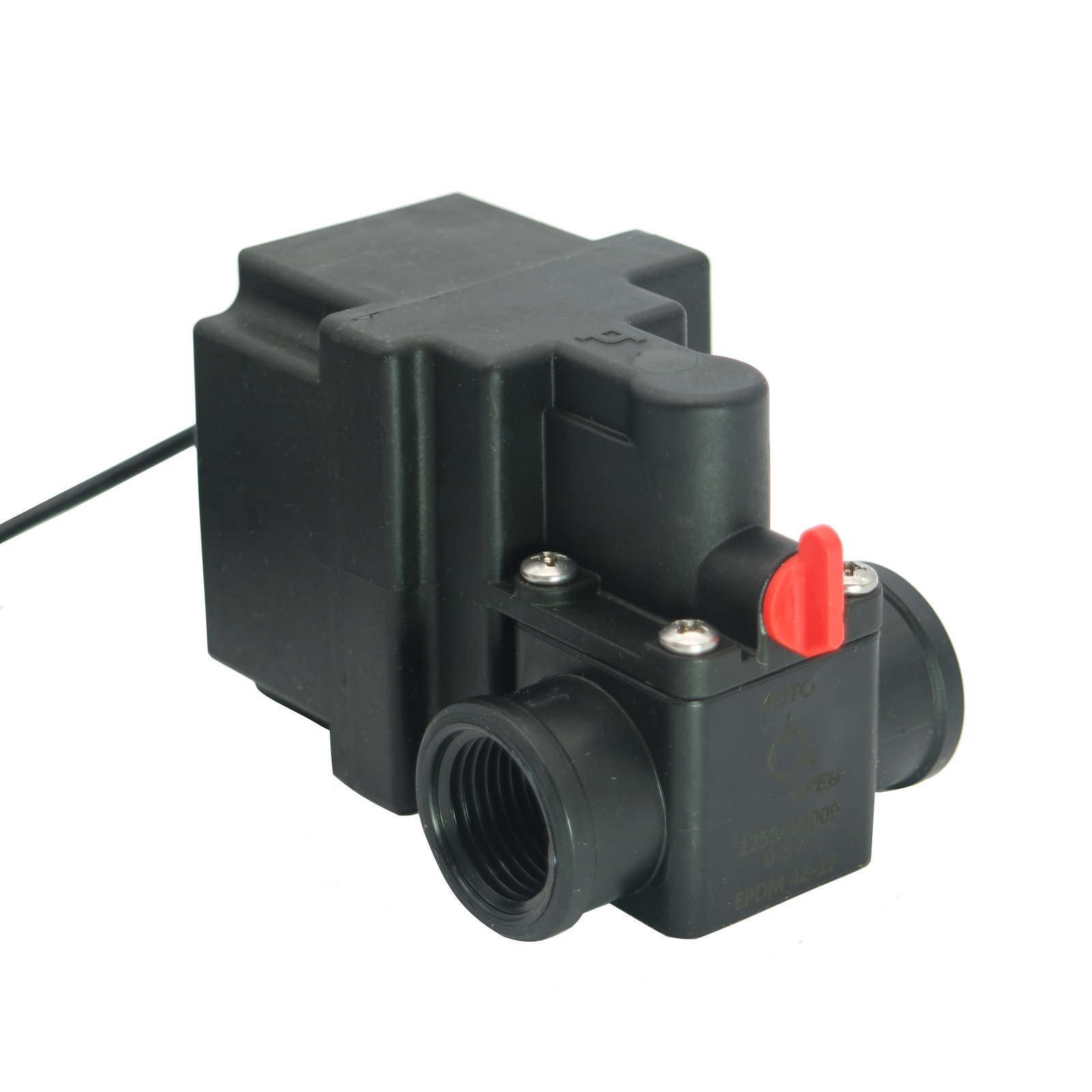

    1/2" BSP 2W NC 12-24 V AC Orifice 8.0mm Pressure Control Signal: 0-5 V EPDM with MO

    Manufacturer: Baccara
    Be the first to review this product
    Size
    :
    1/2" BSP
    Function
    :
    2 Way Normally Closed (with back-up battery*)
    Valve Operation
    :
    Proportional
    Body Material
    :
    Plastic
    Seal
    :
    FPM (Viton®)
    Pressure Range
    :
    Vacuum applications : (-1) - 0 Bar
    Media
    :
    Liquids & Gases*

    Technical Data

    Function 2 Way NC (with back-up battery)
    Back battery is to close the valve when there is a sudden power shutdown, which means the valve is normally close when not energized
    Ports size 1/2" BSP & NPT
    Orifice size 8mm (Up to 600 l/hour)
    Pressure range • Vacuum applications : (-1) - 0 Bar
    •     Pressure applications : 0 - (+1) Bar
    *For other pressures, please consult our technical
    sales department
    Temperature range Fluid : -10º to 45ºC (no freezing)
    Ambient : -10ºC to 45ºC
    Materials In contact with media :
    Valve body :
    • Standard : PVC (UV Protection)
    •     Optional : According to customer demand or
    application (e.g Stainless steel)
    Diaphragm & seals : FPM (Viton®), EPDM
    Not in contact with media :
    Operator housing : PP (UV protection)
    Manual override : Acetal (Manual override is standard)
    Media • Liquids & Gases
    *Please consult our technical sales department for a
    specific media
    •     Application examples :
    • Irrigation fertilizing systems
    • Medical devices
    Control signal 0-5V or 4-20mA
    Valve stroke resolution < 0.01mm
    Valve stroke accuracy < ± 0.01 mm
    Full stroke duration 0.6 sec, each direction
    Current consumption • Standby Mode (Holding position): 25 [mA]
    • Active Control Mode: Up to 120 [mA]
    • Full Open/Close Mode (starting current): Up to 600 [mA]
    Supply voltage 12-24 [V] ±5% AC (50 or 60Hz) Or 12-24[V] ±10% DC
    *For other supply voltages, please consult our
    technical sales department
    *Current and voltage spikes protections might be
    required. Please consult our technical sales
    department
    Connection 5 wires cable (3m length) :
    • Black & red : Supply voltage (polarity is not restricted)
    • Green : 0-5 V analog control signal
    • Blue : 4-20 mA analog control signal
    • Yellow : Analog control signal common
    Recommended control
    signal resolution     		Voltage : 20 mV | Current : 0.064 mA
    Standard / Certification CE
    • EMC : EN55011 Group 1 - Class A | EN61000-6-1
    CFR 47 FCC Class A
    • SAFETY : IEC/EN61010-1
    Standard protection class IP67

    GEM-CPR-Isolated-Proportional-Fertigation-Chemical-Dosing-Valve



    GEM-CPR | Isolated Proportional Fertigation & Chemical Dosing Valve Plumbing Diagram

    GEM-CPR-Isolated-Proportional-Fertigation-Chemical-Dosing-Valve
