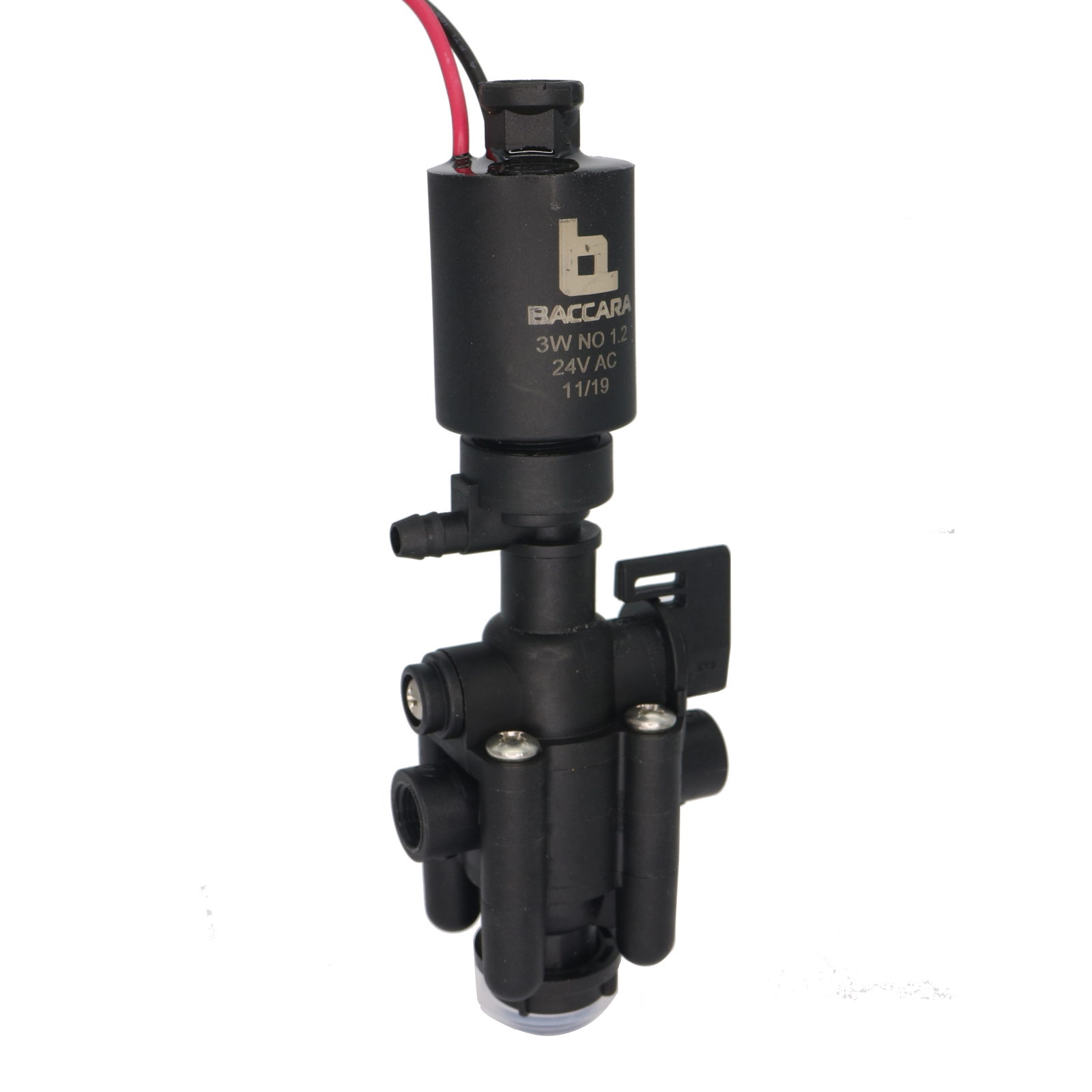

GALIT | High Flow Electro Hydraulic Relay Irrigation Solenoid Valve

Manufacturer: Baccara

Be the first to review this product

Size

:

1/8" BSP

Function

:

3 Way, NC, NO

Valve Operation

:

Pilot Operated

Body Material

:

Plastic

Seal

:

NBR

Pressure Range

:

1 - 10 bar

Media

:

Air, water

* Voltage

* Wires

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

Technical Data

Function	3 Way NC, NO
Ports size	1/8" BSP & NPT
Orifice size	5mm
Pressure range	1 to 10 bar
Temperature range	Fluid : 5ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC
Materials in contact with media	Main Valve: Reinforced Nylon Solenoid Operator: Stainless Steel 300 & 400 series Seals: NBR Spring: Stainless Steel AISI 300 series
Manual override	Manual override with 3 positions : • AUTO - for automatic operation (valve is open when solenoid is energized) • MANUAL - valve is kept open • CLOSE - valve is kept closed
Solenoid	Assembled with 3W NO 1.2mm G75 operator
Coil voltage	• Voltage and power consumption - see table
Standard protection class	IP66

Voltage and Current Table

Solenoid	Voltage	Inrush [A]	Holding [A]
2W 50 Hz	+10% n-20% V	0.3	0.19
2W 60 Hz		0.2	0.14
3W 50/60 Hz *		0.125	0.125
DC		4.5W

* Except 24V AC without Diode

Voltage and Power Consumption

	AC (W)	DC (W)
	50 Hz	DC (W)
V	2	4.5
12	•	•
24	•	•

• Available options

Coil resistance vs input voltage range

Resistance [?]	Suitable input voltage range [V]
4	6 - 9
9	12 - 14
12	14 - 16
23	18 - 21

Galit-High-Flow-Electric-Hydraulic-Relay-Irrigation-Solenoid-Valve-Dimensions
