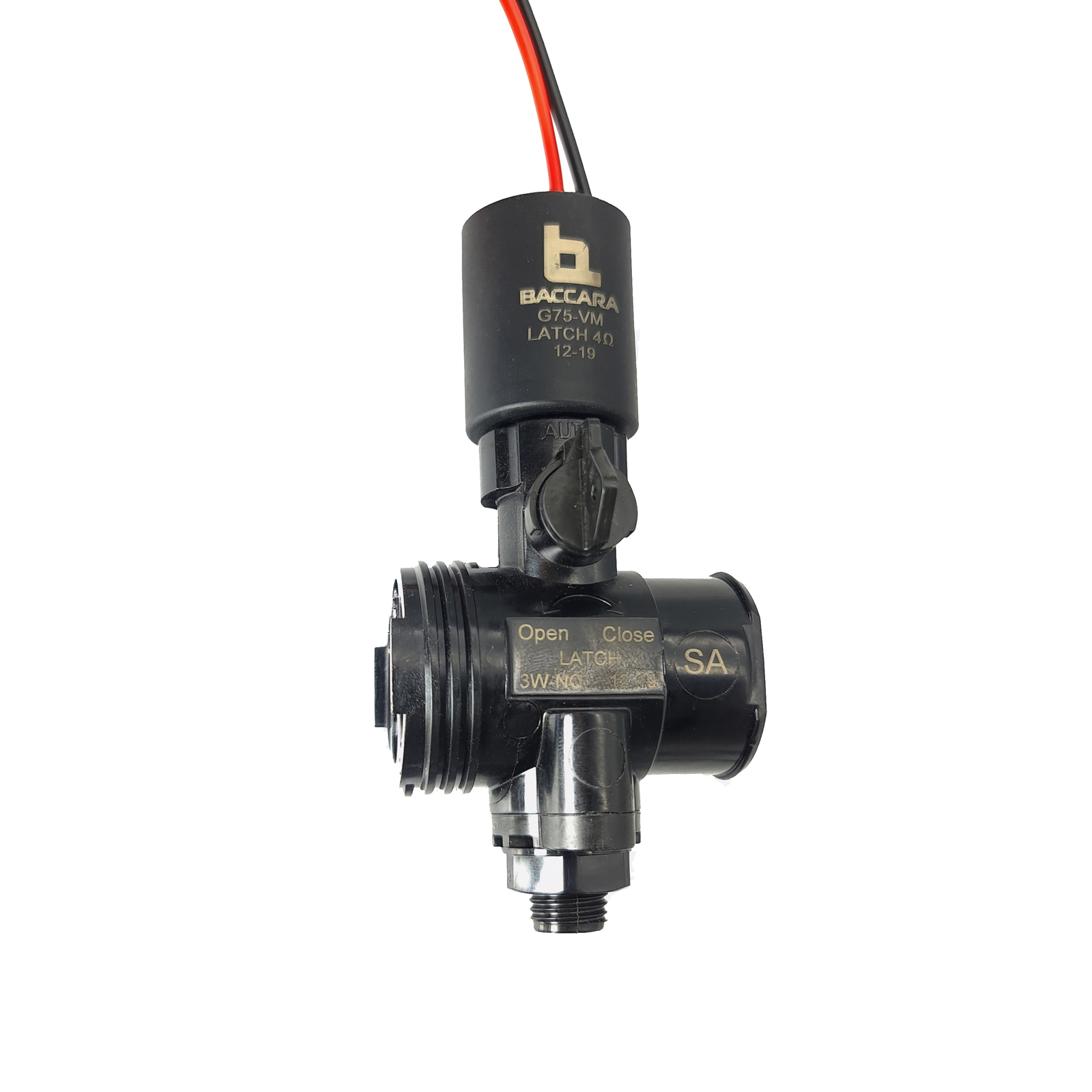

G75-VSA | Standalone Irrigation Solenoid Valve

Manufacturer: Baccara

Be the first to review this product

Size

:

1/8" BSP

Function

:

3 Way, NC, NO

Valve Operation

:

Direct Operated

Body Material

:

Plastic

Seal

:

EPDM

Pressure Range

:

0 - 8 bar

Media

:

Air, water

* Valve Function

* Voltage

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

Technical Data

Function	3 Way NC, NO
Ports size	1/8” BSPT & NPT
Orifice size	1 8 mm
Pressure range	0 to 8 bar
Switching time	30-50 ms
Temperature range	Fluid : 0ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC
Materials in contact with media	Manual override: Plastic (Reinforced Nylon) Main Valve: Plastic (Reinforced Nylon & POM) Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: EPDM
Mounting	Lock nut on the bottom COM port
Manual override	3 positions latch : Auto, Close, Open
Media	Air, water
Coil voltage	Latch
Standard protection class	IP66

* Can only be operated with supplied coil

PORT	NO	NC
1	Exhaust	Pressure
3	Pressure	Exhaust
COM	Out	Out

Coil resistance vs input voltage range

Resistance [?]	Suitable input voltage range [V]
4	6 - 9
9	12 - 14
12	14 - 16
23	18 - 21

G75-VSA-Standalone-Irrigation-Solenoid-Valve-dimensions

G75-VSA-Standalone-Irrigation-Solenoid-Valve

G75-VSA-Standalone-Irrigation-Solenoid-Valve-plumbing-diagram
