G75-VM Modular Manifold

Manufacturer: Baccara

Be the first to review this product

Size

:

1/8" BSP

Function

:

3 Way, NC, NO

Valve Operation

:

Direct Operated

Body Material

:

Plastic

Seal

:

EPDM

Pressure Range

:

0 - 8 bar

Media

:

Air, water

* Valve Function

* Station

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

A complete integrated manifold and mounting solution.

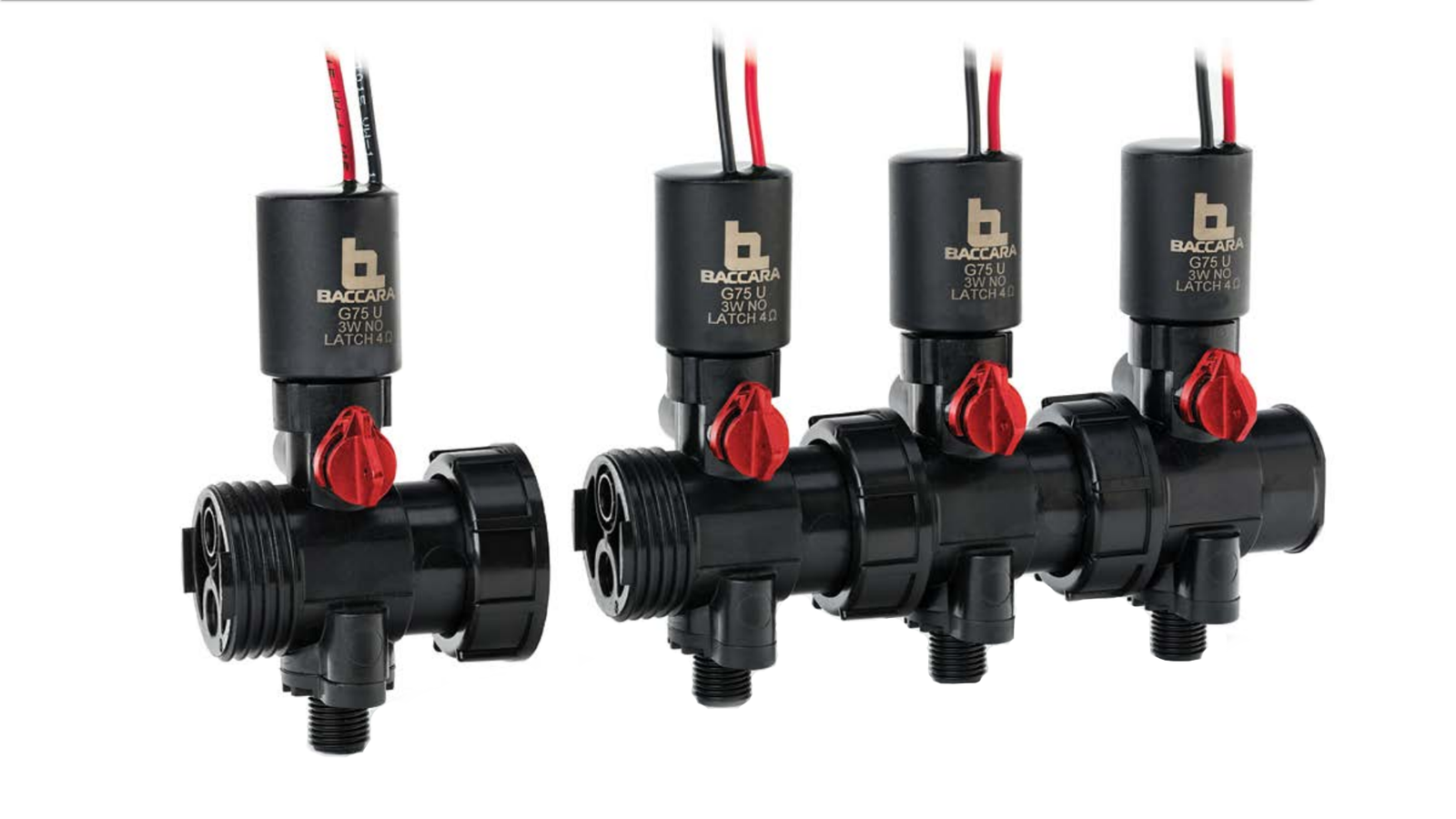

G75-VM Modular Manifold is a complete integrated manifold and mounting solution for irrigation application, in which up to 10 stations can be screwed together to create extended manifolds.

Baccara's G75-VM Modular Manifold Typical Applications:

Filtration
Irrigation
Water Treatment

Technical Data

Function	3 Way NC, NO
Orifice size	1.8 mm
Pressure range	0 to 8 bar
Temperature range	Fluid : 0ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC
Materials in contact with media	Manual override: Plastic (Reinforced Nylon) Main Valve: Plastic (Reinforced Nylon & POM) Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: EPDM
Mounting	With bracket
Modular connection type	Thread type connection
Modular connection assembly recommendation	• Manually tighten one station to another • Using tools and/or excessive torques may lead to irreversible damage
Manual override	3 positions latch : Auto, Close, Open
Media	Air, water
Coil voltage	Latch
Standard protection class	IP66

* Can only be operated with supplied coil

PORT	NO	NC
1	Exhaust	Pressure
3	Pressure	Exhaust
COM	Out	Out

Coil resistance vs input voltage range

Resistance [?]	Suitable input voltage range [V]
4	6 - 9
9	12 - 14
12	14 - 16
23	18 - 21

g75-vm-modular-manifold-dimension

G75-VM Modular Manifold Plumbing Diagram

G75-VM Modular Manifold-plumbing-diagram
