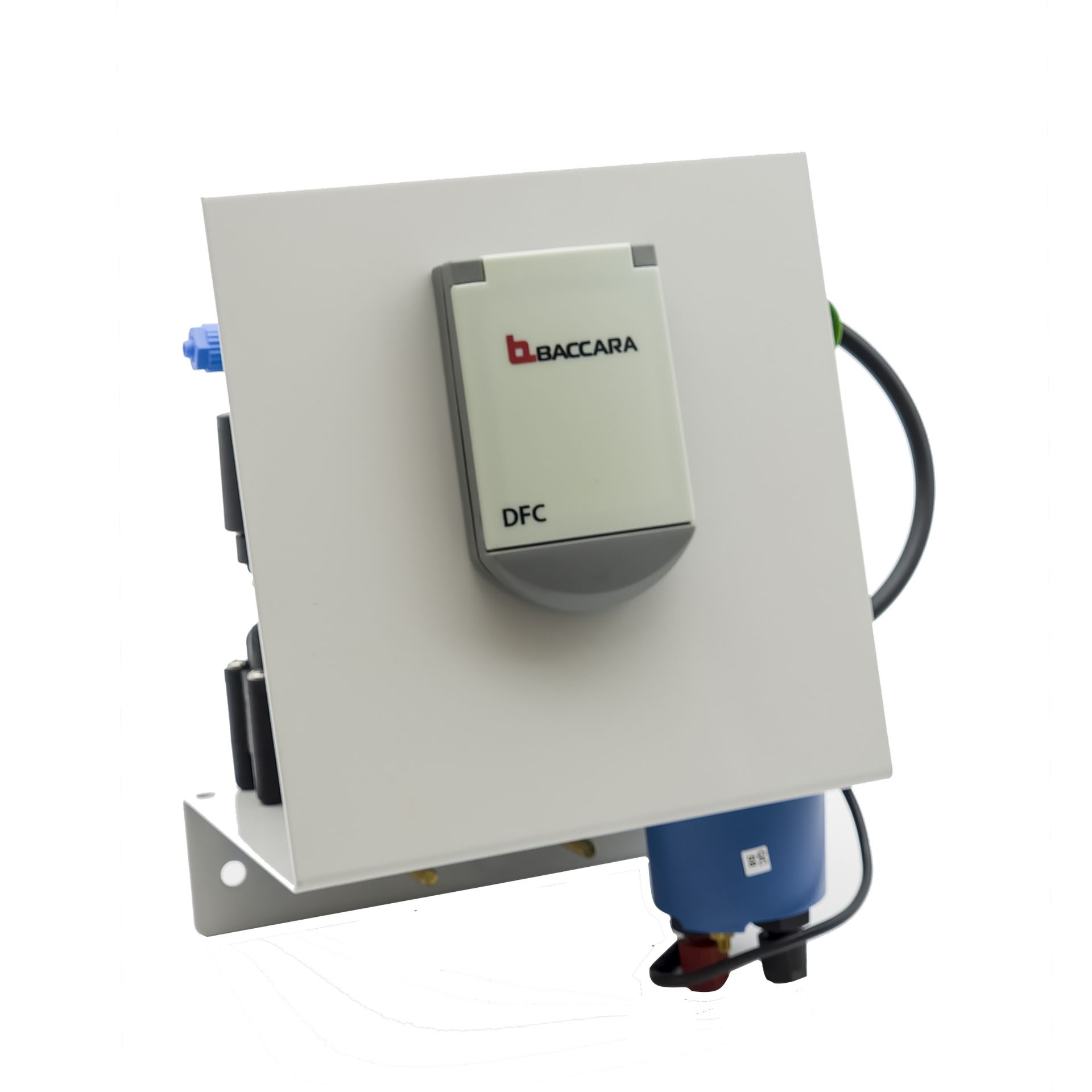

Differential Filtration Controller Set with 3 Station Normally Closed Galit 4Ω Latch + Sensor + Panel

Manufacturer: Baccara

Be the first to review this product

Operating temp: -10° to 60°C Option: Can change default factory settings Battery: 9V alkaline battery included Mounting: Horizontal, vertical, wall mounting Filtration backwash controller 1-3 stations Backwash by DP or time interval The assembly includes controller and differential pressure sensor Mounting bracket optional

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

Technical Data

Controller Set \| Supplied with	DFC controller, suitable for DC only, and one analog sensor
Mechanical	• Operating temperature : -10ºC to 60ºC • Outdoor UV protection • Front panel cover protection • "H" proof pressure : 14 bar (203 PSI) • "H" pressure must be ≥ "L" pressure
Electrical	DC units are powered by single 9V alkaline battery; use best quality to ensure at least one year's autonomous operation • Back-up memory • Low battery warning • Power saving LCD
Mounting	• Pressure ports 1/8" BSP/NPT (male) • High pressure port is marked by the letter "H" on the housing • Connect high pressure before low pressure • Disconnect low pressure before high pressure Controller : • Directly on a 28mm diameter solenoid in horizontal or vertical position with adaptor • Wall mounting with four screws • Accessories provided \| Sensor : 2" (52 mm diameter)
Software	See 'Programming key features' table
Options	Option to change default factory settings
Standard protection class	• IP66 \| Dust and watertight
Solenoid	G75-A, GALIT Latch 4Ω, G75-A3P 1Ω
