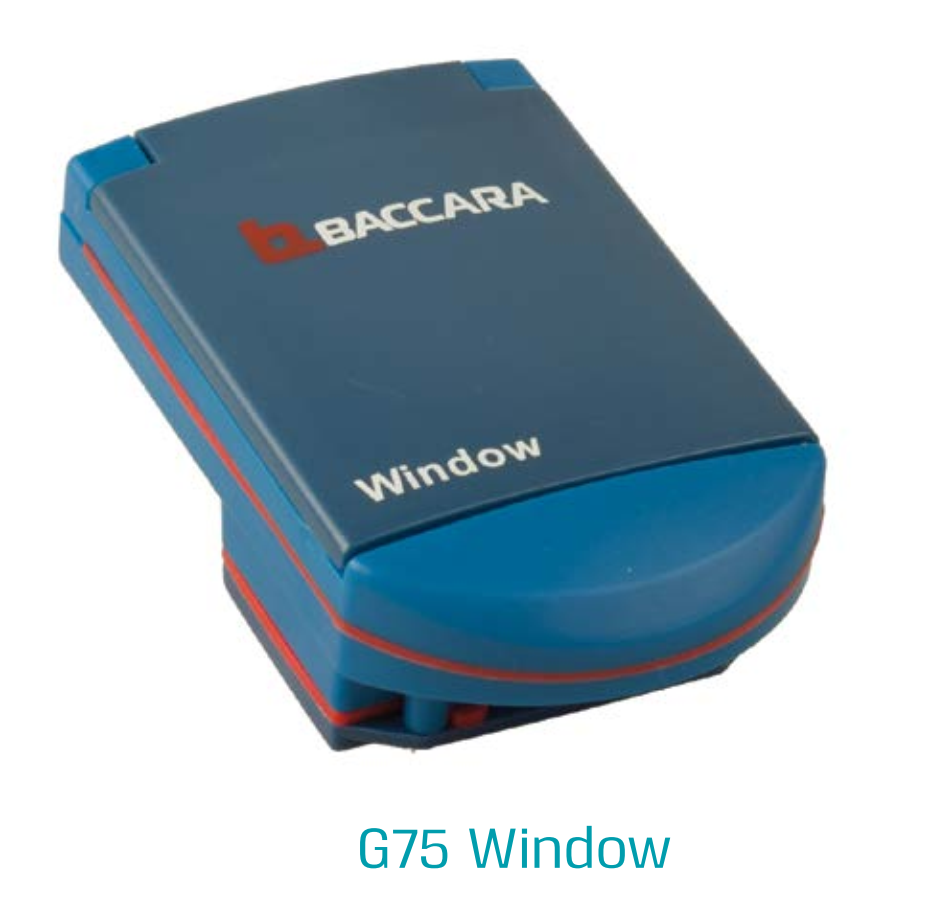

    G75-C-1W | Irrigation Window Controller

    Manufacturer: Baccara
    Be the first to review this product
    Operating Temp.
    :
    -10° - 60° C
    Options
    :
    Solar panel, charger, accurate clock
    Battery
    :
    9V alkaline battery included
    Mounting
    :
    Horizontal, vertical, wall mounting
    *

    Programming Key Features

    Set start and end hours
    Set On time (1 second to 12 hours)
    Set Off time (1 min to 12 hours)
    Day select
    OFF

    Technical Data

    Temperature range -10º to 60ºC
    Mounting Various mounting options :
    •     Directly on a 28mm diameter solenoid in
    horizontal or vertical position with adaptor
    • Wall mounting with four screws
    • Accessories provided
    Electrical Powered by single 9V alkaline battery; use
    best quality to ensure at least one year
    autonomous operation
    • Back-up memory
    • Low battery warning
    • Power saving LCD
    • Battery included
    Solenoid Both Window and Window+ controllers have
    identical programming
    •     Window : compatible with G75 4? latch
    operator
    •     Window+ : has a stronger output to
    operate G80 latch and GEM-SOL 'IL'
    latch coils
    Valve • Window : can operate any valve equipped
    with 3/4" UNEF solenoid cavity (Richdel    ®
    type)
    •     Window+ : only with Baccara latch valve
    Software • 24 hours real time clock
    • See 'Programming key features' table
    Options • Solar panel
    • Charger
    • Accurate clock (low time drift)
    Standard / Certification CE
    Standard protection class • Dust and watertight
    • IP67 and NEMA 4X

    Baccara-G75-C-1-Irrigation-Window-Controller-dimensions
