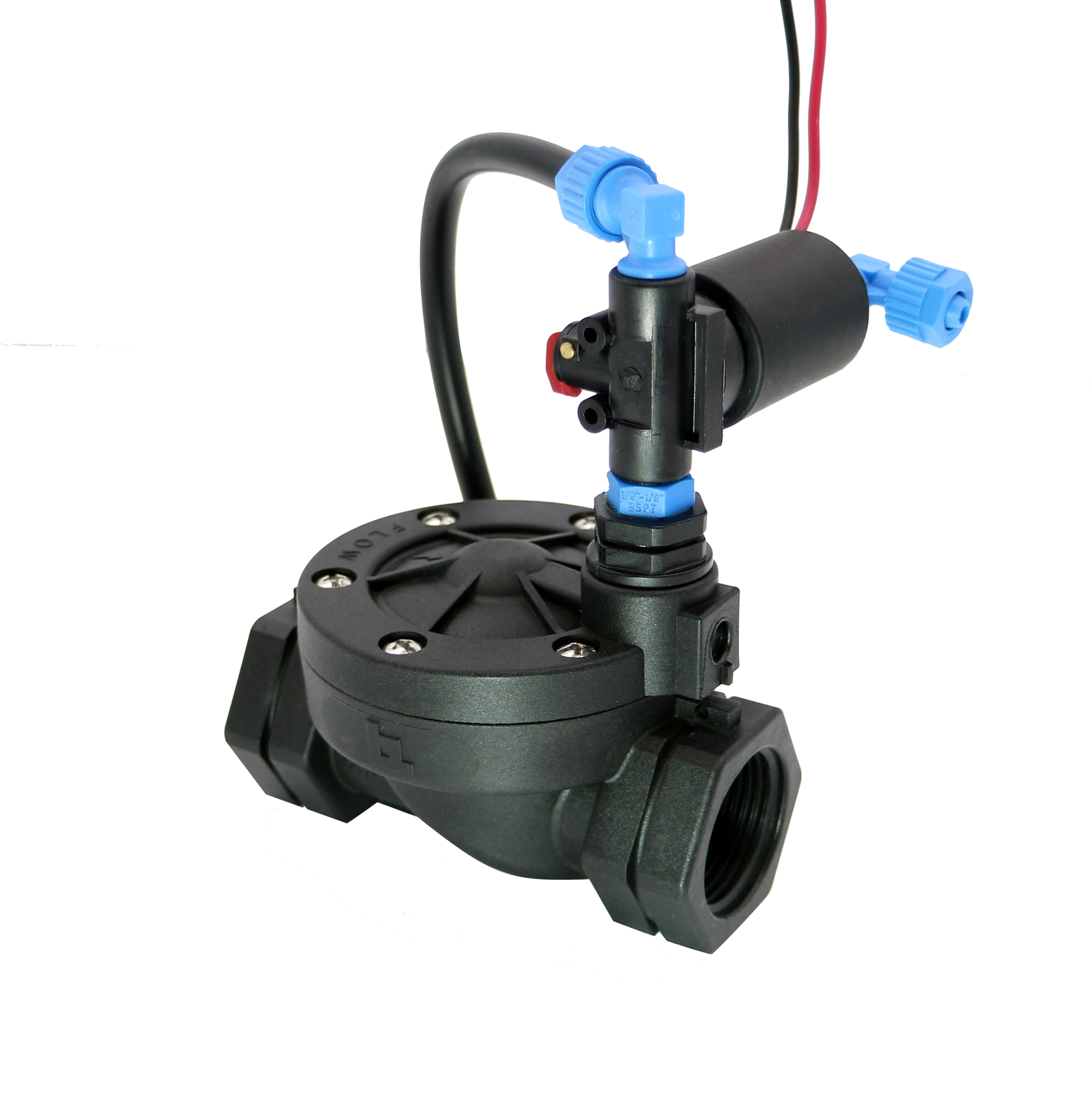

Baccara 3 Way External Solenoid Pilot Control Irrigation Valve-IrriFinder

Solenoid	Supplied with 3W 1.2mm G75 solenoid
Assembly	Supplied with finger filter and accessories

Technical Data

Function	2 Way NC
Ports size	3/4", 1", 1-1/2", 2" BSPT
Pressure range	0.3 to 10 bar
Temperature range	Fluid : 5ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC
Materials in contact with media	Manual override: Reinforced Nylon Main Valve: Reinforced Nylon Solenoid Operator: Stainless Steel AISI 300 & 400 series Diaphragm: NR Seals: NBR Spring: Stainless Steel AISI 300 series
Solenoid	• G75, 2W NC solenoids, all voltages. • AC, DC and Latch
Coil voltage	• Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal

Voltage & Power Consumption

	AC (W) 50 Hz	DC (W)
V	2	4.5
12	•	•
24	•	•
110	•	•

* Available Options

Voltage & Current Table

Solenoid	Voltage	Inrush [A]	Holding [A]
2W 50 Hz	+10% n-20% V	0.3	0.19
2W 60 Hz		0.2	0.14
3W 50/60 Hz		0.125	0.125
DC		4.5W

Coil Resistance vs Input Voltage Range

Resistance [?]	Suitable input voltage range [V]
4	6 - 9
9	12 - 14
12	14 - 16
23	18 - 21

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-head-loss

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-head-loss-for-fully-open-valve

3 Way External Solenoid Pilot Control Irrigation Valve NC | G75-SE Plumbing Diagram

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-plumbing-diagram
