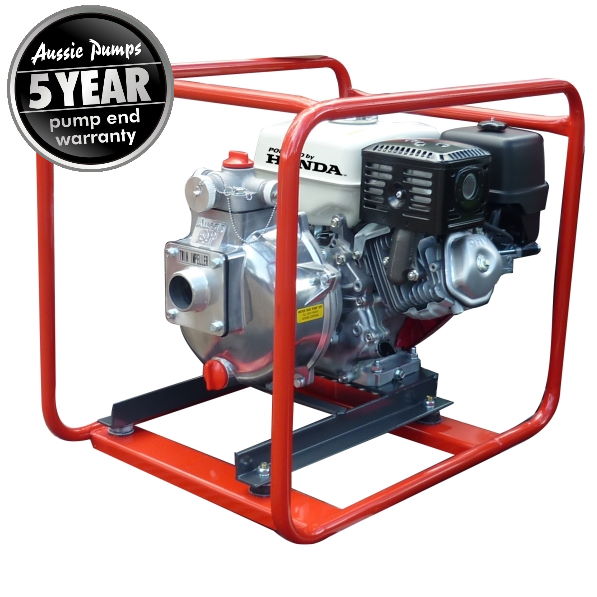

Aussie “Mr T” Twin Impeller Fire Pump (QPT-205SLT) with Honda 9 or 13 HP PETROL Engine
These fire pumps are designed for heavy duty and are suitable for firefighting duties and high pressure wash downs of equipment or farmyards. The pumps have a discharge with three outlets for multiple fire hoses.
This series has a quality wet end that is capable of larger flows than normal by using an open style impellor. Cast iron internals make this hard to beat. Fully replaceable suction and discharge ports, along with a full roll frame make this an excellent unit for the farm or rural home owner.
Aussie “Mr T” Twin Impeller Fire Pump (QPT-205SLT)
The Aussie “Mr T” is the final extension of development of the Aussie Fire Chief. It is a heavy duty twin impeller pump but with a difference!
The huge, closed vane dual impellers create a combination of high pressure and high flow that is unmatched, max head is 95 metres, max flow is 480 litres per minute.
The Aussie “Mr T” twin impeller range is available with 9HP or 13HP Honda four stroke engine power as standard equipment with electric start option available. “Mr T” is available with 2” x 2” ports, 2” x 3-way ports (1½”, 1”, 1”) or with 3” x 3”.
NEW Aussie “Mr T” 13 HP Twin Impeller Fire Pump
Electric start version is now available with long range fuel tank (18 litres) … Runs for up to 4.5 hours under load in extreme heat.
Aussie QP305SL 3” High Pressure Pump
The 3” version of the Aussie Fire Chief, the QP305SL is available in a wide range of options that provide flows of up to 510 litres per minute and heads as high as 68 metres.
Features:
- Five year pump end warranty
- Flow rates up to 500 l/min
- Heads up to 95m
- Fast self priming from 7.6 metres
- Lightweight portable
- Fluids must be clean and free from suspended abrasive particles
- Replaceable flanged suction port cover and discharge elbow
- Honda four stroke GX series petrol engines (3 year warranty). The Honda GP series engine carries a 1 year warranty
- Skids with rubber feet and carry handle as standard on Fire Chief & Fireman
- Full frame with anti vibration mounts on Mr T versions
- Single piece, heavy duty closed impeller
- Three way outlet (2” & 3” outlet options)
- Big 2 or 3 inch inlet
- Big belly body
- Three way outlet with metal caps with chains
- Big drain port
- Big integrated priming port
- Optional Viton seal and o-ring kit
- Larger water passages mean more water efficiency, lower fuel costs
Installation:
The pump is to be installed in a horizontal position for both fixed and portable plants. These self priming pumps require water in the pump case only for the initial pumping operation. No water is necessary for subsequent pumping when the casing contains water. For maximum efficiency make the piping as short and straight as possible.
* Colour and shape of pumps may vary.
* Fire hose kits are also available for this range of pumps.
| Model |
Mr T Twin impeller (QPT-205SLT) |
QP305SL |
3” Mr T Twin impeller |
| Engine |
Honda GX 270 or GX 390, 9 or 13hp, Recoil or Electric Start
(13HP electric start Mr T available with the option of an 18 litre long range fuel tank)
|
Honda GX 160 or GX 200, 5.5 or 6hp, Recoil or Electric Start,
Aussie Fire Chief with 3" inlet/outlet
Single Impeller
|
Honda GX 270 or GX 390, 9 or 13hp, Recoil or Electric Start
(13HP electric start Mr T available with the option of an 18 litre long range fuel tank)
|
| Fuel Consumption at 3600 rpm (lph) |
GX270: 2.5 - GX390: 3.7 |
GX160: 1.4 - GX200: 1.7 |
GX270: 2.5 - GX390: 3.7 |
| Suction Size |
2" (50mm) |
3" (75mm) |
3" (75mm) |
| Max Head (M) |
95 |
70 |
95 |
| Pump Body |
Marine grade aluminium |
Marine grade aluminium |
Marine grade aluminium |
|
Weight (Kg)
|
57 |
35 |
57 |
