Aussie Fire Fighting Pumps with Honda 5.5 HP Petrol Engine

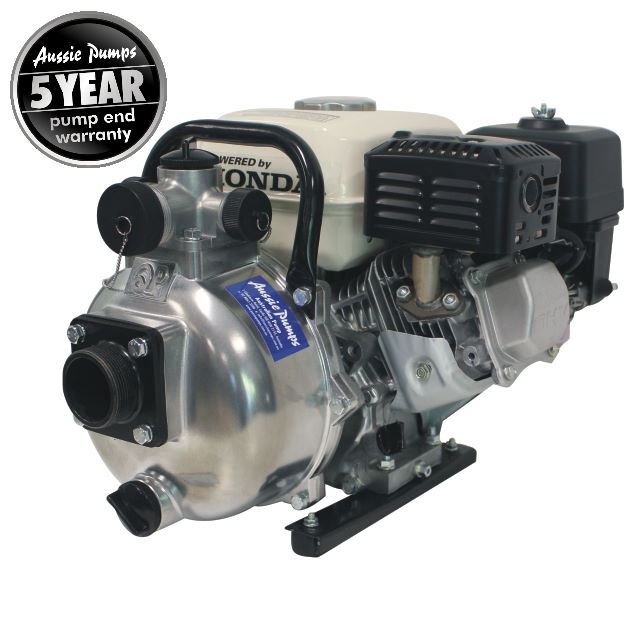

Honda 5.5 HP PETROL Engine Driven High Performance Fire Fighting Single Impeller Pumps

Honda GX160 5.5 HP Petrol Engine: 250 l/min water flow @ 40m head, perfect for small to medium size sprinklers!

These fire pumps are designed for heavy duty and are suitable for firefighting duties and high pressure wash downs of equipment or farmyards. The pumps have a discharge with three outlets for multiple fire hoses.

This series has a quality wet end that is capable of larger flows than normal by using an open style impellor. Cast iron internals make this hard to beat. Fully replaceable suction and discharge ports, along with a full roll frame make this an excellent unit for the farm or rural home owner.

The Aussie Fireman, Fire Chief and the Fire Captain fire pumps are regarded as the world’s finest lightweight portable high pressure pumps. The Fire Chief has won significant contracts both within Australia and in export markets

Aussie Fireman (QP-2S)

Taking it’s design principles from the Aussie Fire Chief, the Aussie Fireman is a smart choice for light use applications where the engine is not required to run continually for long periods. It uses a Honda GP series engine with 1 year engine warranty.

Aussie Fire Chief (QP205SE)

Designed to out-perform and out-feature all other portable fire fighting pumps, the Aussie Fire Chief offers significant quality features.
These include a huge 7½” diameter, one piece impeller that weighs 2½ times more than impellers in other brands. The big belly body provides large water passages allowing more water to get through the pump and significantly aiding performance.
The pump will produce flows of up to 450 litres per minute and heads as high as 75 metres. The basic engine is a genuine Honda 5.5HP four stroke engine with oil alert, low oil protection, cast iron cylinder bore in conformance with tough international environmental emission standards. The Fire Chief comes with anti vibration mounts, steel skids and handle as standard.

Aussie Fire Captain (QP205S)

The Fire Captain comes in the same configuration as the Aussie Fire Chief but with heavy duty steel roll frame instead of steel skids. Supplied with anti vibration mounts, the frame provides extra protection for the unit and added ease of transport.

Aussie Fire Captain Plus (QP205SL)

A big single impeller Aussie Fire Chief pump but with a 6.5HP Honda four stroke petrol engine, with oil alert and cast iron cylinder bore. Electric start options available on all models.
Standard equipment includes full heavy duty roll frame with pumps delivering up to 450 litres per minute flow, 75 metres head.

Features:

• Five year pump end warranty
• Flow rates up to 450 l/min
• Heads up to 75m
• Fast self priming from 7.6 metres
• Lightweight portable
• Fluids must be clean and free from suspended abrasive particles
• Replaceable flanged suction port cover and discharge elbow
• Honda four stroke GX series petrol engines (3 year warranty). The Honda GP series engine carries a 1 year warranty
• Skids with rubber feet and carry handle as standard on Fire Chief & Fireman
• Full frame with anti vibration mounts on Fire Captain & Mr T versions (option for Fire Chief)
• Single piece, heavy duty closed impeller
• Three way outlet (2” & 3” outlet options)
• Big 2 inch inlet
• Big belly body
• Three way outlet with metal caps with chains
• Big drain port
• Big integrated priming port
• Optional Viton seal and o-ring kit
• Larger water passages mean more water efficiency, lower fuel costs

 Installation:

The pump is to be installed in a horizontal position for both fixed and portable plants. These self priming pumps require water in the pump case only for the initial pumping operation. No water is necessary for subsequent pumping when the casing contains water. For maximum efficiency make the piping as short and straight as possible.

* Colour and shape of pumps may vary.

* Fire hose kits are also available for this range of pumps.
