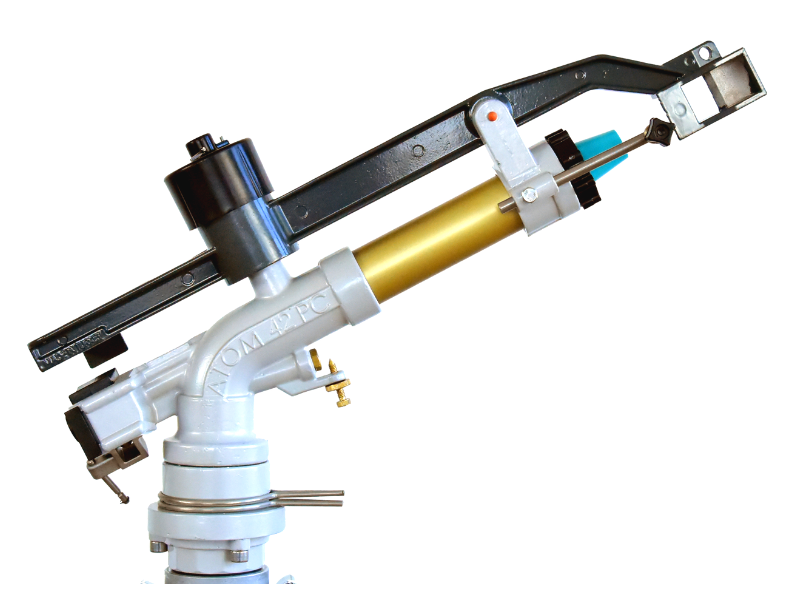

    Atom 42 Metal PC

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    High flow & long throw ranges, full circle and part circle impact irrigation sprinkler.


    Water Input
    :
    2" Female BSP

    Working Pressure
    :
    29 - 85 psi

    Water Flow
    :
    195 - 850 l/min

    Shooting Radius
    :
    22 - 44 m

    Free Nozzles
    :
    14, 16, 18, 20, 22, 24 mm

    Body Angle
    :
    28°

    Box Dimensions
    :
    55x34x12 cm

    Weight
    :
    3.5 kg

    Sprayers
    :
    2

    Material
    :
    Cast-Iron, Aluminium & Brass

    Made in
    :
    Turkey
    Manufacturer part number: Atom42PC

    DuCaR ATOM 42 PC Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

    Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

    • Comes with 14, 16, 18, 20, 22, 24 mm nozzles
    • Runs on pressure range between 29 to 85 psi
    • Full and part (angle-adjusted) circle irrigation
    • Irrigates up to 90m diameter!
    • Lays down 11 to 51 tons of water per hour
    • Dynamic or attached jet breakers
    • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
    • Replaceable nozzle ends
    • Great for any field crops and vegetables
    • Auto BRAKE system for keeping slow rotation speed on high pressure.
    • Full METAL Body and BRASS housing.



    Technical Specifications
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    14 .55 2 29 22 72 195 11.7 52 1520 0,38 7,7
    14 .55 3 44 28 92 239 14.3 63 2462 0,61 5,8
    14 .55 4 56 30 98 277 16.6 73 2826 0,70 5,9
    14 .55 5 70 33 108 309 18.5 81 3419 0,84 5,4
    16 .63 2 29 24 79 247 14.8 65 1809 0,45 8,2
    16 .63 3 44 30 98 303 18.2 80 2826 0,70 6,4
    16 .63 4 56 33 108 351 21.0 92 3419 0,84 6,1
    16 .63 5 70 35 115 391 23.4 103 3847 0,95 6,1
    18 .71 3 44 30 98 378 22.7 100 2826 0,70 8,0
    18 .71 4 56 33 108 436 26.2 115 3419 0,84 7,7
    18 .71 5 70 36 118 487 29.2 129 4069 1.01 7,2
    20 .79 3 44 31 102 460 27.6 122 3018 0.75 9,1
    20 .79 4 56 35 115 532 31.9 140 3847 0.95 8,3
    20 .79 5 70 40 131 594 35.6 157 5024 1,24 7,1
    22 .86 4 56 39 128 680 40.8 180 4776 1,18 8,5
    22 .86 5 70 42 138 750 45 198 5539 1,37 8,1
    22 .86 6 85 44 144 817 49 216 6079 1,50 8,1
    24 .95 3 44 37 121 667 40 176 4299 1,06 9,3
    24 .95 4 56 40 131 767 46 203 5024 1,24 9,2
    24 .95 5 70 44 144 850 51 225 6079 1,50 8,4



    Download Catalogue
