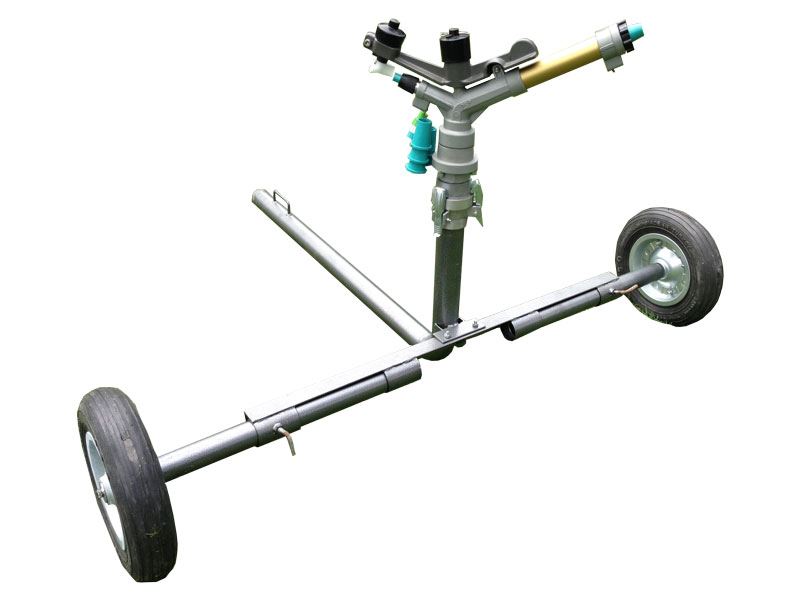

    Atom 42 Metal with 2 inch Wheeled Cart

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    High flow & long throw, full circle irrigation sprinkler with 2 inch inlet/outlet wheeled cart.


    Water Input
    :
    2" Female BSP

    Working Pressure
    :
    29 - 85 psi

    Water Flow
    :
    183 - 850 l/min

    Shooting Radius
    :
    24 - 47 m

    Free Nozzles
    :
    8 mm (Sec.) 12, 14, 16, 18, 20, 22 mm

    Body Angle
    :
    28°

    Sprayers
    :
    2

    Material
    :
    Iron Cast, Aluminium & Brass

    Made in
    :
    Turkey
    Manufacturer part number: Atom42w/Cart

    DuCaR ATOM 42 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

    Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

    • Comes with 12, 14, 16, 18, 20, 22 mm nozzles
    • 2 Trajectories
    • Runs on pressure range between 29 to 85 psi
    • Full and part (angle-adjusted) circle irrigation
    • Irrigates up to 90m diameter!
    • Lays down 11 to 51 tons of water per hour
    • Dynamic or attached jet breakers
    • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
    • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
    • Great for any field crops and vegetables
    • Auto BRAKE system for keeping slow rotation speed on high pressure.
    • Full METAL Body and BRASS housing.

    Technical Specifications

    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    12 .47 2 29 24 79 183,3 11 48 1384 0,34 7,9
    12 .47 3 44 29 95 225 13,5 59 1962 0,48 6,9
    12 .47 4 56 31 102 258,3 15,5 68 2461 0,61 6,3
    14 .55 3 56 30 98 283,3 17 75 2461 0,61 6,9
    14 .55 4 70 31 102 325 19,5 86 2826 0,70 6,9
    14 .55 5 85 35 115 366,7 22 97 3215 0,79 6,8
    16 .62 3 56 32 105 350 21 92 2826 0,70 7,4
    16 .62 4 70 35 115 400 24 106 3419 0,84 7,0
    16 .62 5 85 39 125 450 27 119 3846 0,95 7,0
    18 .70 3 85 33 108 433,3 26 114 3017 0,75 8,6
    18 .70 4 85 36 118 508,3 30,5 134 3630 0,90 8,4
    18 .70 5 85 40 131 566,7 34 150 4298 1,06 7,9
    20 .78 3 85 35 115 500 30 132 3630 0,90 8,3
    20 .78 4 85 39 128 608,3 36,5 161 4298 1,06 8,5
    20 .78 5 85 43 141 666,7 40 176 5024 1,24 8,0
    22 .86 4 85 40 131 683,3 41 181 4298 1,06 9,5
    22 .86 5 85 44 144 766,7 46 203 5024 1,24 9,2
    22 .86 6 85 47 154 850 51 225 5805 1,43 8,8
