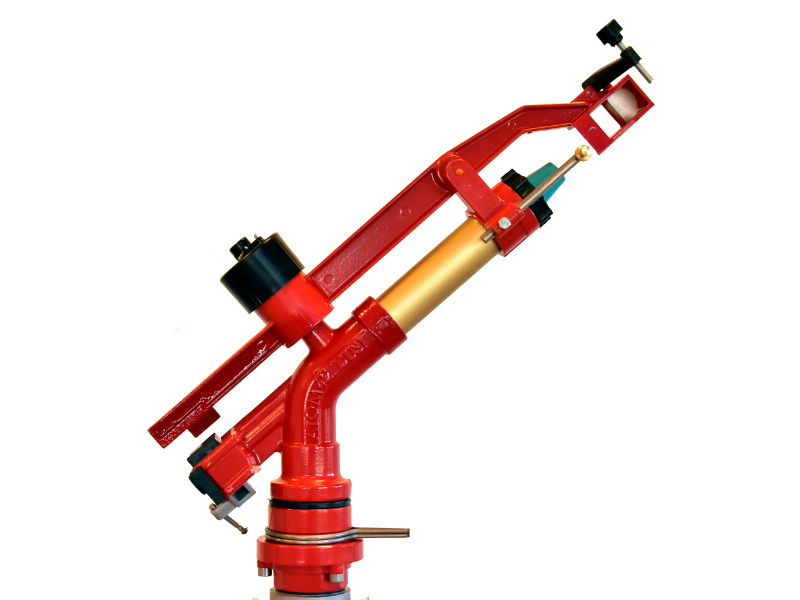

    Atom 42 Dust Suppression Impact Sprinkler

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    High flow & long throw ranges, full circle and part circle impact irrigation sprinkler.


    Water Input
    :
    2" Female BSP

    Working Pressure
    :
    44 - 85 psi

    Water Flow
    :
    208 - 767 l/min

    Shooting Radius
    :
    26 - 43 m

    Free Nozzles
    :
    14, 16, 18, 20, 22 mm

    Body Angle
    :
    43°

    Box Dimensions
    :
    55x34x12 cm

    Weight
    :
    3.5 kg

    Sprayers
    :
    1

    Material
    :
    Cast-Iron, Aluminium & Brass

    Made in
    :
    Turkey
    Manufacturer part number: Atom42DUST

    DuCaR ATOM 42 Dust Suppression Impact Sprinkler is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

    It wets and damps wide range of areas with minimum water consumption thanks to its special construction. With its transmission, it allows spread of water drops over the working site in a cloud of mist. It has equal rotation speed, forward and backward. With its stainless rotating bearings coated with special powder paint, Dustjet is protected against mild and medium degree chemical waters.

    Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

    • Comes with 14, 16, 18, 20, 22 mm nozzles
    • Runs on pressure range between 44 to 85 psi
    • Full and part (angle-adjusted) circle irrigation
    • Irrigates up to 85m diameter!
    • Lays down 11 to 51 tons of water per hour
    • Dynamic or attached jet breakers
    • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
    • Replaceable nozzle ends
    • Great for dust suppression
    • Auto BRAKE system for keeping slow rotation speed on high pressure.
    • Full METAL Body and BRASS housing.



    Technical Specifications
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler

    H (Maximum Height)

    		 DH
    mm inch atm psi m feet l/min m3/h G.P.M m feet m
    14 .55 3 44 26 85 208 12.5 55 10 33 14
    14 .55 4 56 28 92 253 15.2 67 12.5 41 17
    14 .55 5 70 30 98 283 17 75 14 46 18
    14 .55 6 85 32 105 317 19 84 15 49 20
    16 .62 3 44 29 95 283 17 75 10 33 16
    16 .62 4 56 32 105 325 19.5 86 13 43 18
    16 .62 5 70 33 108 367 22 97 14 48 19
    16 .62 6 85 36.5 120 400 24 106 15.5 51 22
    18 .70 4 56 34.5 113 433 26 114 13 43 19
    18 .70 5 70 37 121 467 28 123 15.3 50 21
    18 .70 6 85 38 125 517 31 136 16.7 55 23
    20 .78 3 44 31 102 450 27 119 10.5 34 19
    20 .78 4 56 35 115 517 31 136 13.5 44 20
    20 .78 5 70 37.5 123 583 35 154 15.5 51 22
    20 .88 6 85 40 131 633 38 167 17.2 56 25
    22 .86 3 44 35 115 542 32.5 143 11 36 22
    22 .86 4 56 38.5 126 633 38 167 14 46 24
    22 .86 5 70 41 134 700 42 185 16 52 26
    22 .86 6 85 43 141 767 46 203 18.5 61 28

    DuCaR atom 42 dust suppression impact sprinkler coverage
