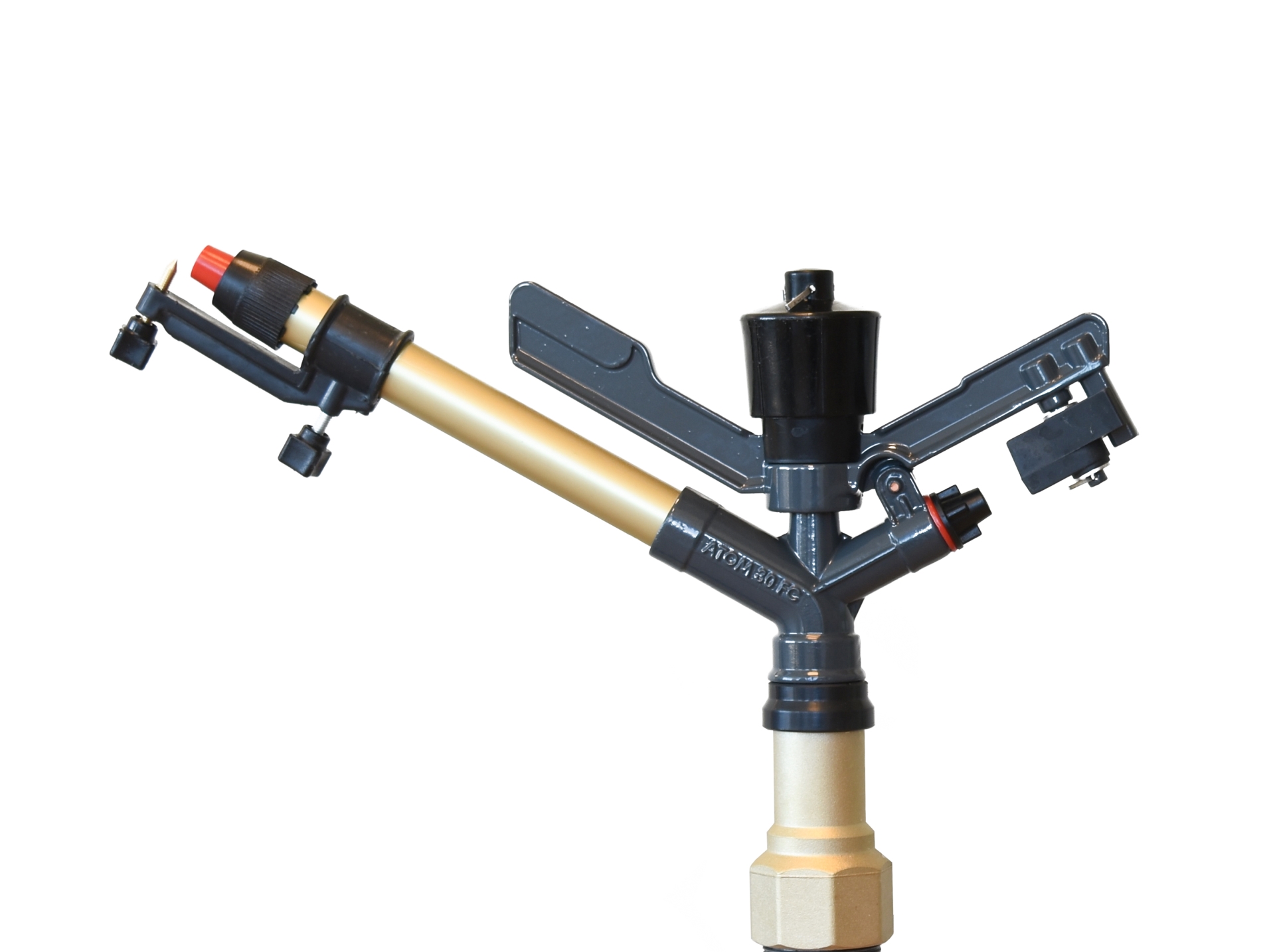

    Atom 30 FC Metal

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    Two trajectories, long throw, metal & brass, FULL circle, wide range irrigation sprinkler.


    Water Input
    :
    1.5" Female BSP

    Working Pressure
    :
    29 - 65 psi

    Water Flow
    :
    100 - 383 l/min

    Shooting Radius
    :
    17 - 30 m

    Free Nozzles
    :
    8, 10, 12, 14 mm

    Body Angle
    :
    27°

    Box Dimensions
    :
    40x25x6 cm

    Weight
    :
    1.5 kg

    Sprayers
    :
    2

    Material
    :
    Cast-Iron, Aluminium & Brass

    Made in
    :
    Turkey
    Manufacturer part number: Atom30-FC

    DuCaR Atom 30 FC Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

    Some unique benefits of DuCaR Atom 30 FC Metal sprinkler:

    • Comes with 4 different nozzles (8, 10, 12, 14 mm)
    • 2 Trajectories (Small one drives the sprinkler)
    • Runs on pressure range between 29 to 65 psi
    • Full circle irrigation
    • Irrigates up to 60m diameter!
    • Lays down 6 to 23 tons of water per hour
    • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
    • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
    • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
    • Great for any field crops and vegetables
    • Auto BRAKE system for keeping slow rotation speed on high pressure.
    • Full METAL Body and BRASS housing.

    Technical Specifications
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    8 0.31 2 29 17 56 100 6,00 26 907 0,22 6,6
    8 0.31 3 44 19 62 121 7,25 32 1134 0,28 6,4
    8 0.31 4 56 21 69 141,7 8,50 37 1385 0,34 6,1
    10 0.39 2 29 18 59 130 7,80 34 1017 0,25 7,7
    10 0.39 3 44 21 69 160 9,60 42 1385 0,34 6,9
    10 0.39 4 56 22,5 74 185 11,10 49 1590 0,39 7,0
    10 0.39 5 70 24,5 80 208,3 12,50 55 1885 0,47 6,6
    12 0.47 2 29 19 62 168,3 10,10 44 1134 0,28 8,9
    12 0.47 3 44 22 72 206,7 12,40 55 1520 0,38 8,2
    12 0.47 4 56 25 82 241,7 14,50 64 1963 0,48 7,4
    12 0.47 5 70 27 89 270 16,20 71 2289 0,57 7,1
    14 0.55 2 29 22 72 211,7 13,00 57 1520 0,38 8,4
    14 0.55 3 44 25 82 241,7 14,50 64 1963 0,48 7,4
    14 0.55 4 56 27 89 300 18,00 79 2289 0,57 7.9
