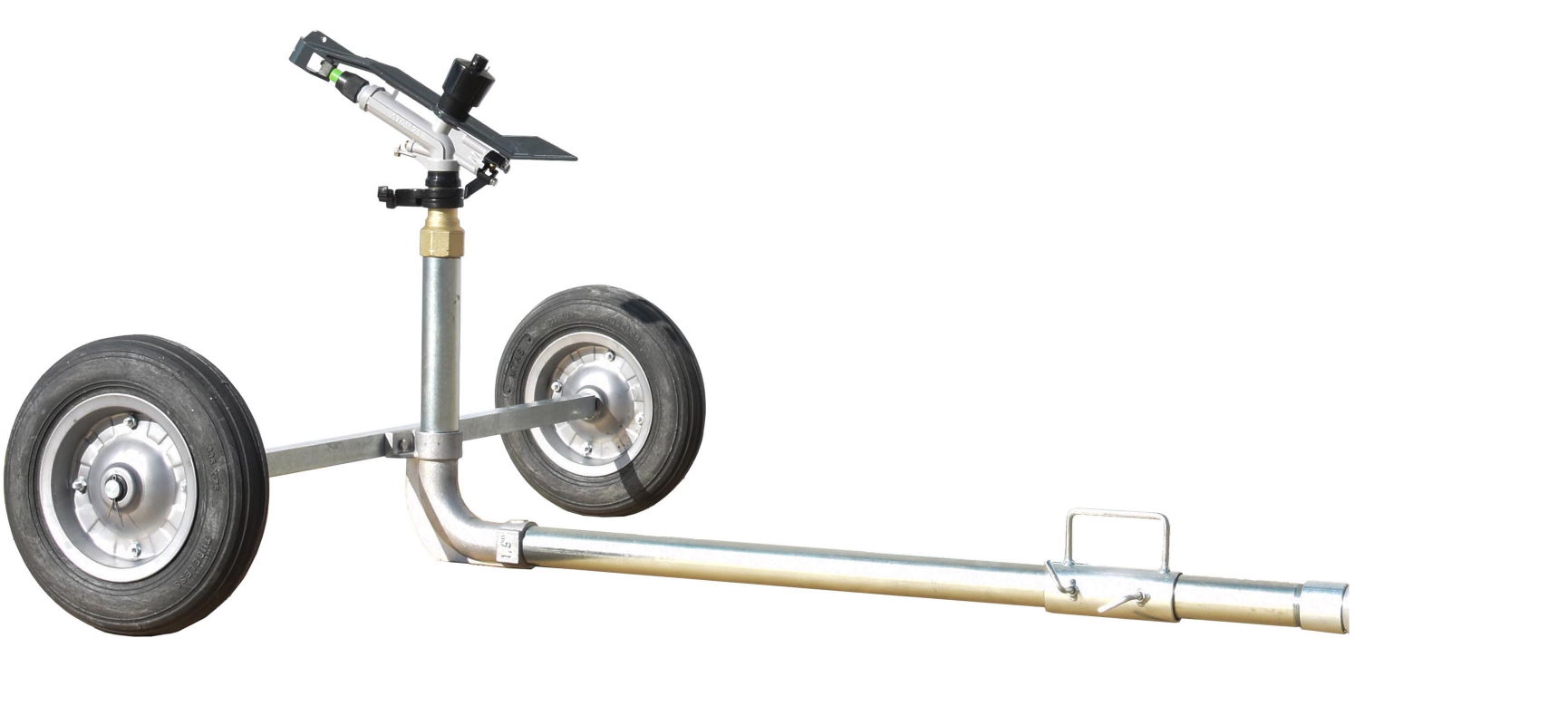

    Atom 28 with 1.5 inch wheeled cart

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    Portable, double-nozzle, metal & brass irrigation sprinkler with 1.5 inch inlet/outlet wheeled cart.


    Water Input
    :
    1.5" Female BSP

    Working Pressure
    :
    29 - 70 psi

    Water Flow
    :
    86 - 309 l/min

    Shooting Radius
    :
    19 - 28 m

    Free Nozzles
    :
    10, 12, 14 mm

    Body Angle
    :
    30°

    Sprayers
    :
    2

    Material
    :
    Iron Cast, Aluminium & Brass

    Made in
    :
    Turkey
    Manufacturer part number: Atom28 w/wheeled

    Ducar ATOM 28 Metal Sprinkler with 1.5 inch Wheeled Cart is a great set for low water pressure and volume irrigation systems. 86 l/m volume at 29 psi pressure will be enough to start operating the sprinklerwith two nozzles. Heavy duty 1.5 inch inlet/outlet wheeled cart provides great mobility for perfect and easy irrigation.


    Some unique benefits of DuCaR ATOM 28 Metal sprinkler:

    • Comes with 3 different METAL nozzles (10, 12, 14 mm)
    • 2 Trajectories
    • Runs on pressure range between 91 to 70 psi
    • Full and part (angle-adjusted) circle irrigation
    • Irrigates up to 56m diameter
    • Lays down 6.5 to 18.8 tons of water per hour
    • Dynamic or attached jet breakers
    • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
    • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
    • Great for any field crops and vegetables
    • Auto BRAKE system for keeping slow rotation speed on high pressure.
    • Full METAL Body and BRASS housing.

    Technical Specifications
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
    10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
    10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
    10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
    12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
    12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
    12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
    12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
    14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
    14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
    14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
    14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
