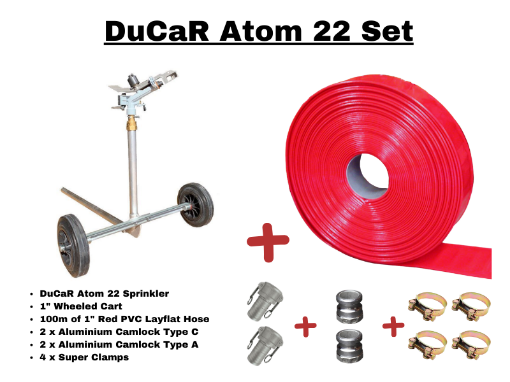

    Atom 22 with 1 inch Wheeled Cart, Hose, and Fittings

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    Portable impact, part circle sprinkler with 1" wheeled cart. Perfect for residential and hobby farm irrigation.


    Water Input
    :
    1" Female BSP

    Working Pressure
    :
    21 - 56 psi

    Water Flow
    :
    46 - 144 l/min

    Shooting Radius
    :
    15 - 21 m

    Free Nozzles
    :
    6, 8, 10 mm

    Body Angle
    :
    30°

    Sprayers
    :
    2

    Material
    :
    Plastic & Aluminium

    Housing
    :
    Brass

    Made in
    :
    Turkey
    Manufacturer part number: Atom22-SET

    DuCaR ATOM 22 is the introductory model of our low-mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

    Some unique benefits of DuCaR ATOM 22 Sprinkler:

    • Comes with 3 different nozzles (6 mm, 8 mm, 10mm)
    • Runs on pressure range between 21 to 56 psi
    • Full and part (angle-adjusted) circle irrigation
    • Irrigates up to 42m diameter
    • Lays down 2.5 to 8.6 tons of water per hour
    • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
    • Unlike the other impact type sprinklers, it does not have a jet breaker attached to nozzle, so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused
    • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
    • Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
    • Great for any field crops and vegetables
    • Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel

    1" Wheeled Cart:

    • Turbulence stopping special blades
    • Commercial grade aluminum pipe
    • Width: 60 cm
    • Height: 36 cm
    • Length: 64 cm



    Technical Specifications of Atom 22 Sprinkler Head

    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    6 0.236 2 29 15.0 49 46 2.8 12 707 0.17 4.0
    6 0.236 3 44 17.0 56 56 3.4 15 907 0.22 3.7
    6 0,236 4 56 18.0 59 65 3.9 17 1017 0.25 3.8
    8 0.31 1.5 29 14.5 48 61 3.7 16 660 0.16 5.6
    8 0.31 2 44 16.5 54 71 4.3 19 855 0.21 5.0
    8 0.31 3 56 18.0 59 86 5.2 23 1017 0.25 5.1
    8 0.31 4 70 19.0 62 100 6.0 26 1134 0.28 5.3
    10 0.39 2 29 17.0 56 102 6.1 27 907 0.22 6.7
    10 0.39 3 44 19.5 64 124 7.4 33 1194 0.29 6.2
    10 0.39 4 56 21.0 69 144 8.6 38 1385 0.34 6.2
