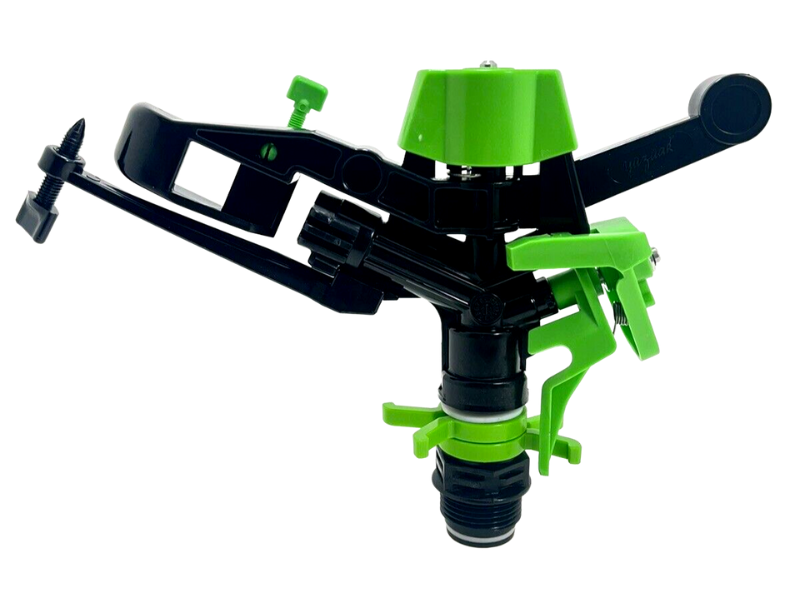

    Atom 14 Part Circle

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

    UV resistant, 3/4" male threaded inlet, plastic impact sprinkler. Suitable for residential irrigation.


    Water Input
    :
    3/4" Male BSP

    Working Pressure
    :
    29 - 64 psi

    Water Flow
    :
    15 - 32.5 l/min

    Shooting Radius
    :
    13 - 16 m

    Nozzles
    :
    4, 4.5, 5 mm

    Body Angle
    :
    25°

    Weight
    :
    0.20 kg

    Operation
    :
    Part or Full Circle

    Material
    :
    Plastic

    Made in
    :
    Turkey
    Manufacturer part number: Atom14PC

    The atom 14 PC low flow sprinkler with 3/4" male bsp threaded inlet. It is a new type of  sprinkler designed for low flow rate applications and operates over a full 360 degrees or your desired angle. It was developed as a result of 3-years long R&D activities to increase the efficiency and life span of existing sprinklers in the market. TheDuCaR Atom 14 sprinkler has a special body construction which has 250 body angle. It minimizes wind effect during the operation and it is made of 100% original raw material and engineering plastics that dramatically eliminates adverse effects of water and sun to serve for long years under Australian weather conditions.

    Comes with 4, 4.5, and 5 mm nozzles.

    The Atom 14 FC sprinkler is commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers. However, it can be a perfect choice for small hobby gardens.



    Technical Specifications (DuCaR Atom 14 PC)
    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
    4mm ● 2 29 13 43 15 0.90 4.0 531 0.13 1.7
    4mm ● 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
    4mm ● 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
    4mm ● 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
    4.5mm ● 2 29 13 43 17.5 1.05 4.6 531 0.13 2.0
    4.5mm ● 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
    4.5mm ● 3.0 43 13.5 48 21.5 1.29 5.7 660 0.16 2.0
    4.5mm ● 3.5 50 15 49 23.3 1.40 6.2 707 0.17 2.0
    5mm ● 2 29 14 46 22.5 1.35 5.9 615 0.15 2.2
    5mm ● 2.5 36 15 49 24.3 1.46 6.4 707 0.17 2.1
    5mm ● 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
    5mm ● 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1
    5mm ● 4.5 64 16.5 54 32.5 1.95 8.6 855 0.21 2.3
