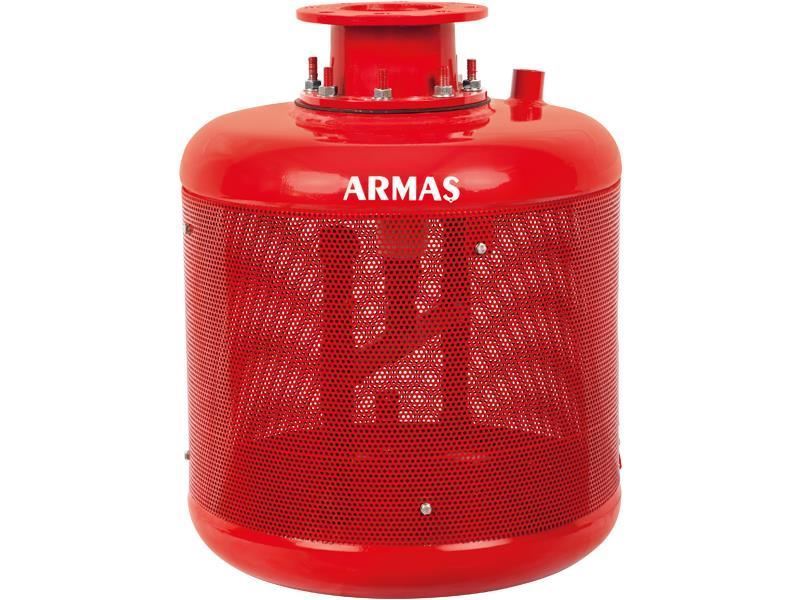

Self Cleaning Suction Filter

Manufacturer: Armas Valves & Filters

Min. Working Pressure	:	1.5 bar (22 psi)
By-pass Flow Rate	:	4 m³/h
Screen Size	:	5000 micron
Electrostatic coated body
Rotating Nozzles
Connection Type	:	Flange
Available Models	:	4", 6" , 8", 10", 12"
Made in	:	Turkey

Manufacturer part number: SF

* Size

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

ARMAS SUCTION FILTER

APPLICATIONS

Agricultural applications

FEATURES

Protection of pumps
Low head loss
Automatic self-cleaning system
Uninterrupted filtration during automatic self-cleaning
Low maintenance costs

Suction filter is designed to protect the pumps from debris and foreign matters. It is generally used in water sources containing algae, debris, and other heavy wastes. It is connected to pump suction and submerged into water (river, lake, reservoir, etc.)

OPERATING PRINCIPLE

Water is sucked by the pump passes through the strainer and debris is kept outside by the stainless steel screen. Rotating nozzles are fed with water taken from the pump exit. Water jets sprayed from the nozzles blow away the debris collected on the outer surface of the screen and thus the filter is cleaned.

Thus the pump is protected against clogging and failures. Pump efficiency increases and maintenance costs decrease.

Minimum working pressure: 1.5 bar (22 psi)
Suggested working pressure: 3-4 bar
By-pass flow rate: 4 m³/h (3"-4")
Electrostatic coated body
Rotating Nozzles
Flange type Connection
Electrostatic applied and oven-cured zinc-phosphate coating for anti-corrosion protection
Available models: 4", 6", 8"

Download Product Catalogue

Part List

	Part No	Part Name
	1	Screen and body
	2	Nozzle mechanism
	3	Upper Cover
	4	Check valve
	5	Connection head
	6	Lower cover

Available Models and Technical Specifications

	inch	mm	inch	mm	micron	mesh	m³/h	gpm	bar	psi	bar	psi	ºC	mm²
Model	Inlet Connection Flanged (D)		Return Line Connection (D1)		Filtration Degree		Flow Rate		Min. Working Pressure		Max. Working Pressure		Temp.	Filtration Area
SF-4	2"	100	1"	25	5000	3	75	330	1.5	22	10	145	60	1400
SF-6	6"	150	1"	25	5000	3	120	528	1.5	22	10	145	60	1800
SF-8	8"	200	1"	25	5000	3	180	792	1.5	22	10	145	60	2000
